8.2 Replacing components of the maintenance door
8.2.1 Replacing the screen
Warning
A screen lifetime is approx. 50 000 hours, or 6 years in continuous operation.
If the machine is constantly on, the screen could malfunctioned after approx. 6 years.
8.2.1.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.2.1.2 Replacement

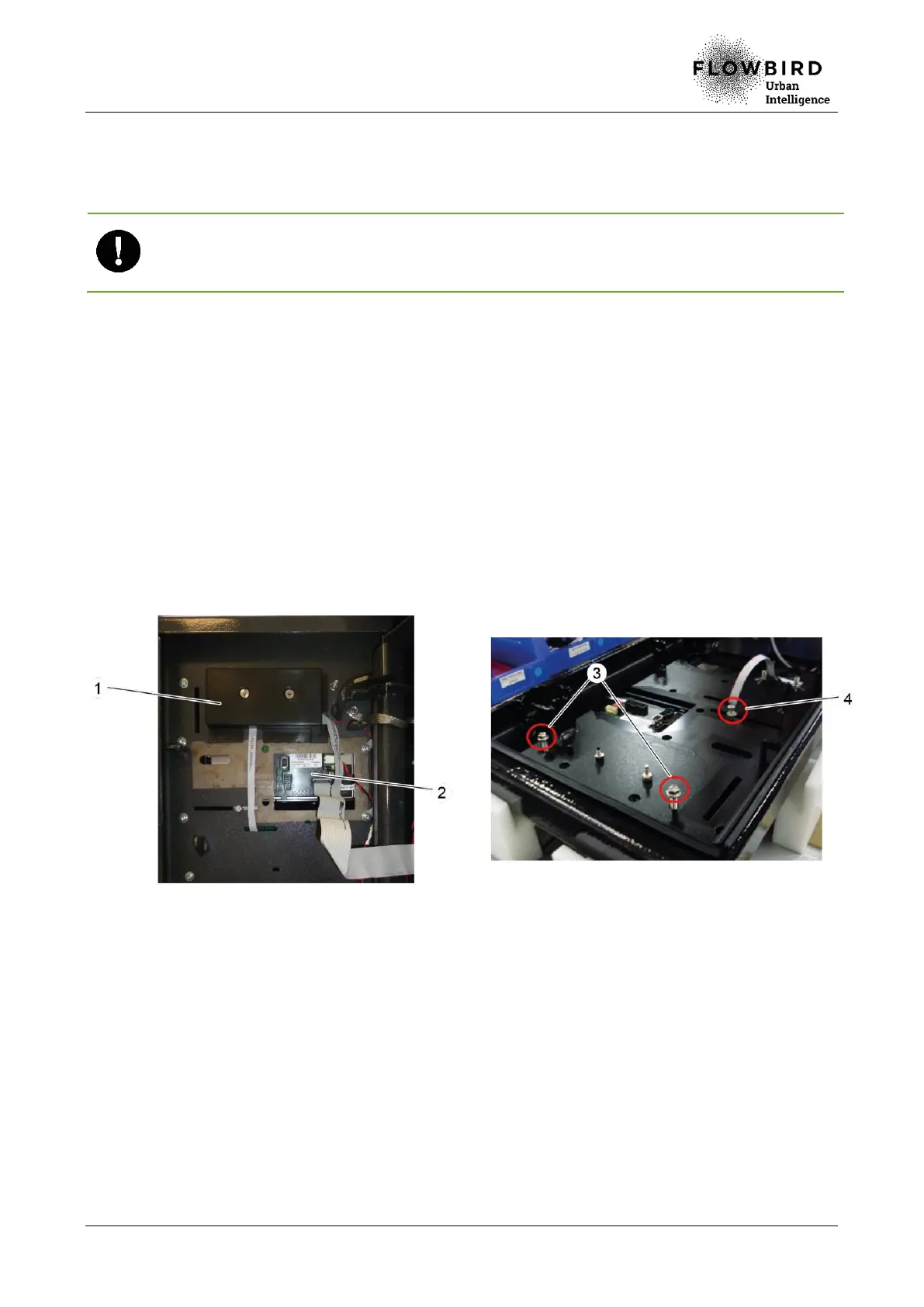

A. Remove the keypad card, the flat cable and its cover (1)
B. Disconnect the flat cable and the supply strand from the screen assembly (2).
C. Remove the upper front panel
D. Remove the screw (4) and the 2 nuts (3).
E. Remove the screen assembly from the outside of the door.
Replacing the screen
8.2.1.3 Installation
A. Repeat the previous steps in reverse.
