FLOWBIRD STRADA PAL - Replacing the Components of the Rapide Collection Compartment

STRADA PAL – MAINTENANCE MANUAL
102/149
8.5 Replacing the components of the Rapide collection
compartment
8.5.1 Replacing the collection rack
8.5.1.1 Preliminary operations
A. Ask a collection operator to perform a first collection.
B. Ask the collection operator to perform a second collection.
C. Remove the escrow
D. Unplug the LIN cable
E. Remove the collection trapdoor
F. Turn off the terminal
8.5.1.2 Replacement
A. Cut the plastic ties that hold the collection rack cables.

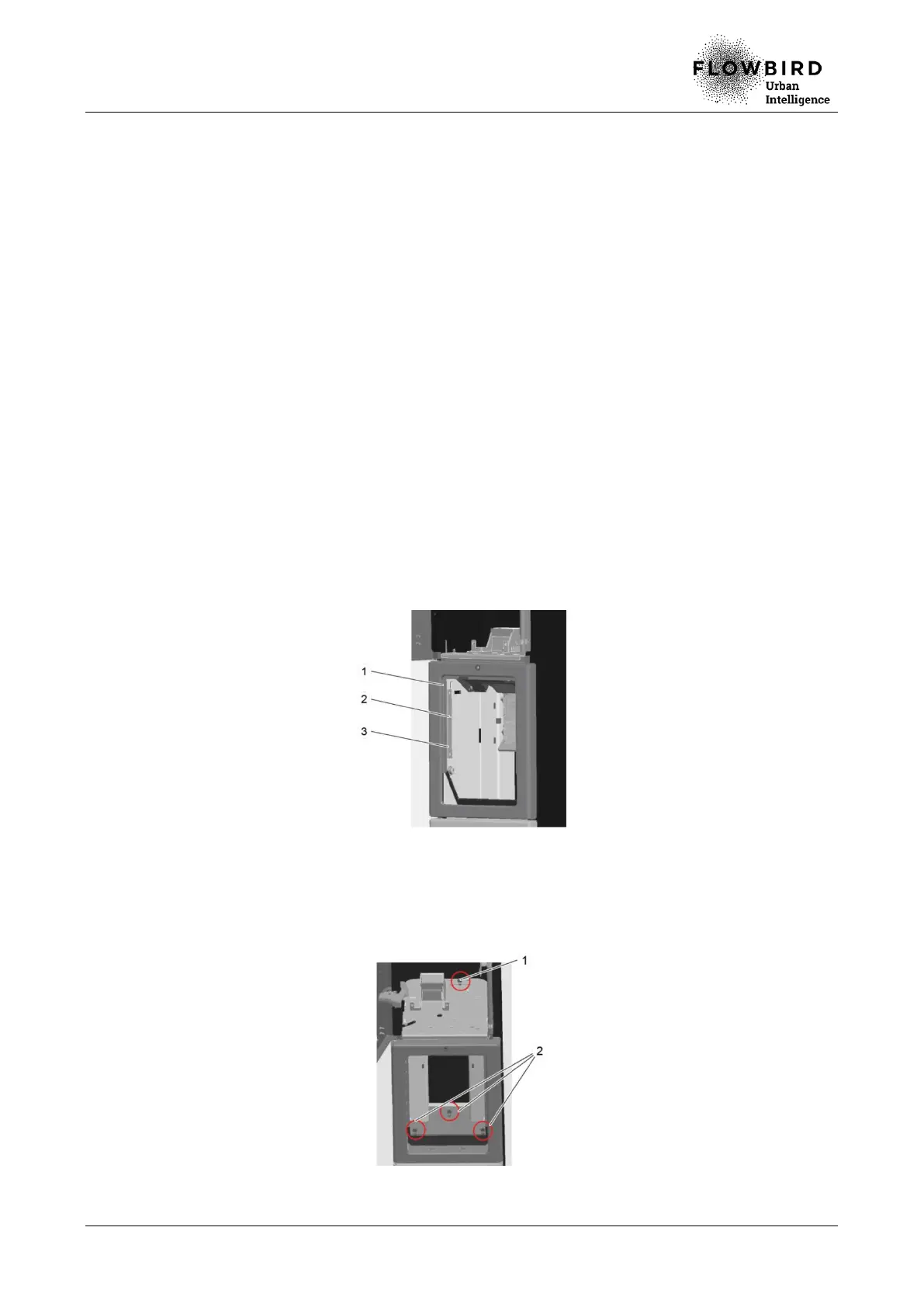

B. Loosen the 2 screws (2) that hold the 2 bolts (3) of the collection rack (1).
C. Lift and remove the 2 bolts (2).
Replacing the collection rack (1/3)
D. Loosen the 3 screws (2) that hold the lower part of the collection rack.
E. Loosen the screw (1) that holds the upper part of the collection rack (accessible
from the maintenance compartment).
Replacing the collection rack (2/3)
