STRADA PAL – MAINTENANCE MANUAL
51/149
8.2.2 Replacing the protective glass
8.2.2.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.2.2.2 Replacement
A. Disassemble the equipped upper front panel

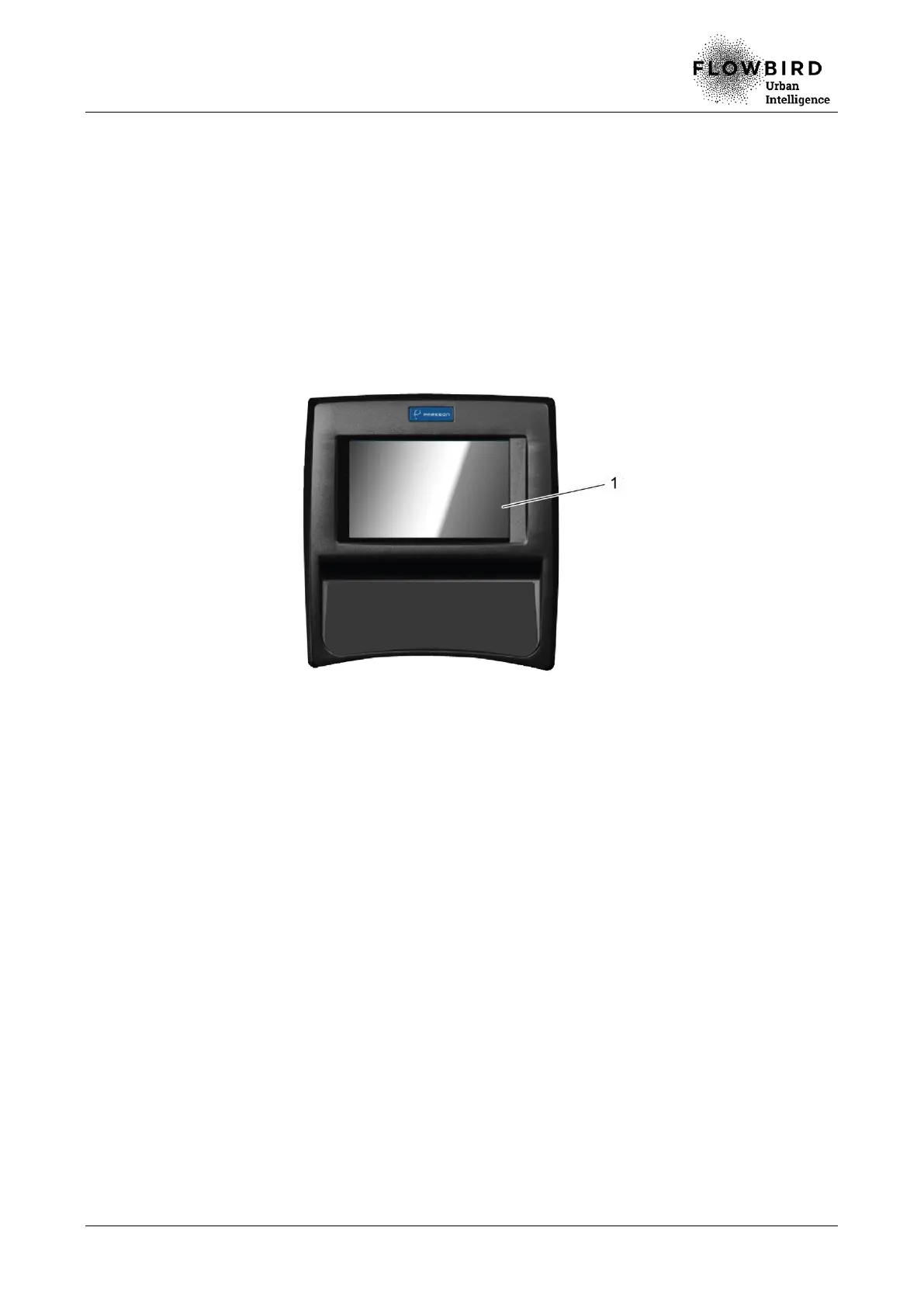

B. Remove the protective glass (1) from its location in the equipped upper front panel.
Replacing the protective glass
8.2.2.3 Installation
A. Repeat the previous steps in reverse.
8.2.2.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
