8.6.2 Replacing the collection drawer
8.6.2.1 Preliminary operations
A. Ask a collection operator to perform a collection.
B. Turn off the terminal
8.6.2.2 Replacement
A. Insert the collection key (1) alone in the collection drawer (2).
B. Turn the collection key.
C. Pull the drawer by lifting it.

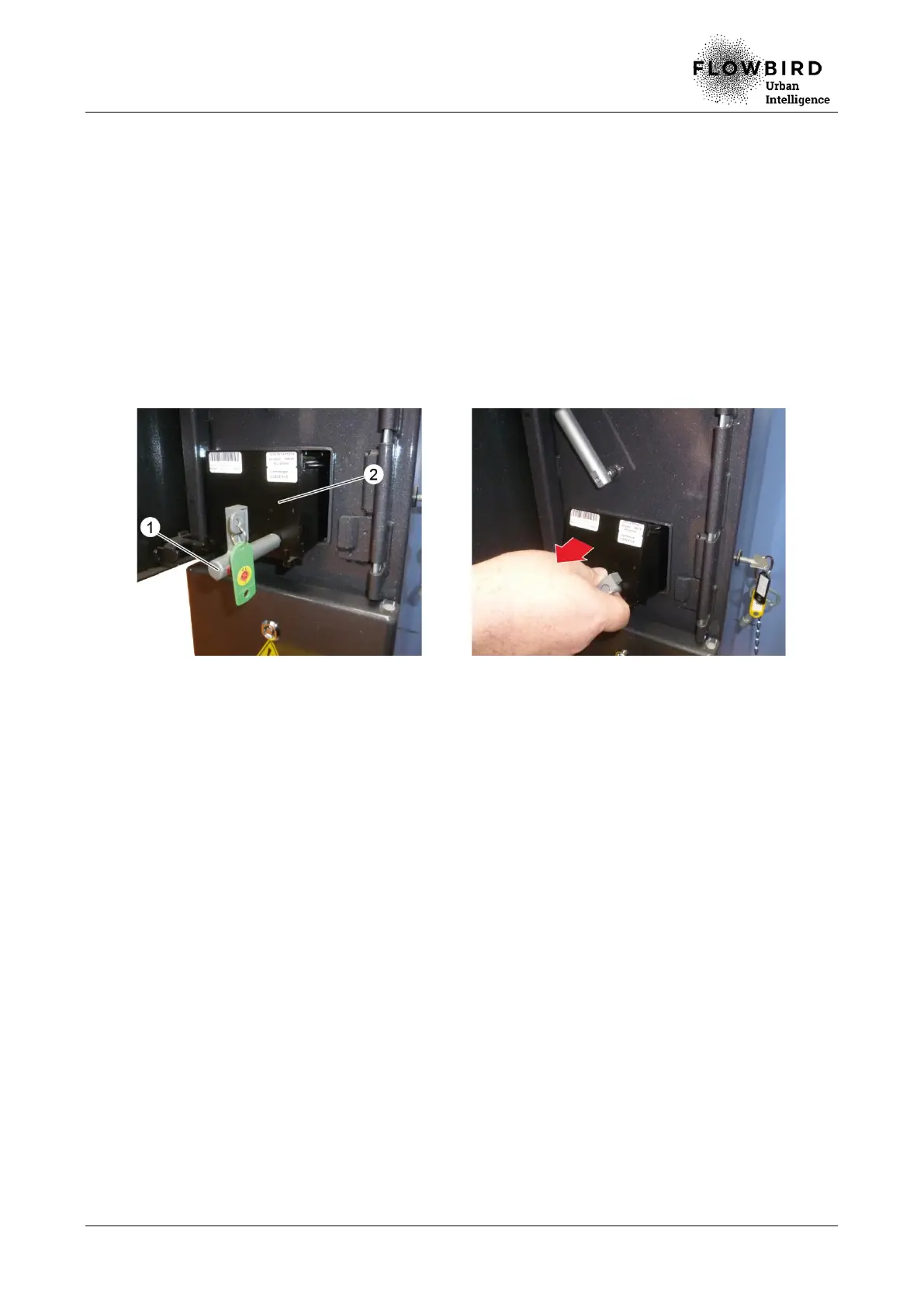

Replacing the collection drawer
8.6.2.3 Installation
A. Repeat the previous steps in reverse.
8.6.2.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
