STRADA PAL – MAINTENANCE MANUAL
119/149

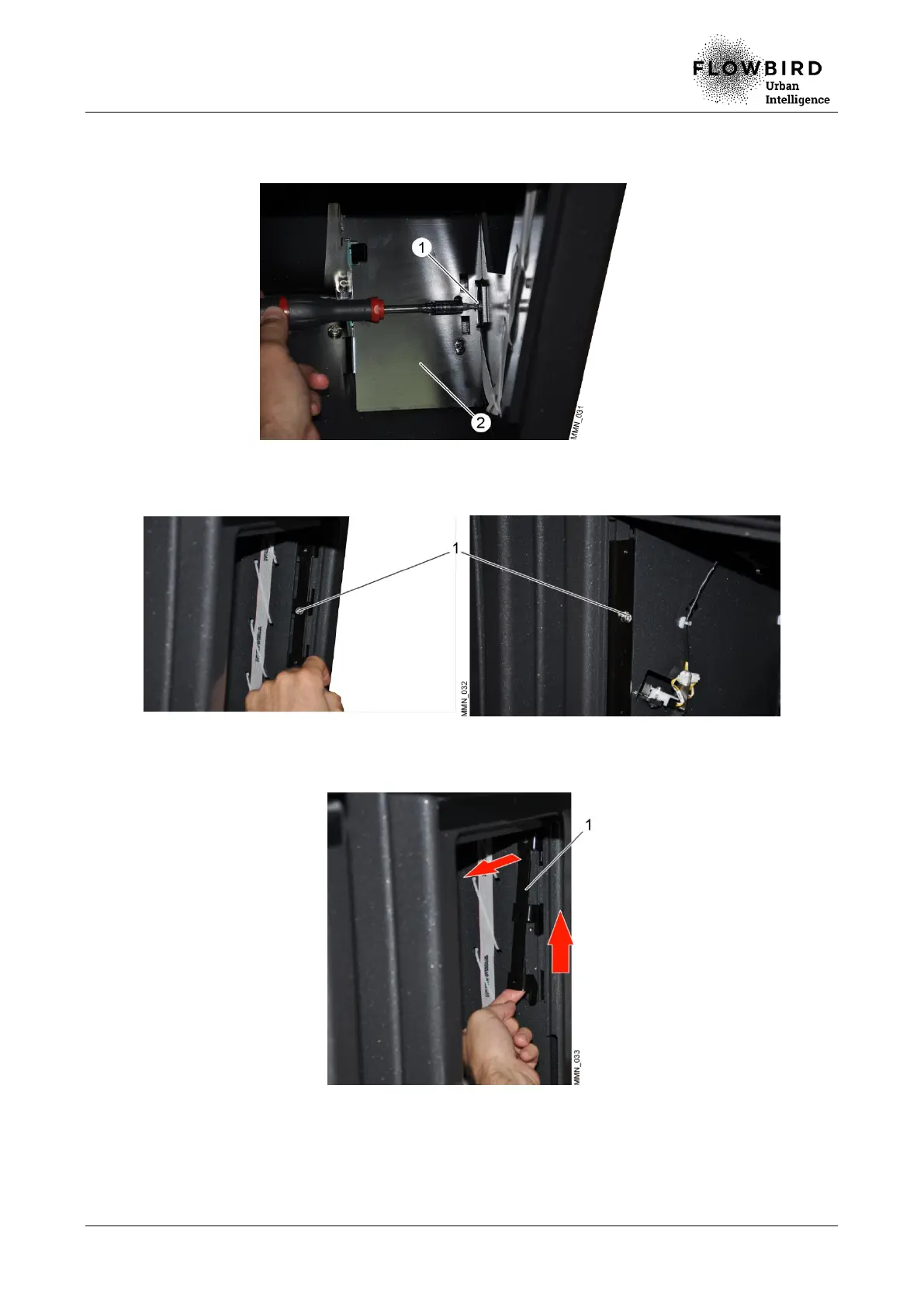

D. Remove the screw (1).
E. Remove the cover (2) of the e-lock assembly.
Replacing the collection rack (3/7)
F. Remove the 2 side screws (1).
Replacing the collection rack (4/7)
G. Slide the bolt to the top then remove it.
Replacing the collection rack (5/7)
H. Loosen the 3 screws (1) from the bottom and the screw (2) at the bottom of the
duct.
To Next Page
