STRADA PAL – MAINTENANCE MANUAL
38/149
7.5.2.3 Replacing the floor fixation compartment battery
A. Open the trapdoor of the floor fixation compartment

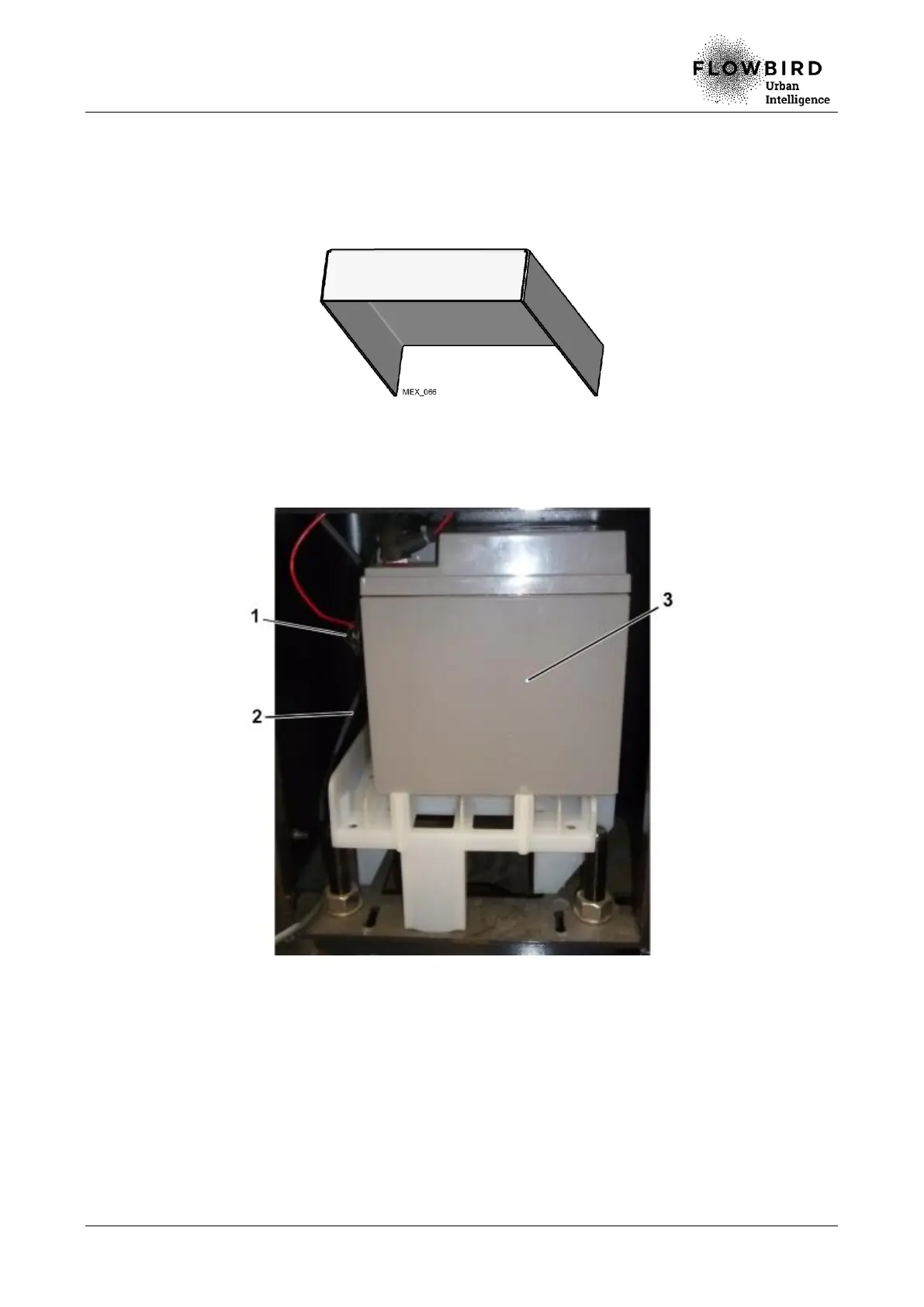

B. Remove the protective cover from the battery located in the floor fixation
compartment.
C. Disconnect the adapter strand (1) from the second battery strand (2).
D. Remove the battery (3) equipped with the adapter strand (1).
Disconnecting the strands
7.5.2.4 Installing the floor fixation compartment battery
Install the new and charged battery, equipped with an adapter strand, orienting it A.
so that the strand is on the left.
Connect the adapter strand of the second solar battery to the second solar B.
battery strand located in the floor fixation compartment.
Put the protective cover back on the battery by inserting the strands through the C.
open side at the back of the cover.
