STRADA PAL – MAINTENANCE MANUAL
63/149
8.2.11 Replacing the ticket bowl (Rapide collection)
8.2.11.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.2.11.2 Replacement
A. Remove the cable from the e-lock.
B. Disconnect the cable.

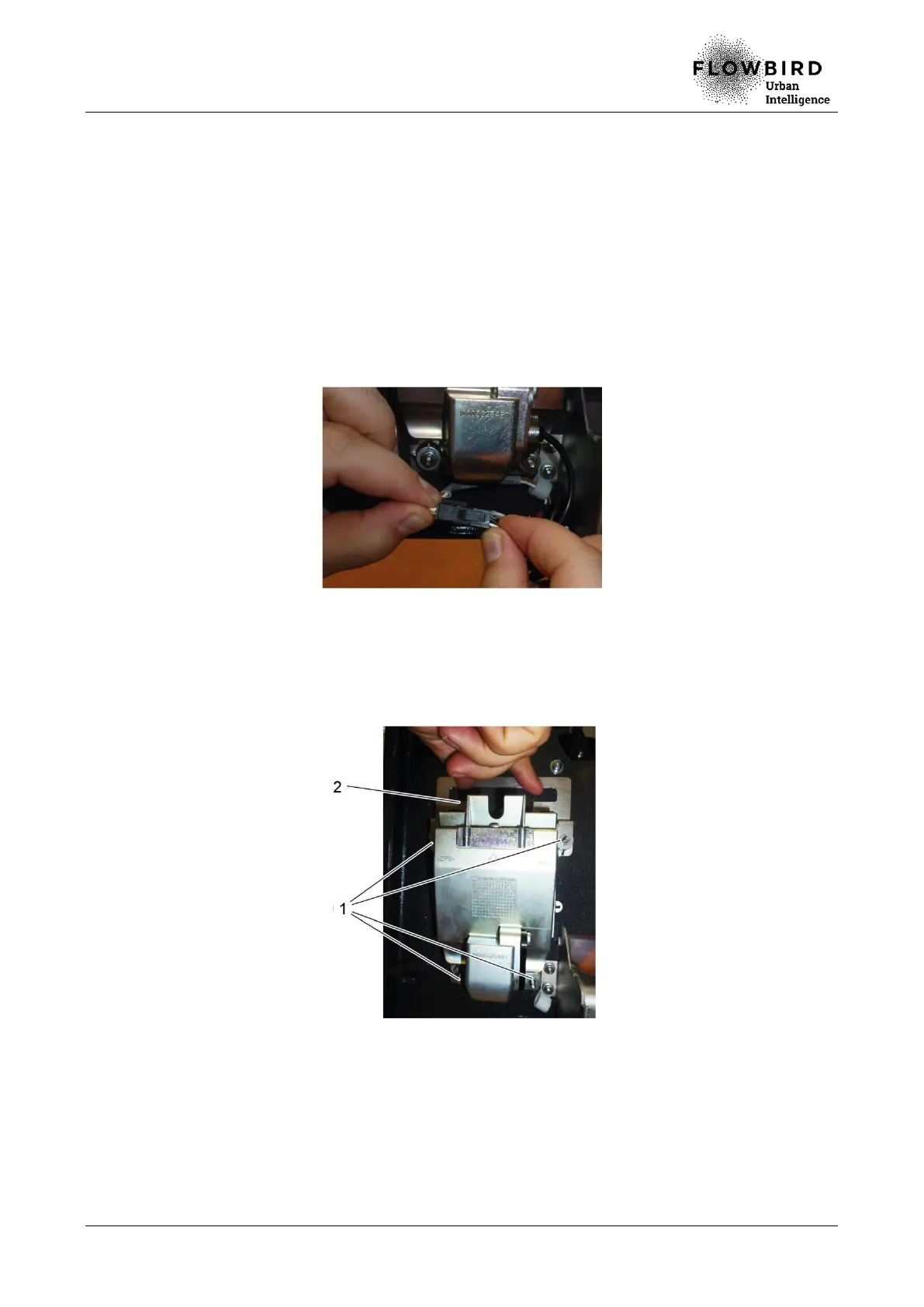

Disconnecting the e-lock
C. Remove the 4 nuts (1).
D. Remove the stop (2).
E. Remove the ticket bowl.
Replacing the ticket bowl
