STRADA PAL – MAINTENANCE MANUAL
65/149
8.2.12 Replacing the ticket bowl (Transfer collection)
8.2.12.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.2.12.2 Replacement
A. Remove the cable from the e-lock.
B. Disconnect the cable.
C. Remove the 4 nuts (1).
D. Remove the stop (2).
E. Remove the ticket bowl.

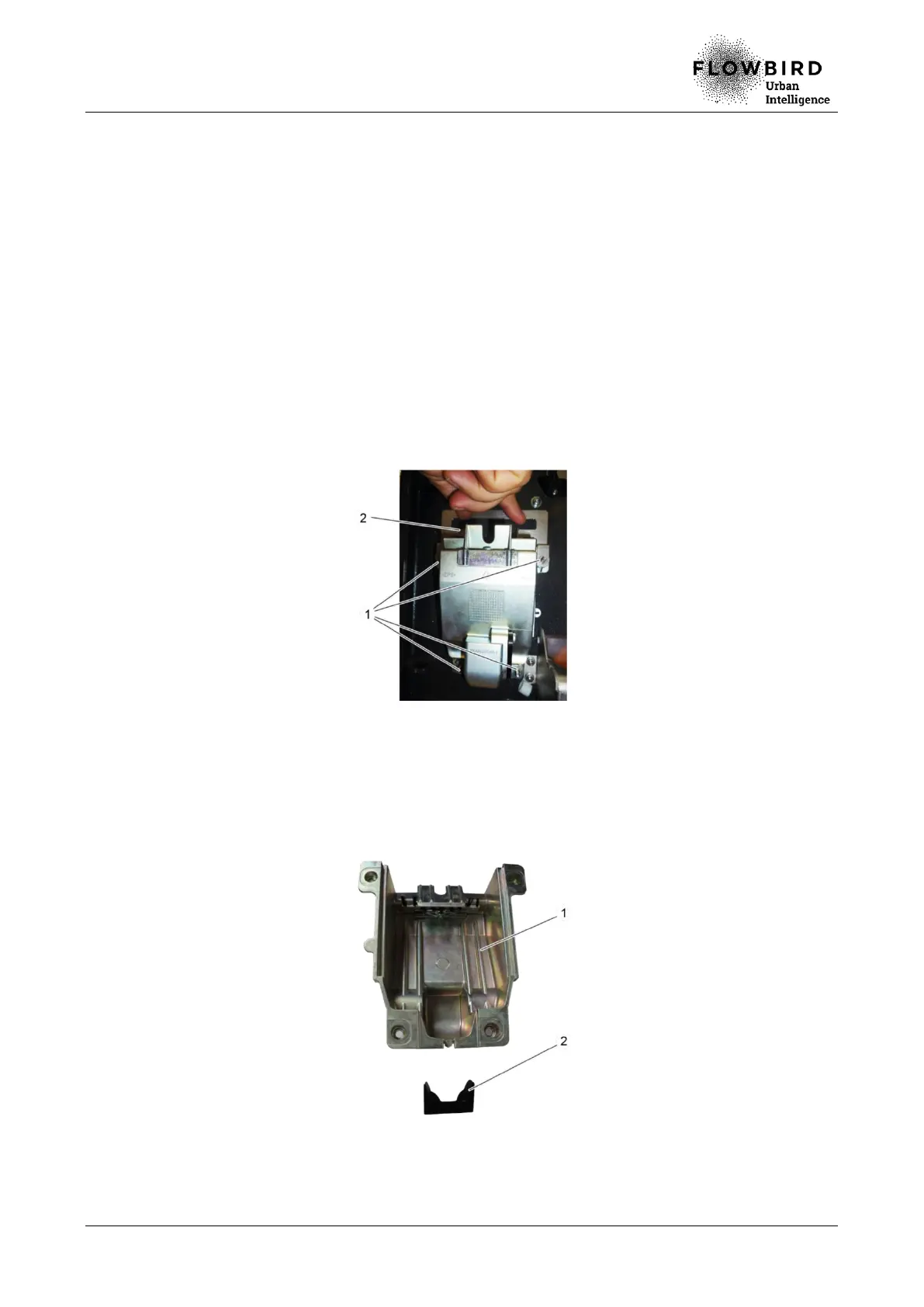

Replacing the ticket bowl
8.2.12.3 Installation
A. Remove the lower plastic part (2) of the new ticket bowl (1) (for climatic pack
option).
Replacing the ticket bowl
B. Repeat the previous steps in reverse.
