Chapter 2: Instrument Overview
Hyperion Tissue Imager
Hyperion Imaging System User Guide
17

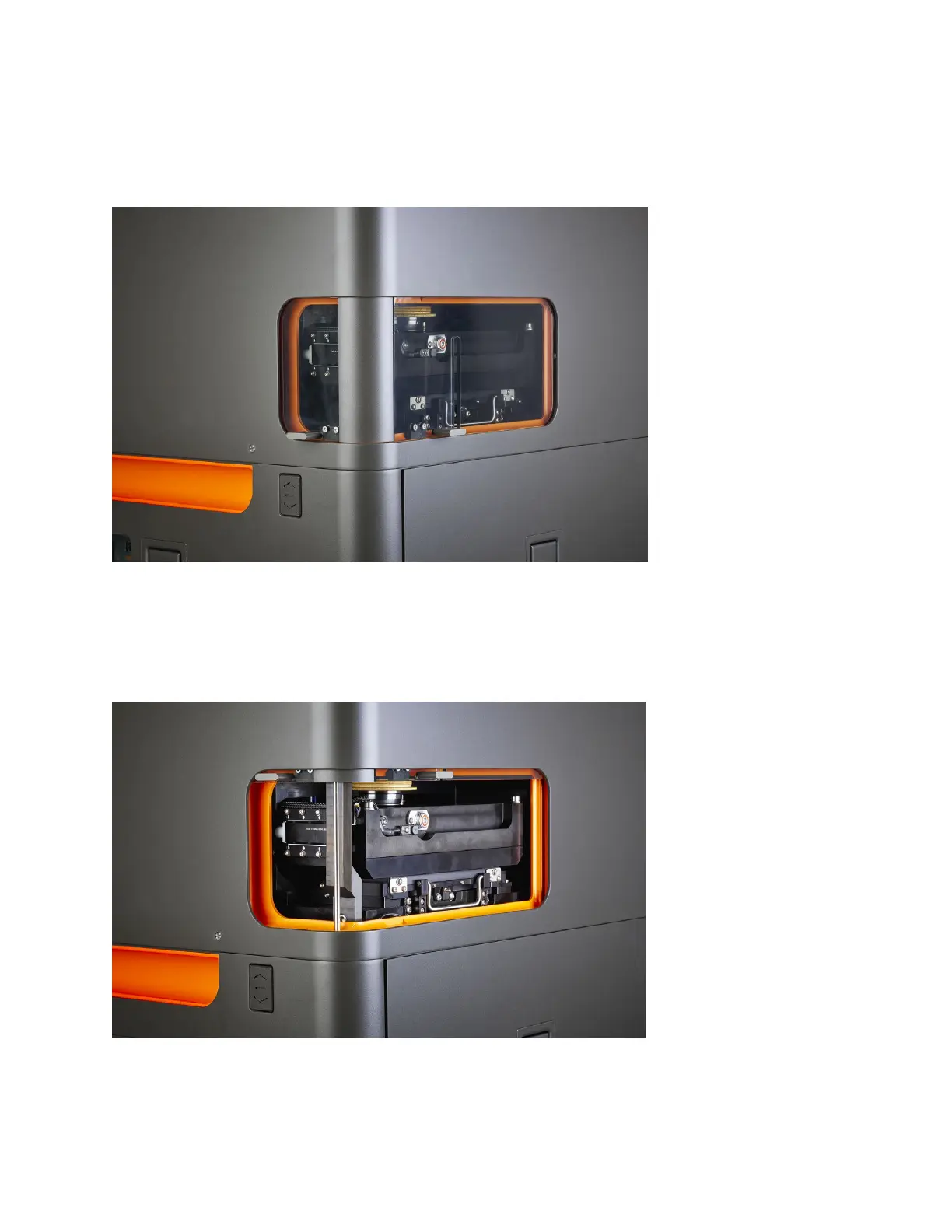

37BSample Window and Coupling Window
Closed Position
When the sample window or the coupling window is in the closed position, the light
corresponding to that window on the LED panel on the right side of the instrument is
GREEN.
Open Position
When the sample window or the coupling window is in the open position, the light
corresponding to that window on the LED panel on the right side of the instrument is NOT
LIT and the user cannot perform tuning or acquisition on the system.
