Chapter 2: Instrument Overview

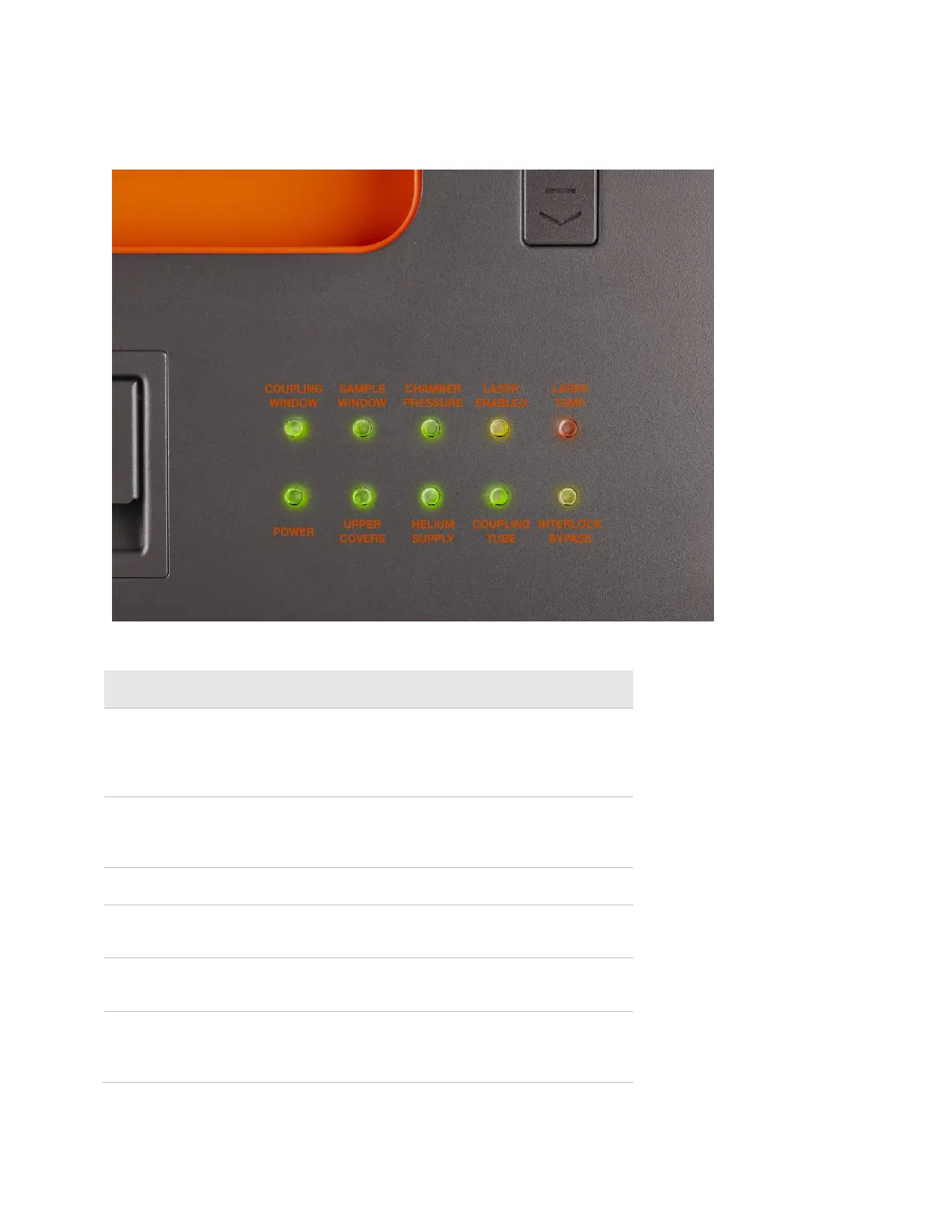

Hyperion Tissue Imager LED Panel
18 Hyperion Imaging System: User Guide
Hyperion Tissue Imager LED Panel
Table 13. Instrument Interlock LEDs on the LED panel of the Hyperion Tissue Imager
Instrument Interlock LED Description
COUPLING WINDOW When the light is green, the coupling window is
closed. When the light is not lit, the coupling
window is open and the interlock has been
triggered.
SAMPLE WINDOW
When the light is green, the sample window is
closed. When the light is not lit, the sample window
is open and the interlock has been triggered.
CHAMBER PRESSURE When the light is lit, the chamber is pressurized.
LASER ENABLED When the light is amber, the laser is firing and
ready to ablate, or ablation is in progress.
LASER TEMP. When the light is red, the laser has exceeded safe
operating temperature. The laser will be disabled.
COUPLING TUBE
When the light is lit, the coupling tube has been
connected to the ablation chamber. The wheel
retraction system is not activated.
