Chapter 2: Instrument Overview
Hyperion Tissue Imager LED Panel
Hyperion Imaging System User Guide
19
Instrument Interlock LED Description
POWER
When the light is continuously green, the system
power supplies are on. When light is not lit, the
system power supplies are off.
UPPER COVERS
When the light is not lit, the upper cover housing
the optics and the laser has been removed.
HELIUM SUPPLY
When the light is green, the pressure in the helium
supply line is within operating range.
COUPLING TUBE When the light is lit, the coupling tubing has been
connected to the ablation chamber. The wheel
retraction system is not activated.
INTERLOCK BYPASS When the light is flashing green, all safety
interlocks have been bypassed. (The interlock
bypass is for the field service engineering team.)
Torch box
Samp ler
cone
Vacuum
inter face

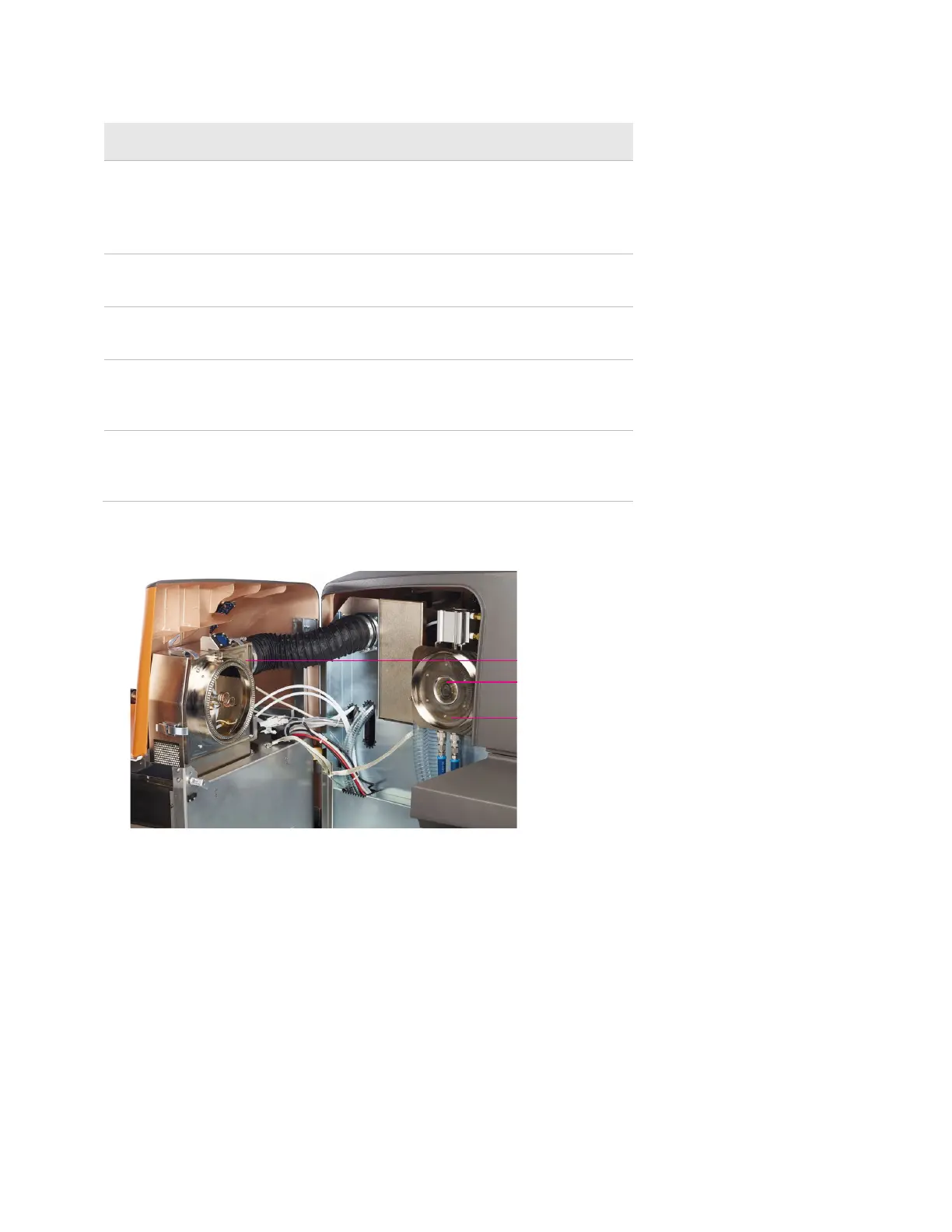

Figure 7. Interior view of the Helios™ instrument with front access door open
