Page 12
FW-E115-P-M_v0203_03_EN.docx
3 CONFIGURATION
3.1 INTRODUCTION
This and the following chapters are exclusively meant for electricians and non-operators. In these,
an extensive description of all software settings and hardware connections are provided.
• Mounting, electrical installation, start-up and maintenance of the instrument may only be
carried out by trained personnel authorized by the operator of the facility. Personnel must
read and understand this manual before carrying out its instructions.
• The E115-P may only be operated by personnel who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed.
• Ensure that the measuring system is correctly wired up according to the wiring diagrams.
The housing may only be opened by authorized personnel.
• Take careful notice of the “Safety rules, instructions and precautionary measures” in the
front of this manual.
3.2 PROGRAMMING SETUP-LEVEL
Changing the settings of the E115-P may have an influence on the current operation of the
device, even when SETUP-level is still active.
Make sure that the unit is not being used for any application when altering the settings.
Be aware that the optical keys may be locked and will not function.
Unlock the optical keys as described before.
3.2.1 ENTERING SETUP-LEVEL
Configuration of the E115-P is done at SETUP-level, which can be reached at all times while the
E115-P remains fully operational. At SETUP-level the display will deactivate the RUN indicator and
activate the SETUP indicator.
Use the control panel to access SETUP-level
PROG-key
To enter SETUP-level, press the PROG-key for 7 seconds at OPERATOR-level.
During this time, the symbol will be displayed.
When SETUP-level is entered, a password might be required to continue. You can
enter the password by following the procedure for programming values as described in
the following paragraphs.
A password may be required to enter SETUP.
Without this password access to SETUP is denied.
3.2.2 NAVIGATING THROUGH SETUP-LEVEL
Each function has a unique menu-number, which is displayed below the SETUP indicator at the
bottom of the display. The menu-number is a combination of two figures, e.g. 1.2. The first number
indicates the function-group and the second number indicates the function. Additionally, each
function and function-group is expressed with a keyword.

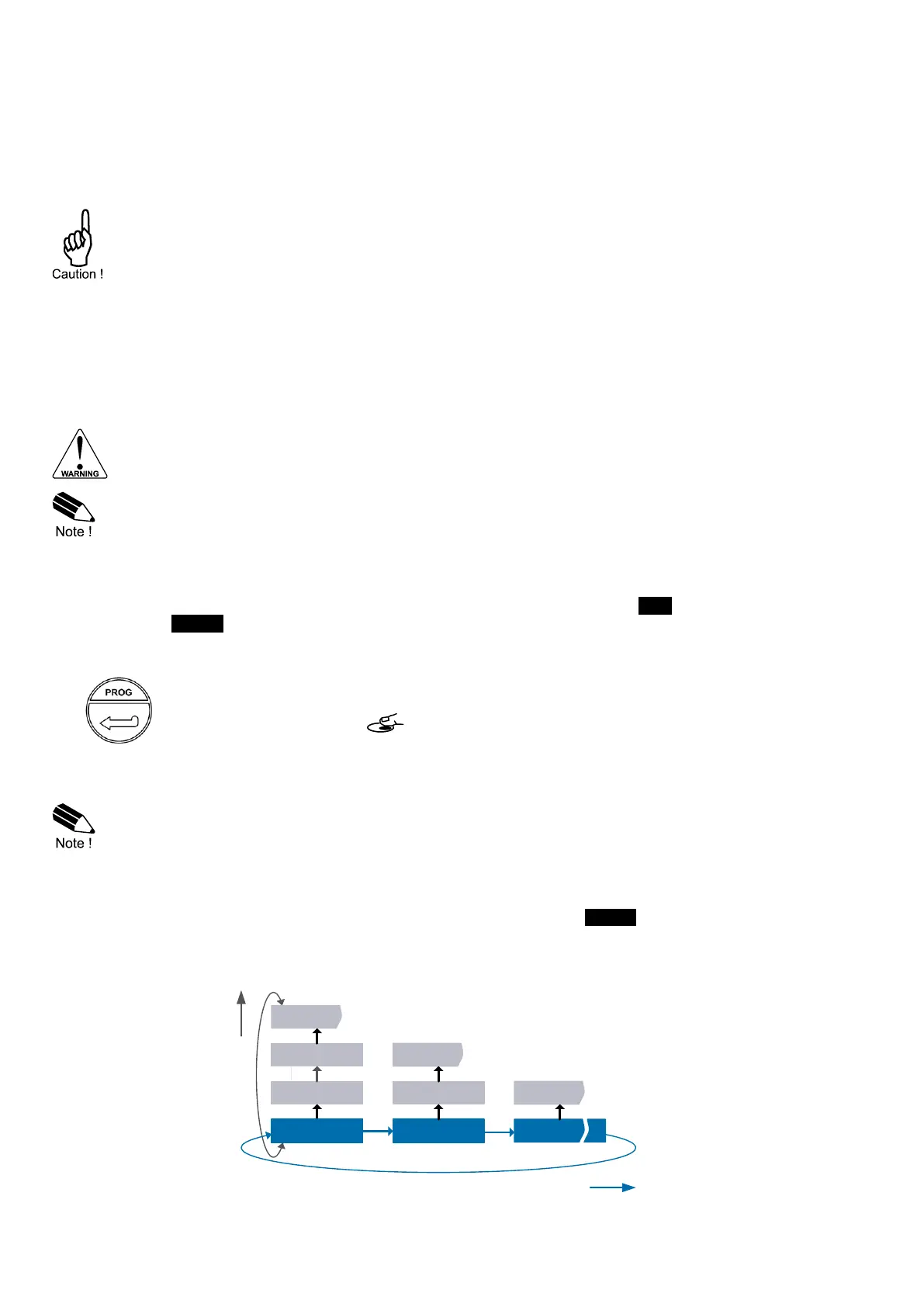

Fig. 8: SETUP matrix structure
1.1
1.2
2.1.
2.1
1.3
2.2
3.1
3.
FUNCTION GROUP
FUNCTION
FW-4100-000001-001-EN
