The Tester
7
The Tester

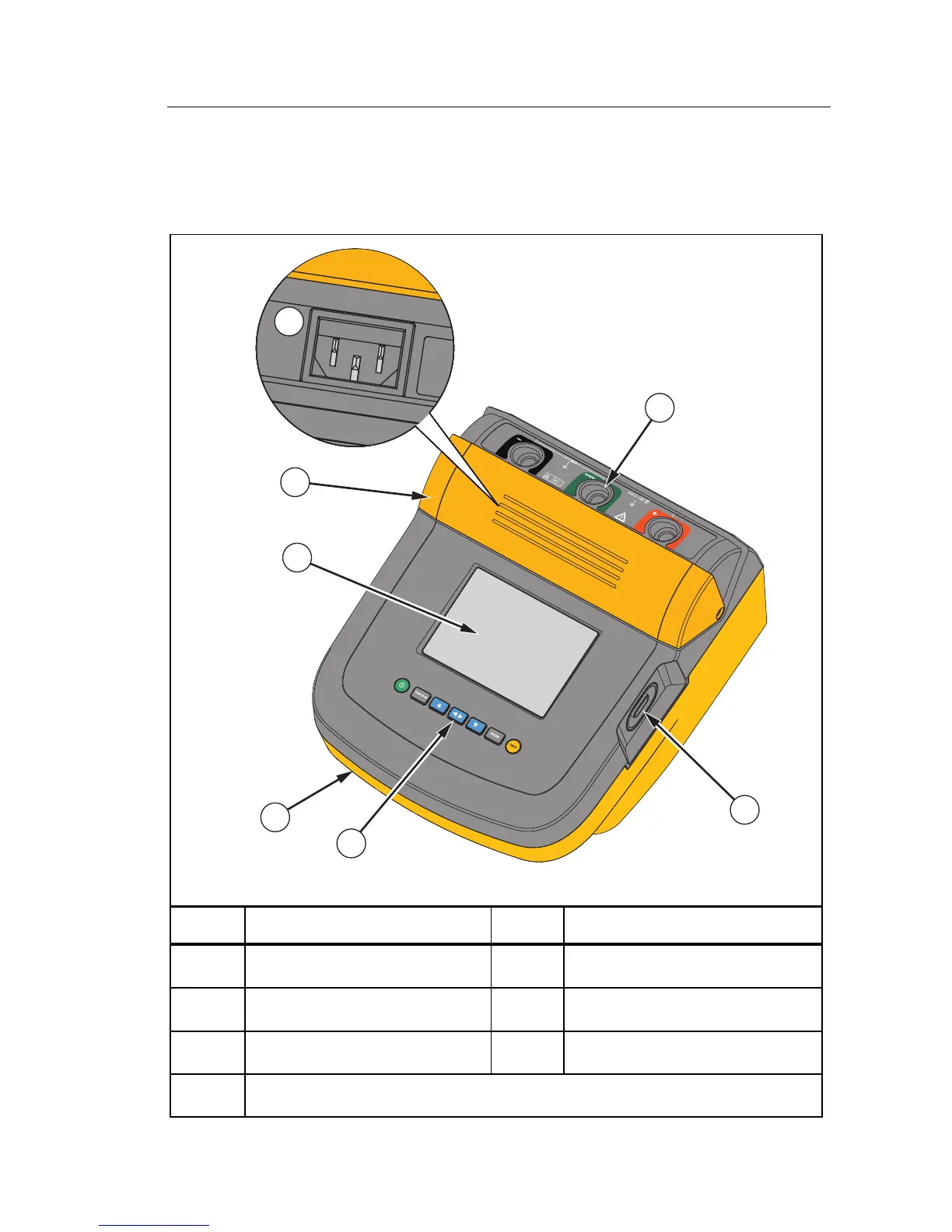

The subsequent sections tell you about the Tester and its operation. The Tester
is shown in Figure 2.
1
2
4
5
6
7
3
ghh16.eps
Item Description Item Description

LCD

IR Port

Safety Shutter

Pushbuttons

AC plug

Built in Handle

Input Terminals
Figure 2. 1550C/1555 Insulation Tester

Fluke 1550C Specifications

General

Display type	-
Housing color	Grey, Yellow
Maximum voltage	5000 V
AC voltage range	250 - 5000 V
Operating altitude	0 - 2000 m
Overload protection	Yes
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
International Protection (IP) code	IP40
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1

Weight and Dimensions

Depth	277 mm
Width	269 mm
Height	160 mm
Weight	3700 g
