Fluke 1550C User Manual

Insulation Tester
Measurements
17
Note
The actual test voltage can be up to 10 % higher than the selected test
voltage.
Program a Test Voltage
To set a test voltage in between the preset test voltages, proceed as follows:
1. With the Tester turned on, push  to select TEST VOLTAGE.

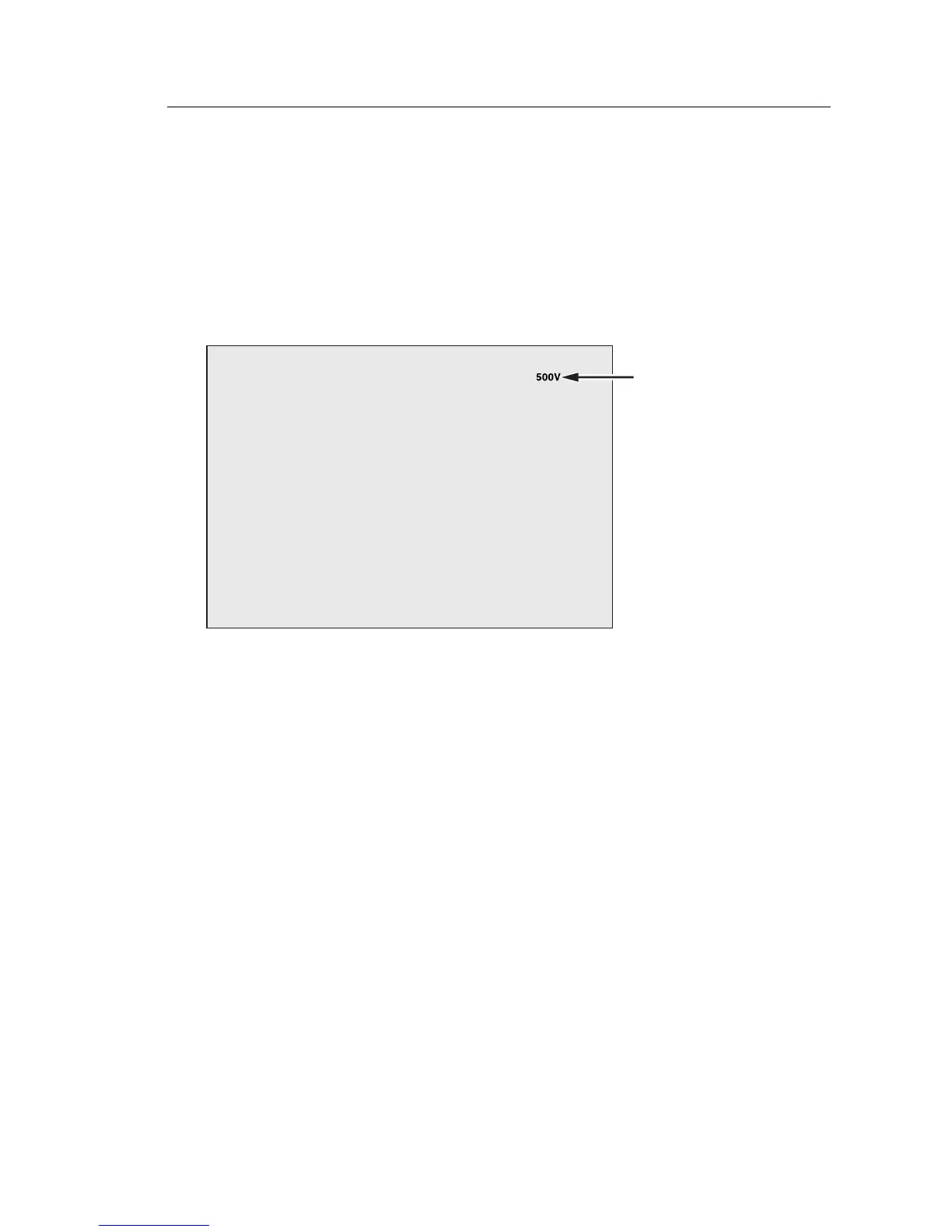

Test Voltage Display
GHH05.EPS
2. Push  or  to scroll through the preset test voltage options (250 V,
500 V, 1000 V, 2500 V, 5000 V, and 10,000 V). Select the voltage closest
to the level required.
3. The selected test voltage appears in the upper-right of the display.
4. Push . TVxxxxV appears flashing in the lower-left of the display.
5. Push  or  to increment and decrement the voltage. When the
correct voltage level shows, do not push . Doing so will return the test
voltage to the next lowest last preset voltage selection. Instead, push 
to go to the function menu.
Note
The test voltage can be up to 10 % higher than the test voltage you
select.

Fluke 1550C Specifications

General

Display type	-
Housing color	Grey, Yellow
Maximum voltage	5000 V
AC voltage range	250 - 5000 V
Operating altitude	0 - 2000 m
Overload protection	Yes
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
International Protection (IP) code	IP40
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1

Weight and Dimensions

Depth	277 mm
Width	269 mm
Height	160 mm
Weight	3700 g
