Fluke 1550C User Manual

1550C/1555
Users Manual
14
Leakage
Current
G
Shield
( )
( )
( )
GHH15.EPS

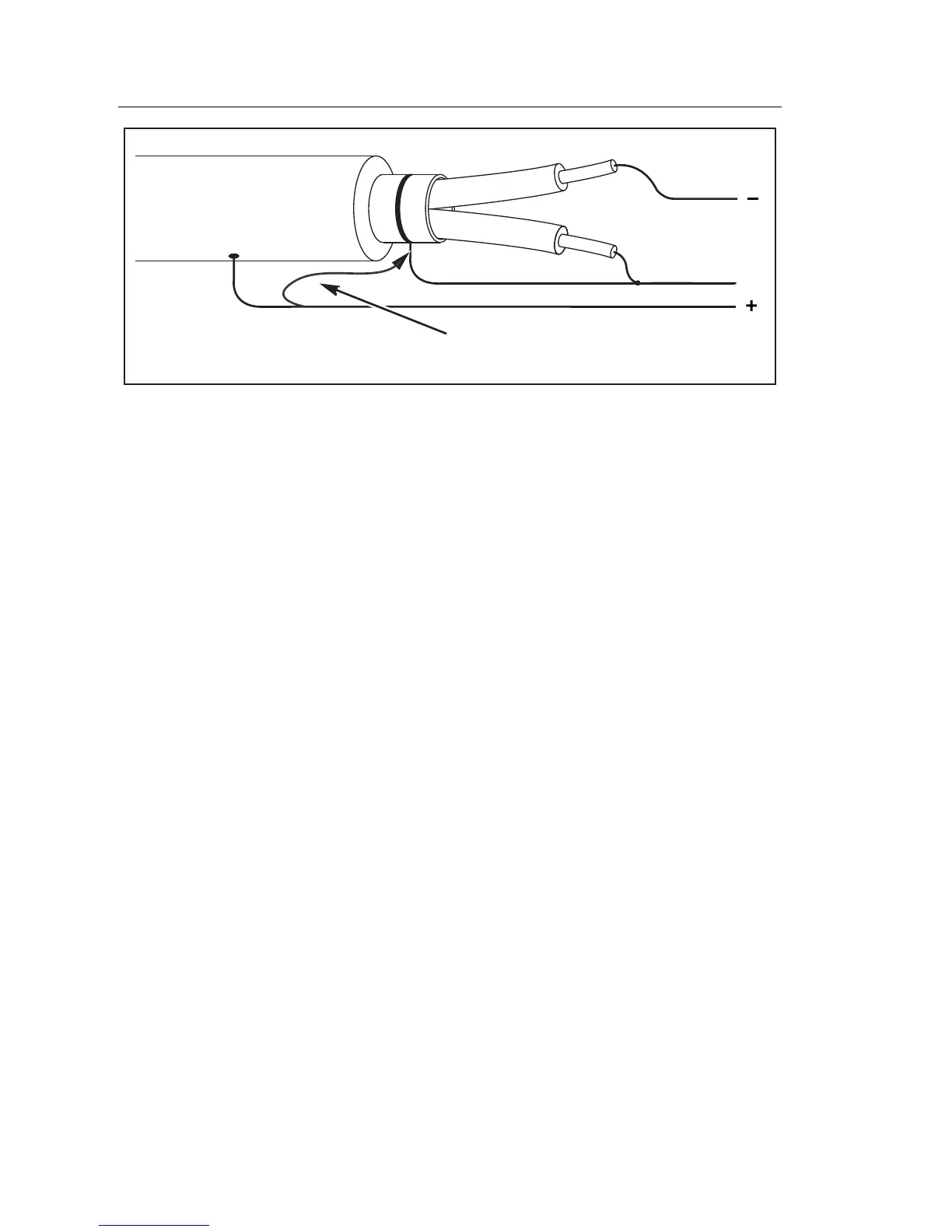

Figure 8. Improved Guard Terminal Connection
Measurements
Common measurement procedures are discussed in this section.
Connect to the Circuit Under Test
XW Warning
To avoid possible electric shock or personal injury:
• Remove all power from the circuit under test and
discharge circuit capacitance before testing a
circuit with the Tester.
• Connect the common test lead before the live test
lead and remove the live test lead before the
common test lead.
• Before and after testing, confirm that the Tester
does not indicate the presence of a hazardous
voltage, see Figure 4. If the Tester beeps
continuously and a hazardous voltage is shown
on the display, remove power from the circuit
under test and disconnect test leads.

Fluke 1550C Specifications

General

Display type	-
Housing color	Grey, Yellow
Maximum voltage	5000 V
AC voltage range	250 - 5000 V
Operating altitude	0 - 2000 m
Overload protection	Yes
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
International Protection (IP) code	IP40
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1

Weight and Dimensions

Depth	277 mm
Width	269 mm
Height	160 mm
Weight	3700 g
