Charge the Battery
Pb
=
Note
This Tester uses a rechargeable 12 V lead-acid battery for power. Do
not mix with the solid waste stream. Use a qualified recycler or
hazardous materials handler to discard dead batteries. Contact your
approved Fluke Service Center for disposal and recycling data.
Storing rechargeable lead-acid batteries in a low-charged state could
decrease their life and/or damage them. Fully charge the battery
before storing it for extended periods and examine the charge at
regular intervals.
Charge the 12 V lead-acid battery with the ac power cord.
12 hours is typically necessary to fully charge the battery. Do not charge in
very high or low temperatures. Charge the battery if the Tester is not used for
extended periods. Figure 5 shows how to connect the Tester to a power supply.
Safety Shutter
GHH11.EPS

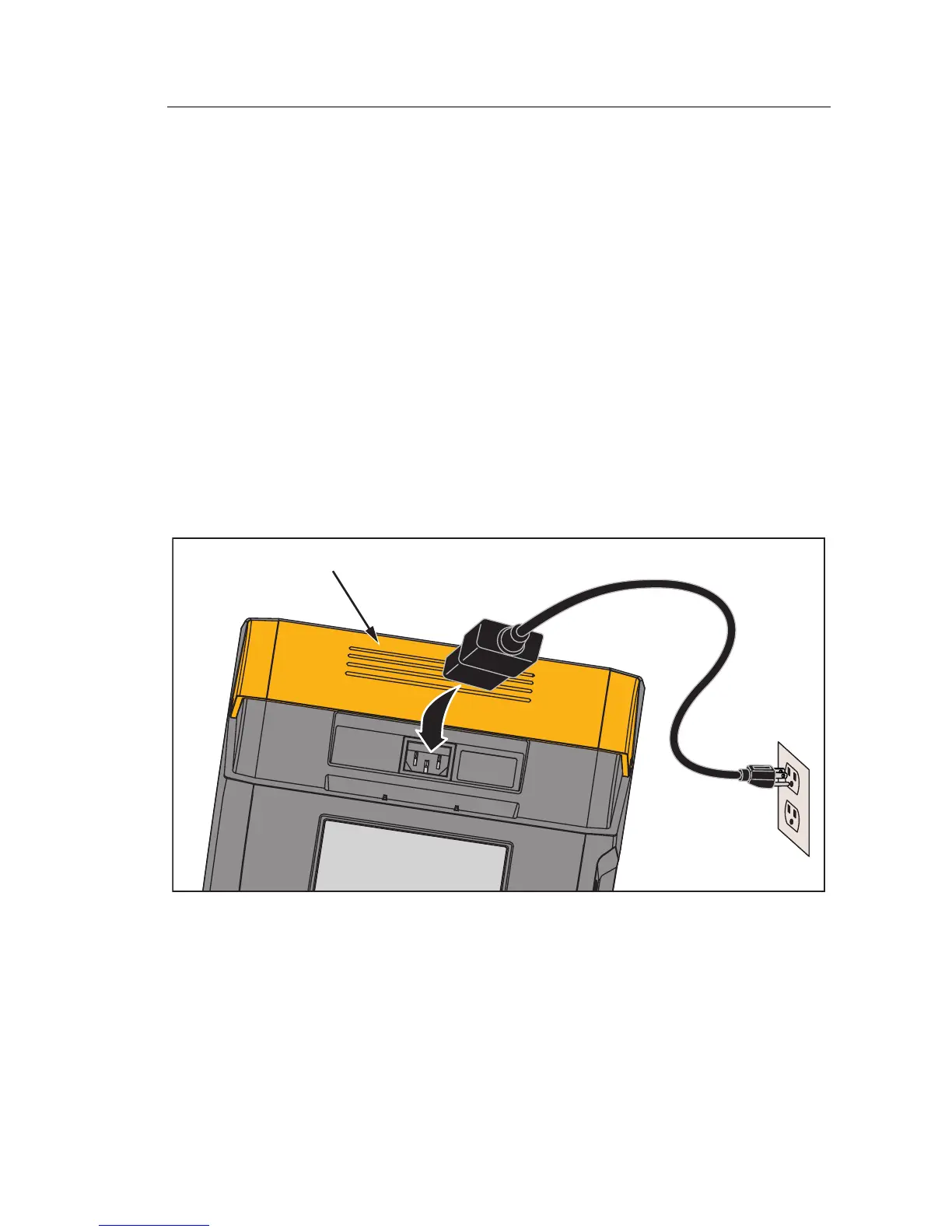

Figure 5. Power Supply Connections.

Fluke 1550C Specifications

General

Display type	-
Housing color	Grey, Yellow
Maximum voltage	5000 V
AC voltage range	250 - 5000 V
Operating altitude	0 - 2000 m
Overload protection	Yes
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
International Protection (IP) code	IP40
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1

Weight and Dimensions

Depth	277 mm
Width	269 mm
Height	160 mm
Weight	3700 g
