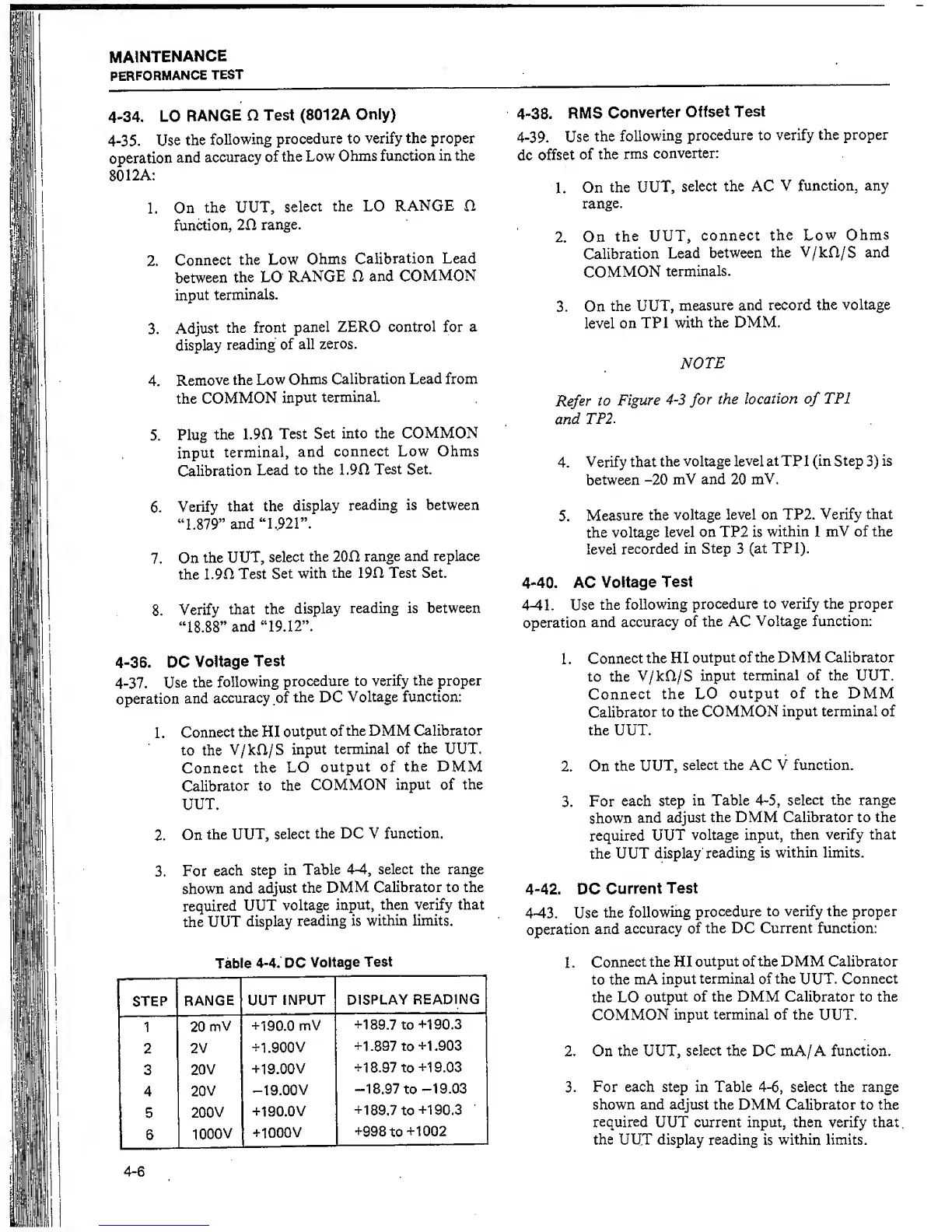

MAINTENANCE
PERFORMANCE
TEST
4-34. LO
RANGE
Q Test (801
2A
Only)
4-35. Use
the
following
procedure
to
verify
the
proper
operation
and
accuracy of
the
Low
Ohms function in
the
8012A:
1.
On
the UUT,
select
the LO
RANGE
H
function,
20
range.
2.
Connect
the
Low
Ohms
Calibration Lead
between
the LO
RANGE
fl and
COMMON
input
terminals.
3.
Adjust
the
front
panel
ZERO control for a
display
reading
of
all
zeros.
4.
Remove
the Low
Ohms
Calibration Lead from
the
COMMON
input
terminal.
5.
Plug
the
1.9fl
Test
Set into the COMMON
input
terminal,
and
connect Low Ohms
Calibration
Lead to
the 1.90
Test Set.
6.
Verify
that
the
display
reading is between
“1.879”
and
“l.,921”.
7.
On
the
UUT,
select
the 200
range
and replace
the
1.90 Test
Set with
the 190 Test Set.
8.
Verify
that
the
display
reading is
between
“18.88”
and
“19.12”.
4-36.
DC
Voltage
Test
4-37.
Use
the
following
procedure to verify
the proper
operation
and
accuracy of
the DC
Voltage function:
1 .
Connect
the HI
output
of
the DMM
Calibrator
to the
V/kO/S
input
terminal of the UUT.
Connect
the
LO
output of
the
DMM
Calibrator
to
the
COMMON
input
of the
UUT.
2. On
the
UUT,
select
the DC V function.
3.
For
each
step
in
Table
4-4,
select the range
shown
and
adjust
the
DMM
Calibrator to the
required
UUT
voltage
input,
then verify that
the UUT
display
reading is
within
limits.
Table
4-4.
DC
Voltage
Test
STEP
RANGE
UUT
INPUT DISPLAY
READING
1 20
mV +190.0
mV
+189.7
to
+190.3
2
2V
+1.900V
+1.897
to
+1.903
3
20V
+
19.00
V
+18.97
to
+19.03
4
20V
-19.00V
-18.97
to
-19.03
5
200V
+1
90.0
V
+189.7
to
+190.3
1000V
+
1000V
+998
to
+1002
4-38.
RMS
Converter
Offset Test
4-39,
Use
the
following
procedure to
verify
the proper
dc
offset
of
the
rms
converter:
1.
On
the
UUT,
select the AC
V function, any
range.
2.
On
the
UUT,
connect
the Low
Ohms
Calibration
Lead
between
the V/kH/S and
COMMON
terminals.
3. On
the UUT,
measure and
record
the
voltage
level on
TPl
with
the DMM.
NOTE
Refer
to
Figure
4-3
for
the
location
of
TPl
and
TPl.
4.
Verify that
the voltage
level at
TPl
(in
Step
3)
is
between
-20
mV
and
20
mV.
5.
Measure
the
voltage
level on TP2.
Verify that
the
voltage
level on TP2 is
within
1
mV
of the
level
recorded in
Step
3
(at
TPl).
4-40.
AC
Voltage
Test
4-41.
Use
the
following
procedure to verify the proper
operation
and
accuracy
of
the
AC
Voltage function:
1 .
Connect
the HI
output
of
the DMM Calibrator
to the
V/kO/S
input
terminal of the UUT.
Connect
the LO
output of the DMM
Calibrator
to
the COMMON
input terminal of
the UUT.
2. On
the UUT,
select the AC V function.
3. For
each
step in Table 4-5,
select
the
range
shown
and
adjust
the DMM Calibrator to the
required
UUT
voltage
input,
then verify that
the UUT
display reading
is
within limits.
4-42.
DC
Current
Test
4-43.
Use
the
following
procedure
to verify the proper
operation
and
accuracy
of
the DC Current function:
1 .
Connect
the HI
output
of
the DMM Calibrator
to
the
mA input
terminal
of
the
UUT.
Connect
the LO
output of the DMM Calibrator to the
COMMON
input terminal
of
the
UUT.
2.
On
the
UUT,
select
the DC mA/A function.
3.
For each step in Table
4-6,
select the range
shown
and adjust the DMM Calibrator to the
required
UUT
current input, then
verify
that,
the
UUT
display
reading
is
within
limits.
4-6
