OPERATION
FRONT
PANEL
FEATURES
4.
Using a
coin
or
wide
blade
screwdriver,
push
in
while
turning
the
fuse
holder
in
the
direction
of
the arrow
on
the
front
panel
decal,
5. Pull out
the
fuse
holder
and
replace
the
defective
fuse.
2-13.
FRONT
PANEL
FEATURES
2-14.
Before
using
your
Multimeter,
take a
few minutes
to
become
familiar
with
the
use
of
its
controls,
indicators,
and
connectors.
The
front
panel
features
are
shown in
Figure 2-1
and
described
in
Table
2-1.
The
features of
the
Liquid
Crystal
Display
(LCD) are
also
described in
the
following
paragraphs.
2-15.
LCD
DISPLAY
2-1
6.
The
features
of
the
Liquid
Crystal
Display
(LCD)
are
shown
in
detail
in
Figure
2-2.
The
position
of
the
floating
decimal
point
is
determined
by
the
range selected.
The
maximum
measurement
value
that
can be
displayed
is
one count
less
than
the
range
selected
(e.g., maximum
measured
voltage
that
can
be
displayed in the 200
mV
range
would
be 199.9
mV).
2-17. To
extend the life of the LCD and to ensure
that
the
display
will be
ready to operate, observe the following
precautions:
• Do
not
store
or
use the
instrument
in
temperatures
above or below those specified in Section 1.
•
Do
not store or use the instrument in humidity
above
that specified
in Section
1.
NOTE
Low
temperatures (within
the
specified
operating
limits) will
cause the LCD response
to be
sluggish.
Avoid prolonged exposure
of
the LCD to direct
sunlight (ultraviolet).

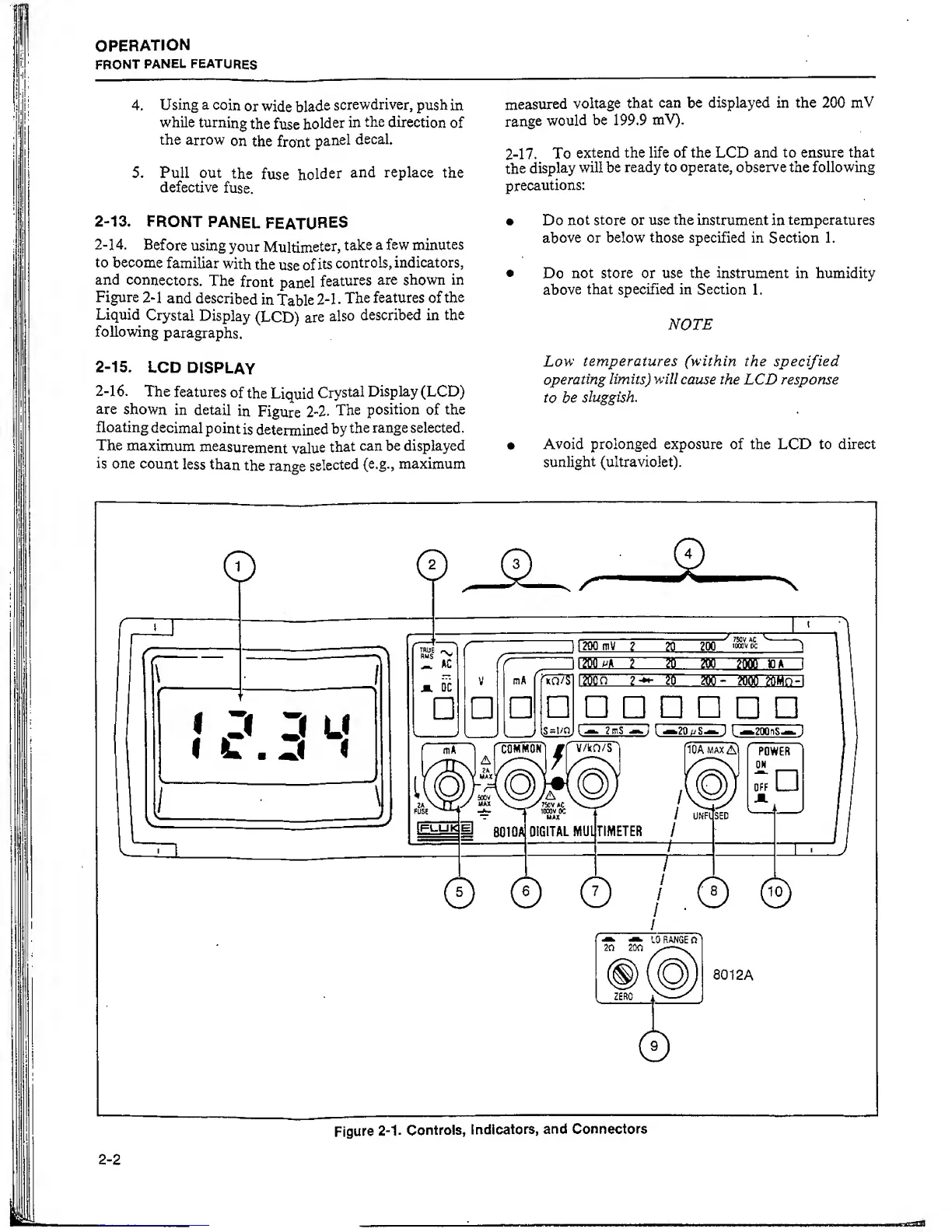

Figure
2-1.
Controls,
indicators,
and Connectors
2-2
