Installing a Replacement Bail on an Older OptiView Analyzer
21
Installing a Replacement Bail on an Older OptiView
Analyzer
With the bail nearly closed on the analyzer, grip one side of the bail by where it
pivots on the analyzer and gently pull. It should pop out with little effort. Do the
same for the opposite side. See figure 10 below.
Caution
The bail must be nearly shut before removing or installing,
or damage may occur to the analyzer case.
With the new analyzer bail placed in the nearly shut position, install it one side at a
time by placing the pivot arm in the pivot hole on the analyzer and gently pushing
until it pops into the hole and pivots freely. Do the same for the other side.
Stylus
apo04f.eps

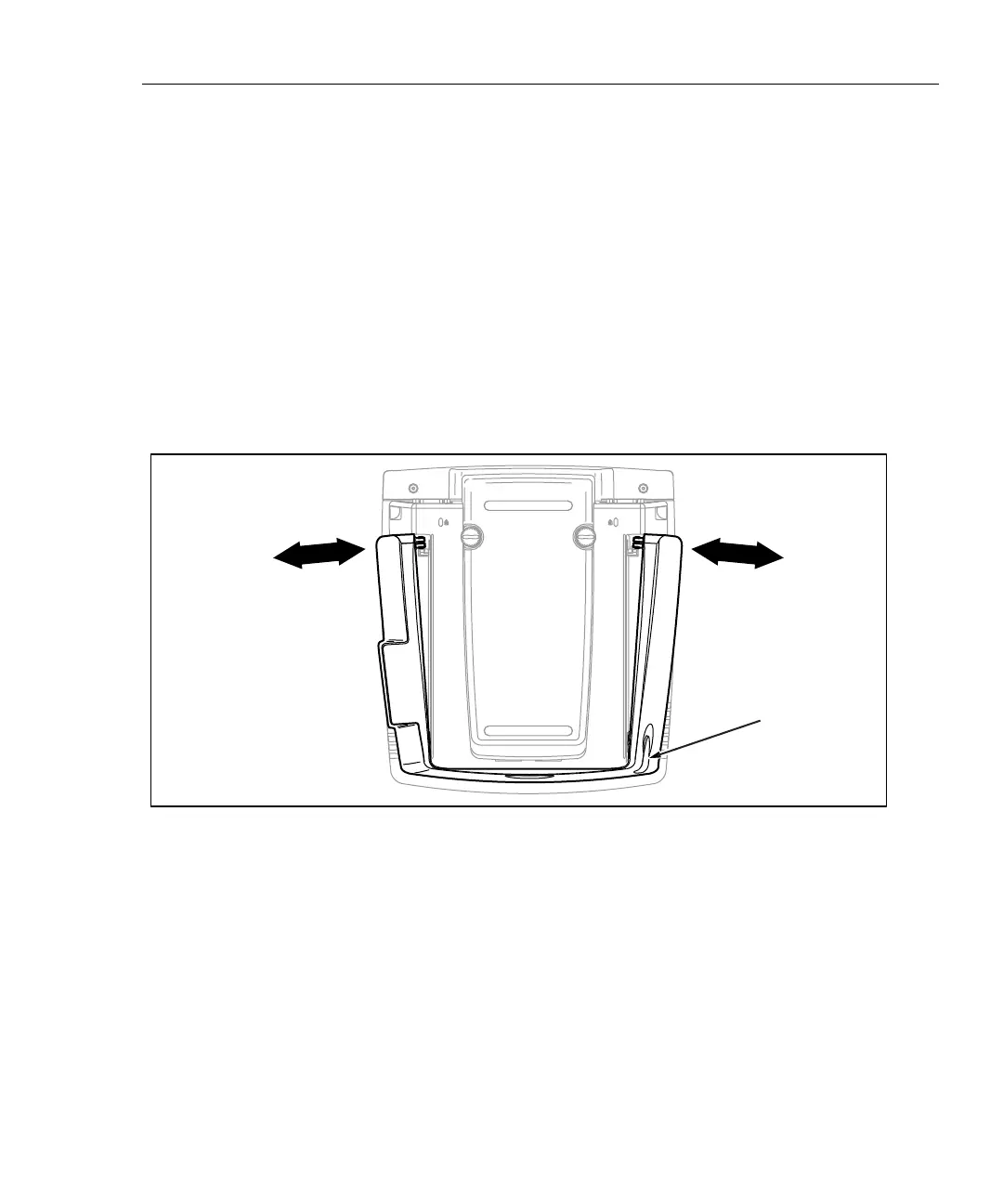

Figure 12. OptiView Wireless Network Analyzer Bail Removal
