OptiView
TM
Getting Started Guide
22
Troubleshooting Your Analyzer
Resetting and Powering the Analyzer Completely Off
If you suspect the Windows environment has locked up, you may have to reset the
analyzer. This is done by pressing the Reset button. If you are not sure if the
Windows environment or the analyzer (hardware) has locked up, you may have to
completely power-down the analyzer by forcing the power off as described below.
Resetting the Analyzer
The Reset button resets the Windows portion of the analyzer without shutting
down the data acquisition board. The Reset button should only be used if the
Windows environment has stopped responding.
Forcing Power Off
Power can be forced off by pressing and holding the On/Off button for
approximately 7 seconds.
R
E
S
E
T

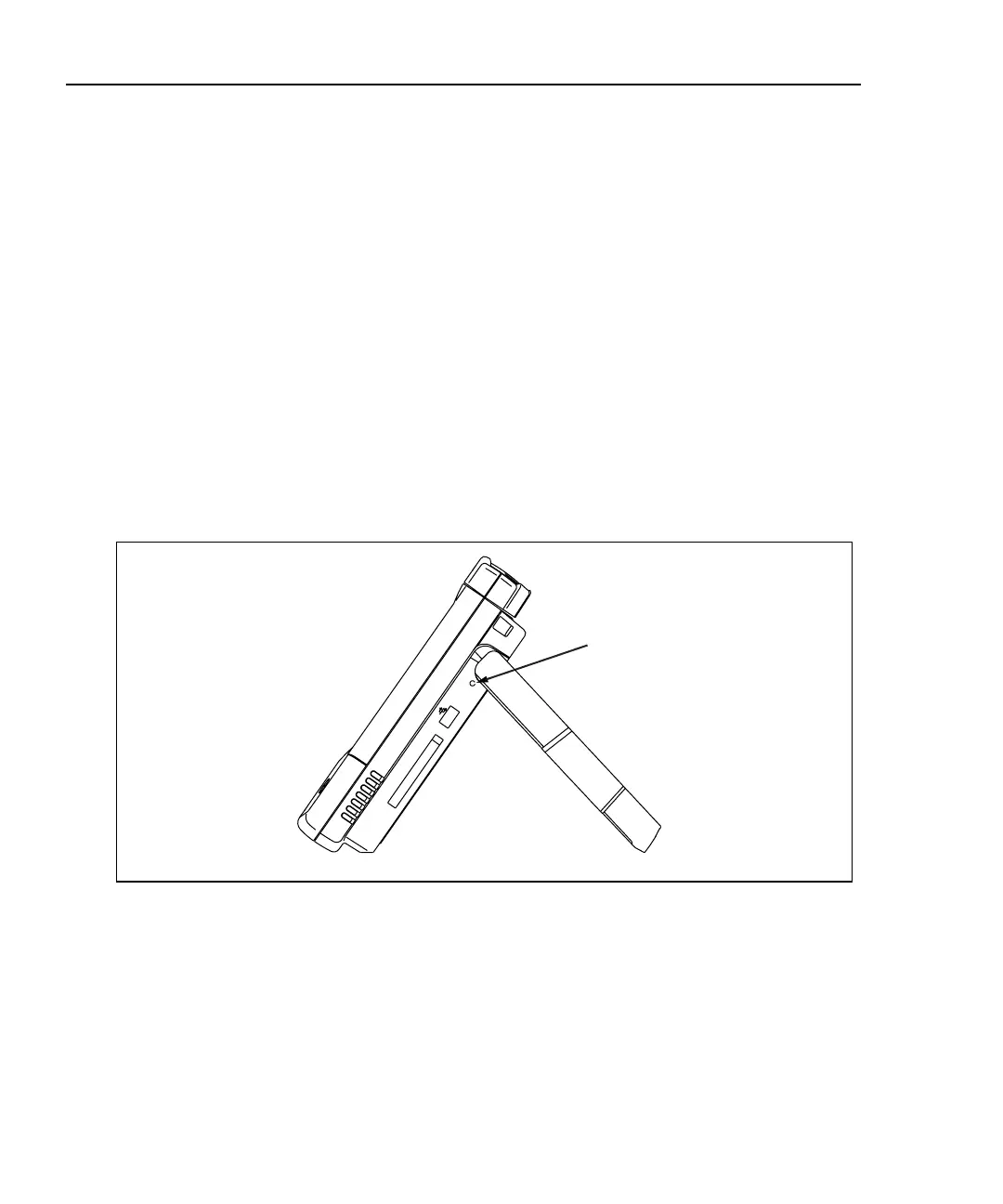

Reset button
apo05f.eps
Figure 13. Reset Button Location
