Fluke VT04 - Features and Controls

Visual IR Thermometer
Features and Controls
7
Features and Controls

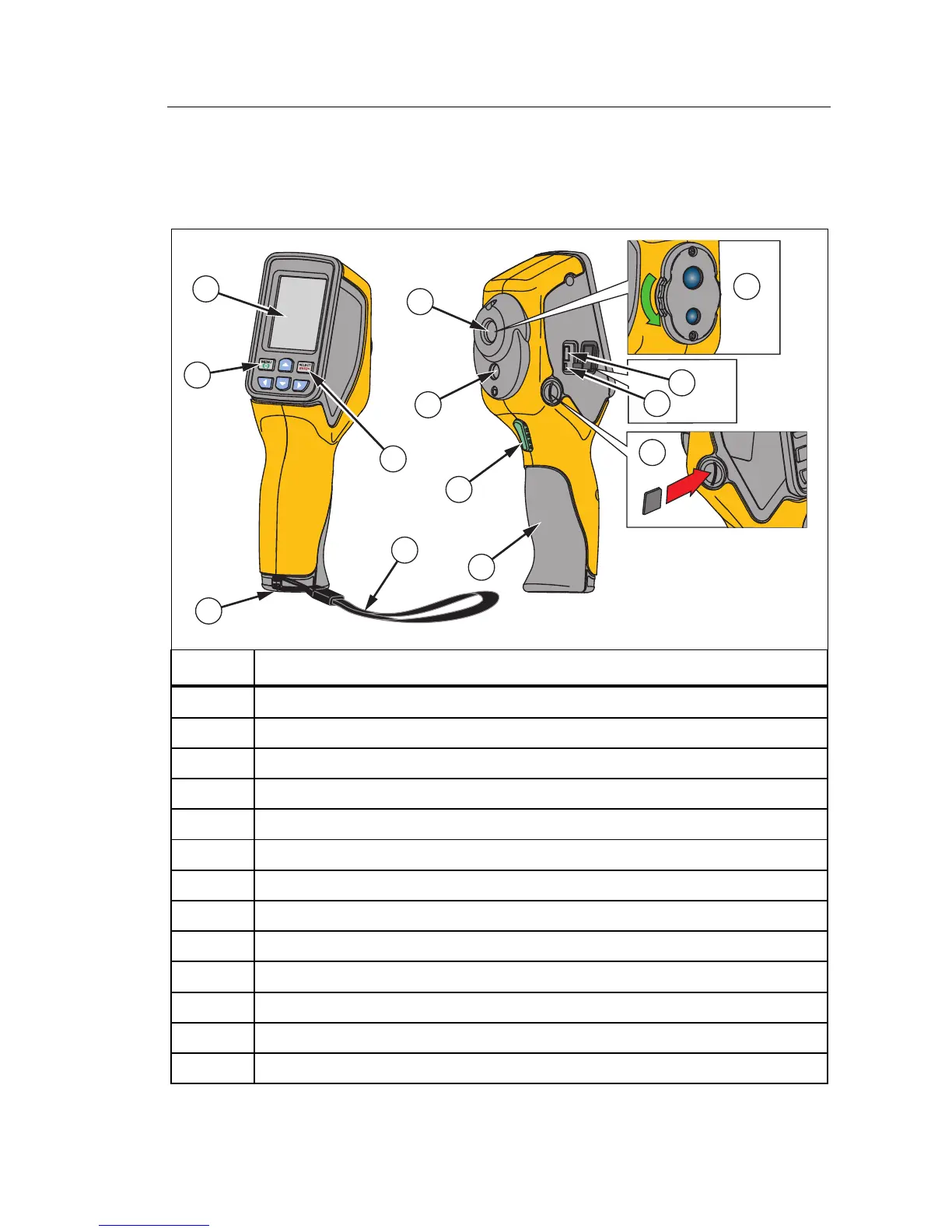

Table 3 is a list of the Product features with the location of each control.
Table 3. Features
3
VT04
VT02
VT04
6
2
4
5
1
9
10
12
13
11
7
8
hak04.e
p
s
Item Description
 LCD Display
 Power On/Off and Menu
 Micro SD Memory Card Slot
 Lanyard
 Tripod Mount
 Select/Enter
 Infrared Lens
 Rotating Lens Cover (VT02)
 Visual Camera
 Trigger for Image Capture
 Battery Cover
 Micro USB Connector (Input 2.5 W, 0.5 A at 5 V)
 Battery Charge Status LED
