Fluke VT04 User Manual

Visual IR Thermometer
Menu Functions
11
Menu Functions
To open the display menu, push . The menu has options for memory,
emissivity, background temperature, spot temperature markers, date, and time.
Basic Navigation
The basic functions of the Product are accessible with the six buttons and color
display. Only five options show on the display at one time. The / buttons
scroll through the display menu. The middle option is always highlighted in
yellow. See Figure 6.
5:12
˚
C
20
˚
C
0
Yellow Highlight
Open Display Menu
Select/Enter
Up/Down to
Change Values
Battery Charge Level
hak07.eps

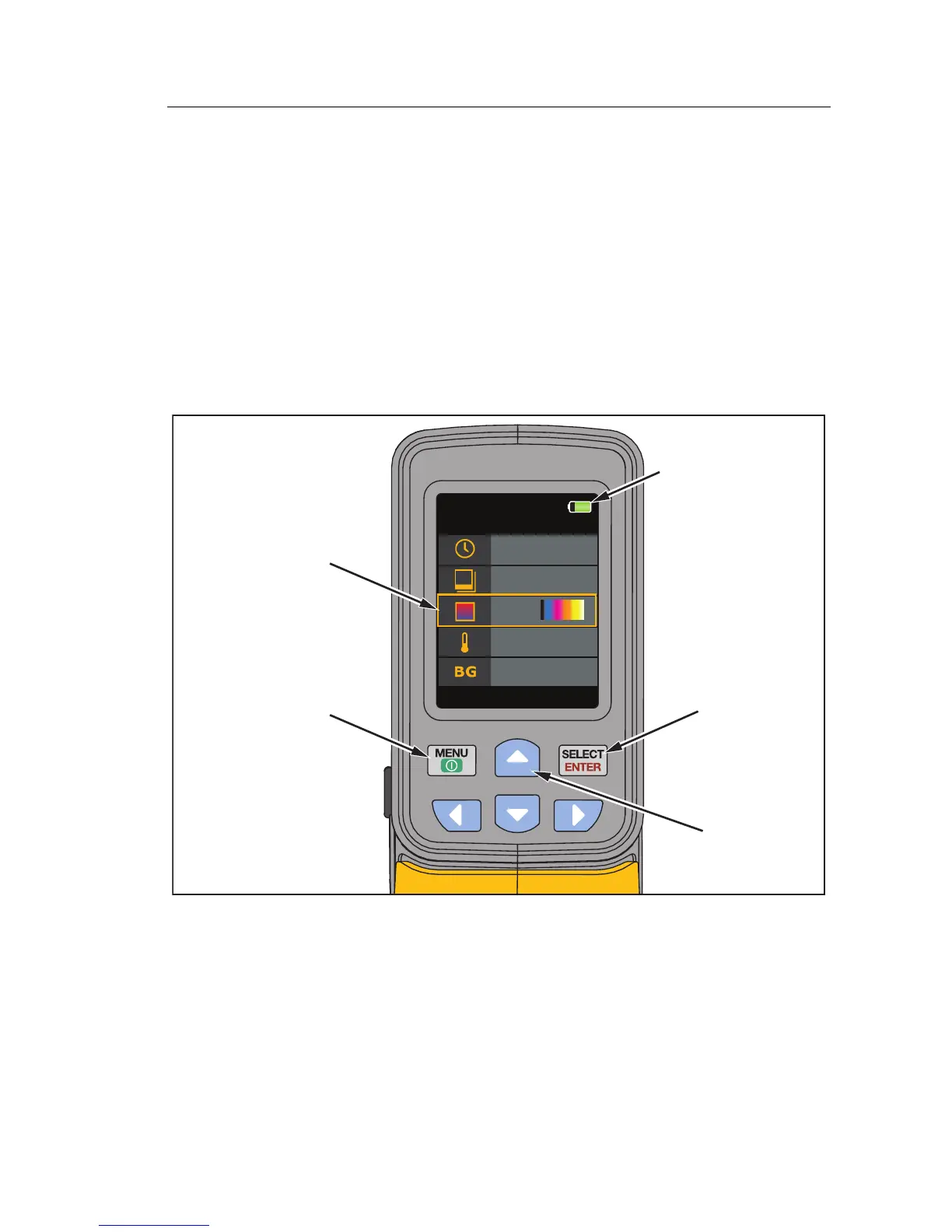

Figure 6. Menu Navigation and Battery Icon
Push  to select the menu option and edit the value. The / buttons
change the value of the menu selection. After adjustments are made, push 
to accept a new value and exit the edit mode. See Figure 7.
Shop for Fluke products online at:
1.877.766.5412
www.MyFlukeStore.com

Fluke VT04 Specifications

General

Type	Infrared environment thermometer
Purpose	-
Placement	Hand
Display type	Digital
Product color	Black, Yellow
Display form factor	Rectangular
Accuracy	2 °C
Clock function	Yes
Spectral response	6.5 - 14 µm
Temperature measurement range	-10 - 250 °C
Temperature measurement units	F, °C
Power source	Battery
Battery voltage	3.6 V
Number of batteries supported	1
Certification	EN 61326:2006, IEC/EN 61010-1:2010
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Battery life	8 h

Weight and Dimensions

Depth	55 mm
Width	75 mm
Height	210 mm
Weight	350 g
