Fluke VT04 User Manual

VT02, VT04
Users Manual
10
Capture and Save
The Product saves up to 10,000 images/GB on the Micro SD memory card.
To capture the image and save it to memory:
1. Push  until
shows in the bottom right-hand corner of the
screen.
2. Point the Product at the object or area of interest.
3. Pull the trigger to capture the image.
The image remains frozen for about 4 seconds. Next, a dialog box
prompts you to save or discard the image.
4. Push  to save or  to discard the image.
The display has an icon that shows the current status of the micro SD memory
card, see Figure 5.
1 2
3
4
hak02.eps

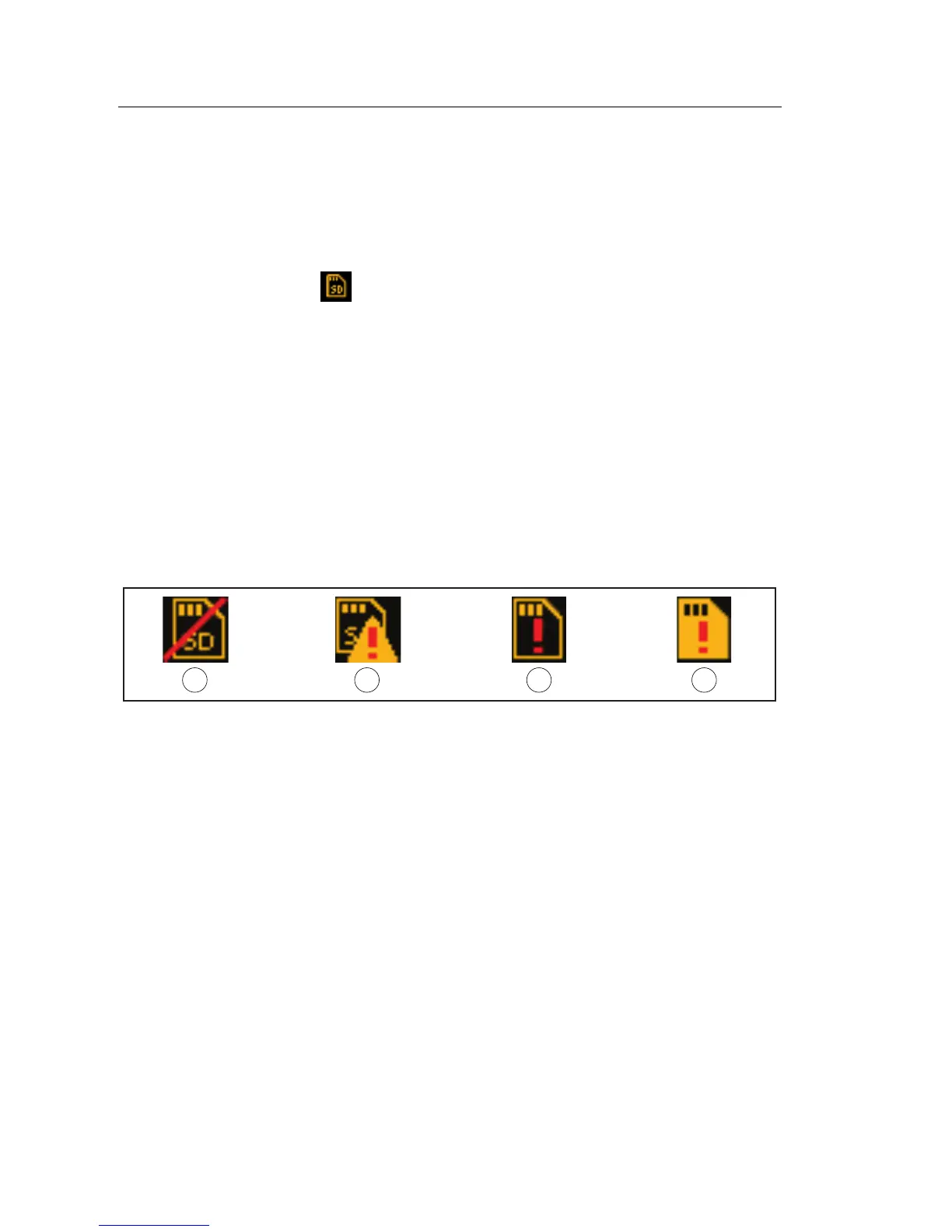

Figure 5. Micro SD Memory Card Warning Icons
 No Micro SD Memory Card in slot
 Micro SD Memory Card card error
 Micro SD Memory Card empty
 Micro SD Memory Card full
Note
A routine file back-up procedure is recommended for the Micro SD
Memory Card to store these files in a safe location.
Shop for Fluke products online at:
1.877.766.5412
www.MyFlukeStore.com

Fluke VT04 Specifications

General

Type	Infrared environment thermometer
Purpose	-
Placement	Hand
Display type	Digital
Product color	Black, Yellow
Display form factor	Rectangular
Accuracy	2 °C
Clock function	Yes
Spectral response	6.5 - 14 µm
Temperature measurement range	-10 - 250 °C
Temperature measurement units	F, °C
Power source	Battery
Battery voltage	3.6 V
Number of batteries supported	1
Certification	EN 61326:2006, IEC/EN 61010-1:2010
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Battery life	8 h

Weight and Dimensions

Depth	55 mm
Width	75 mm
Height	210 mm
Weight	350 g
