Fluke VT04 User Manual

VT02, VT04
Users Manual
8
Button Operation
Two functions are accessed directly from the buttons: Blending/Capture and
Save. The arrow buttons are used for menu navigation.
Image Blending
Image blending makes it easier to understand infrared images through the use
of an aligned visible image and infrared image. The Product captures a visible
image with each infrared image to exactly show the target area and more
effectively share it with others.
To use the blending function:
1. Push  until
shows in the bottom left-hand corner of the screen.
2. Use / to adjust the blending from 0 % to 100 %.
The blend options are shown in Figure 3.

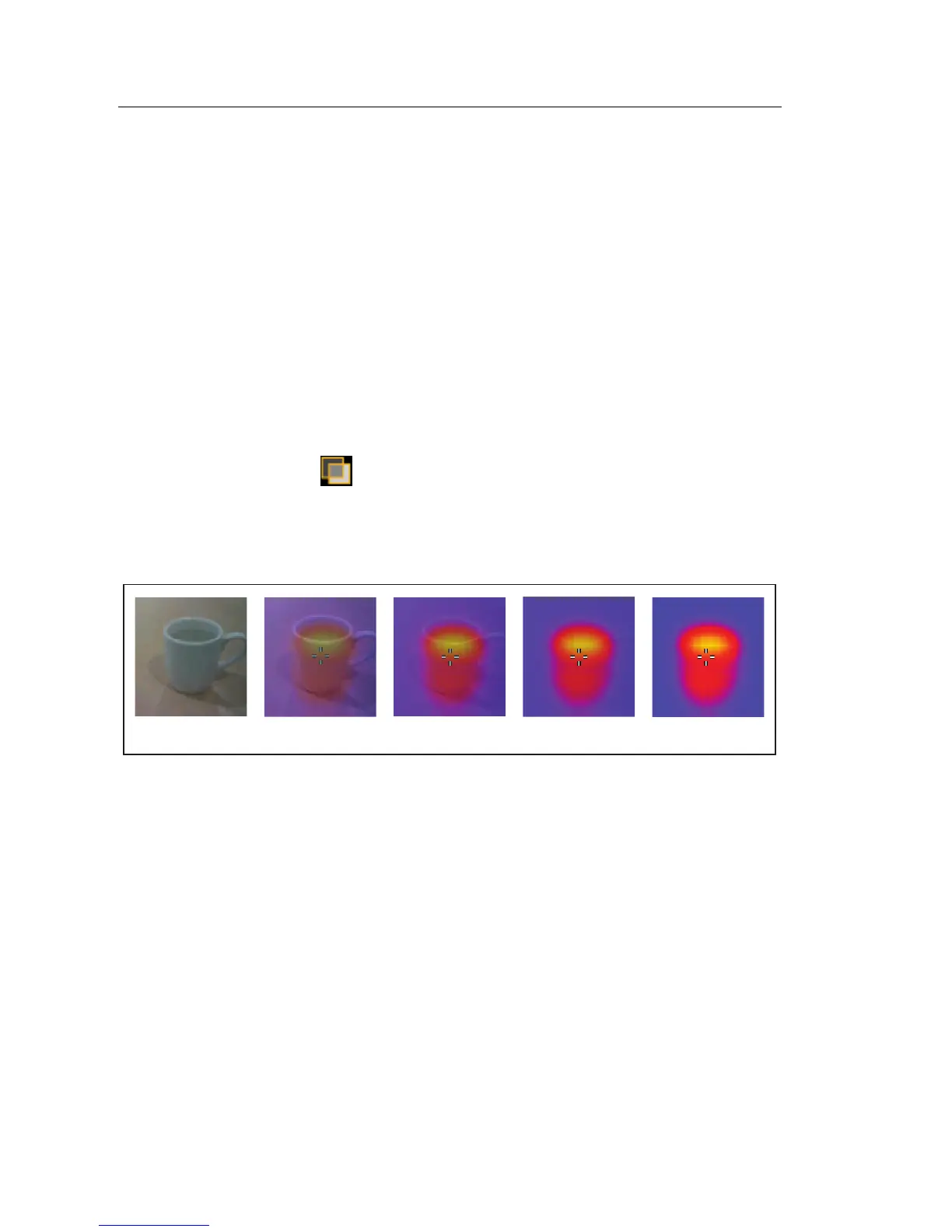

0 % 25 % 50 % 100 %75 %
hak01.eps
Figure 3. Blend Options
Shop for Fluke products online at:
1.877.766.5412
www.MyFlukeStore.com

Fluke VT04 Specifications

General

Type	Infrared environment thermometer
Purpose	-
Placement	Hand
Display type	Digital
Product color	Black, Yellow
Display form factor	Rectangular
Accuracy	2 °C
Clock function	Yes
Spectral response	6.5 - 14 µm
Temperature measurement range	-10 - 250 °C
Temperature measurement units	F, °C
Power source	Battery
Battery voltage	3.6 V
Number of batteries supported	1
Certification	EN 61326:2006, IEC/EN 61010-1:2010
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Battery life	8 h

Weight and Dimensions

Depth	55 mm
Width	75 mm
Height	210 mm
Weight	350 g
