Fluke VT04 User Manual

Visual IR Thermometer
Button Operation
9
Visual Image Alignment Control
The image blending overlay and the visual camera are positioned above each
other in the VT Series. This vertical parallax will change with distance to your
object. To correct the parallax for a near or far distance you have a visual
image alignment control. See Figure 4.
To toggle the control between a near object or far object:
1. Push NEAR () for a measurement distance from 15 cm to 23 cm
(6 in to 9 in).
2. Push FAR () or a measurement distance further than 23 cm/9 in.
The Near or Far icon shows in the upper left corner of the display.
FLUKE CORPORATION
EVERETT, WA USA
US PAT:
www.patentlabel.com/uke
IMAGING IR
THERMOMETER
VT02
FLUKE CORPORATION
EVERETT, WA USA
US PAT:
www.patentlabel.com/uke
IMAGING IR
THERMOMETER
VT02
> 9 in / 23 cm
≤ 9 in / 23 cm
hak19.eps

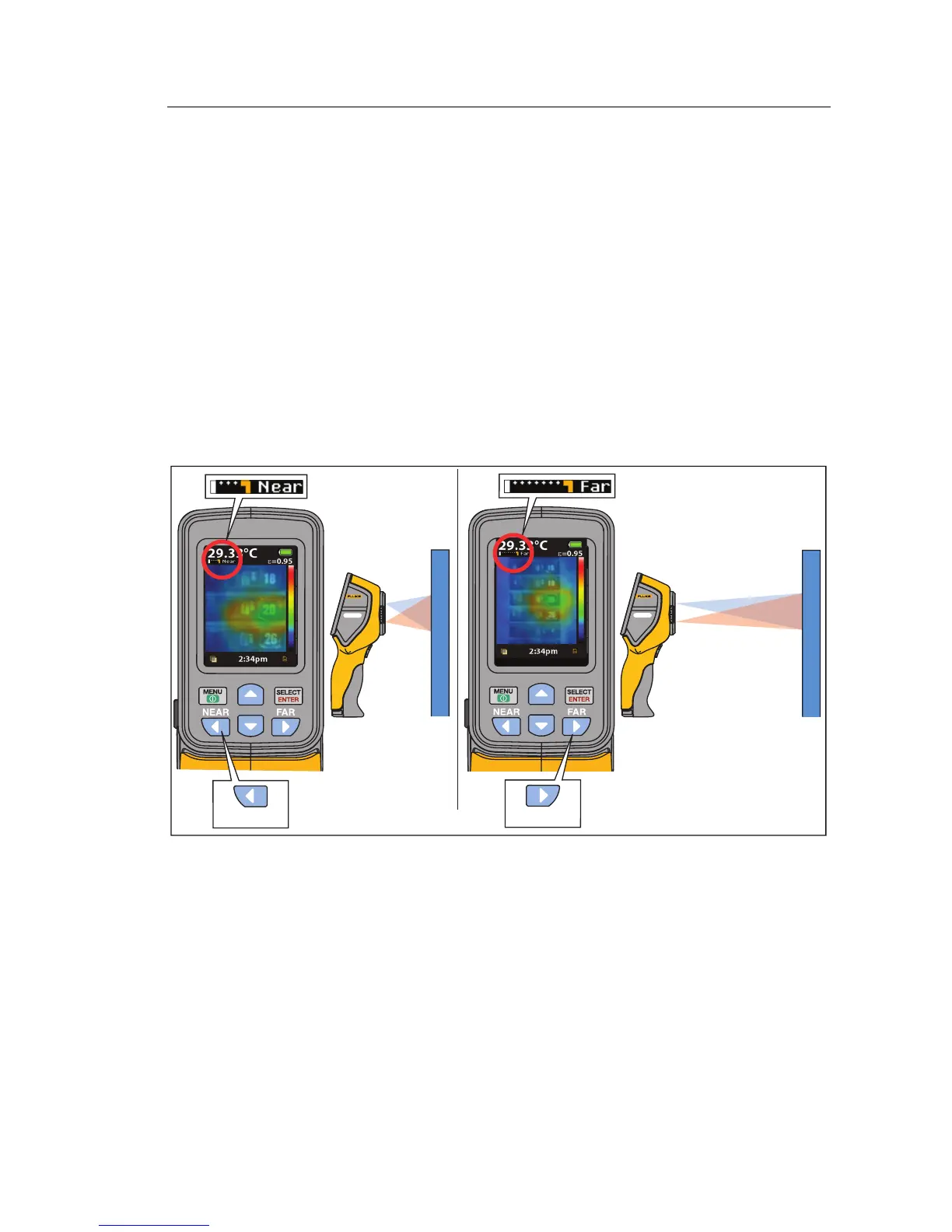

Figure 4. Visual Image Alignment
Shop for Fluke products online at:
1.877.766.5412
www.MyFlukeStore.com

Fluke VT04 Specifications

General

Type	Infrared environment thermometer
Purpose	-
Placement	Hand
Display type	Digital
Product color	Black, Yellow
Display form factor	Rectangular
Accuracy	2 °C
Clock function	Yes
Spectral response	6.5 - 14 µm
Temperature measurement range	-10 - 250 °C
Temperature measurement units	F, °C
Power source	Battery
Battery voltage	3.6 V
Number of batteries supported	1
Certification	EN 61326:2006, IEC/EN 61010-1:2010
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Battery life	8 h

Weight and Dimensions

Depth	55 mm
Width	75 mm
Height	210 mm
Weight	350 g
