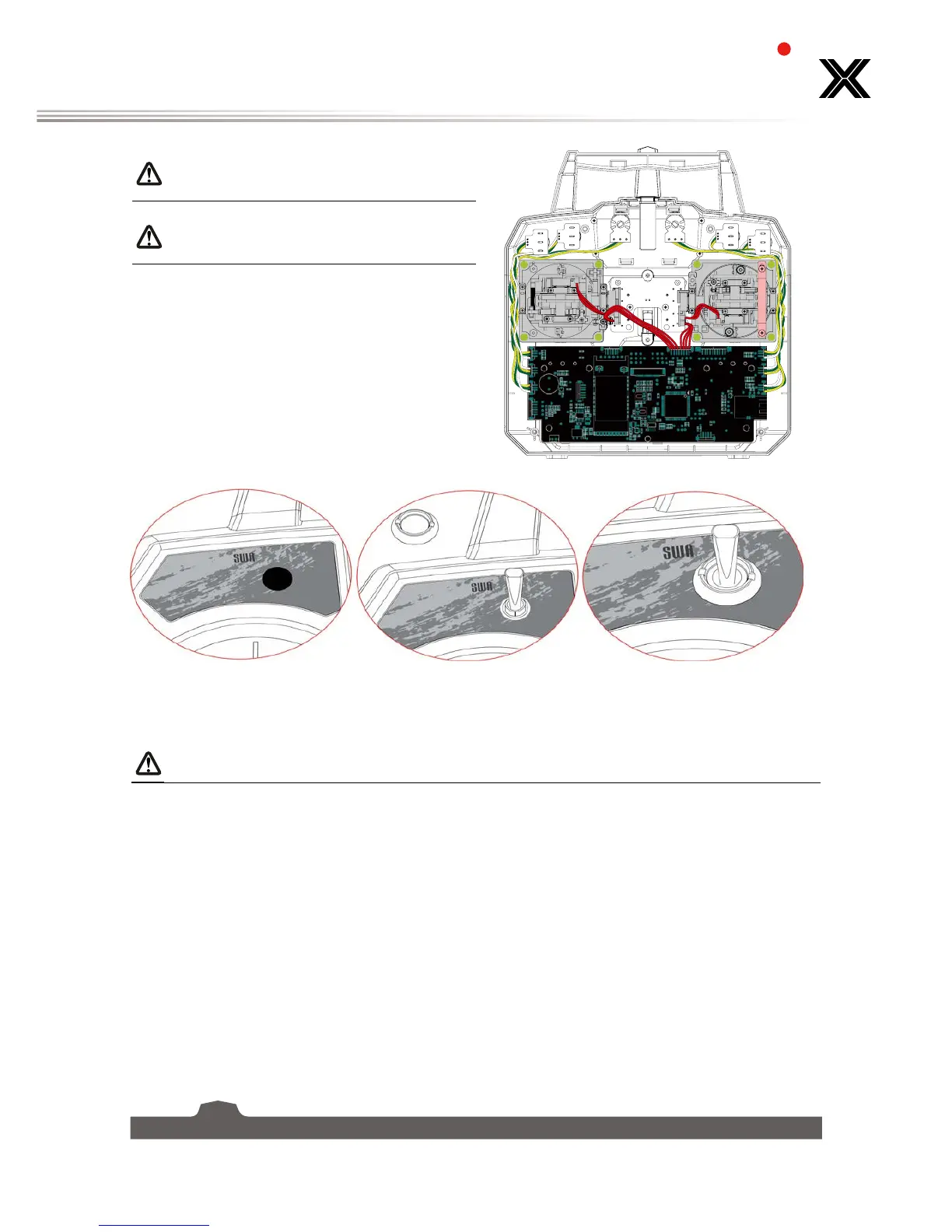

Note
• Make sure that the wires are
fitted along beside each of
the gimbals as show right.
Note
• Make sure that all switches
are installed with the correct
orientation shown right.
5. On the circuit board each channel is labled, making it easy to find the correct channel. Follow the
cables leading from each connector to identify which switch or knob goes to each channel.
6. Carefully remove the desired connectors from the board.
Note
• Do not pull on the wires themselves, doing so may damage the connector or
wire.
7. Replace the desired switch/knob connectors into the corrsponding channel slot.
8. Put the back cover back in place, and squeeze the handle until the two pieces click together.
9. Replace the cover screws.
Setup:
1. Take the transmitter apart following the above instructions.
2. Remove the toggles connector from the circuit board.
3. Unscrew the plate holding the toggle in place on the front of the transmitter.
