2.2.1 Transmitter Antenna
Warning
• For best signal quality, make sure that the antenna is at about a 90 degree angle
to the model. Do not point the antenna directly at the receiver.
Danger
• Never grip the transmitter antenna during operation. It significantly degrades
the RF signal quality and strength and may cause loss of control.
2.2.2 Battery Indicator
The status indicator is used to indicate the power and status of the transmitter and receiver. If a receiver is
not connected or bound to the transmitter no battery status will be displayed for the receiver.
2.2.3 Trims
There are 4 trims affecting stick functionality, one for ailerons (Channel 1), elevator (Channel 2), throttle
(Channel 3) and rudder(Channel4). Each time a trim is toggled, the trim will move one step. It is possible to
make quicker trim adjustments by holding the trim in the desired direction. When the trim position reaches
the middle, the transmitter beeps in a higher tone.

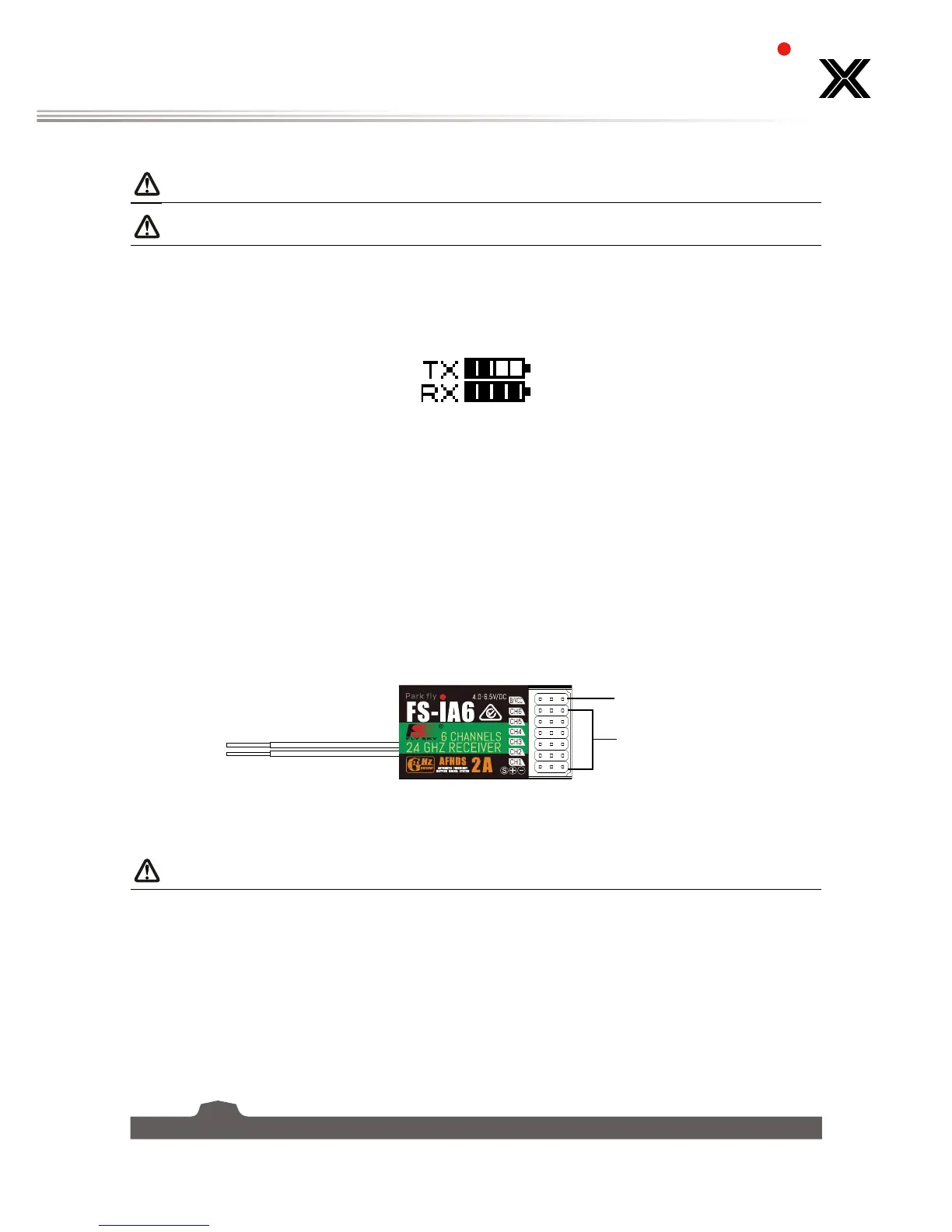

2.3 Receiver Overview
2.3.1 Receiver Antenna
Attention
• For best signal quality, ensure that the receiver is mounted away from motors
or metal parts.
Antenna
B/VCC
To Servos
