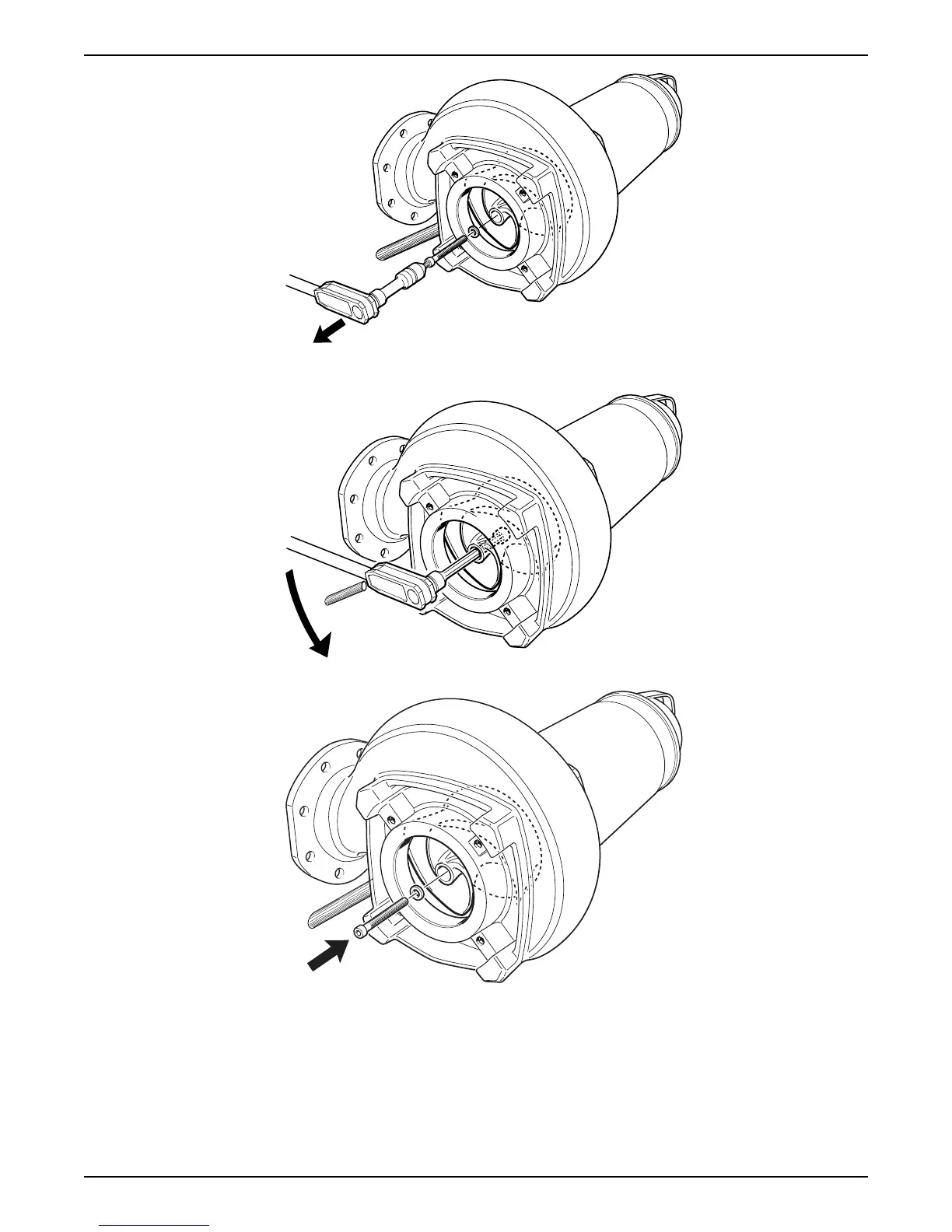

d) Turn the adjustment screw counterclockwise until the impeller breaks free from
the shaft.
e) Hand-tighten the impeller screw to prevent it from falling off.
f) Remove the rod.
3. Raise the pump.
4. Remove the drive unit from the pump housing:
a) Remove the pump housing screws.
Maintenance
48 Flygt 3202 Installation, Operation, and Maintenance Manual
