FLYGT 3202 - Page 51

WS006264A

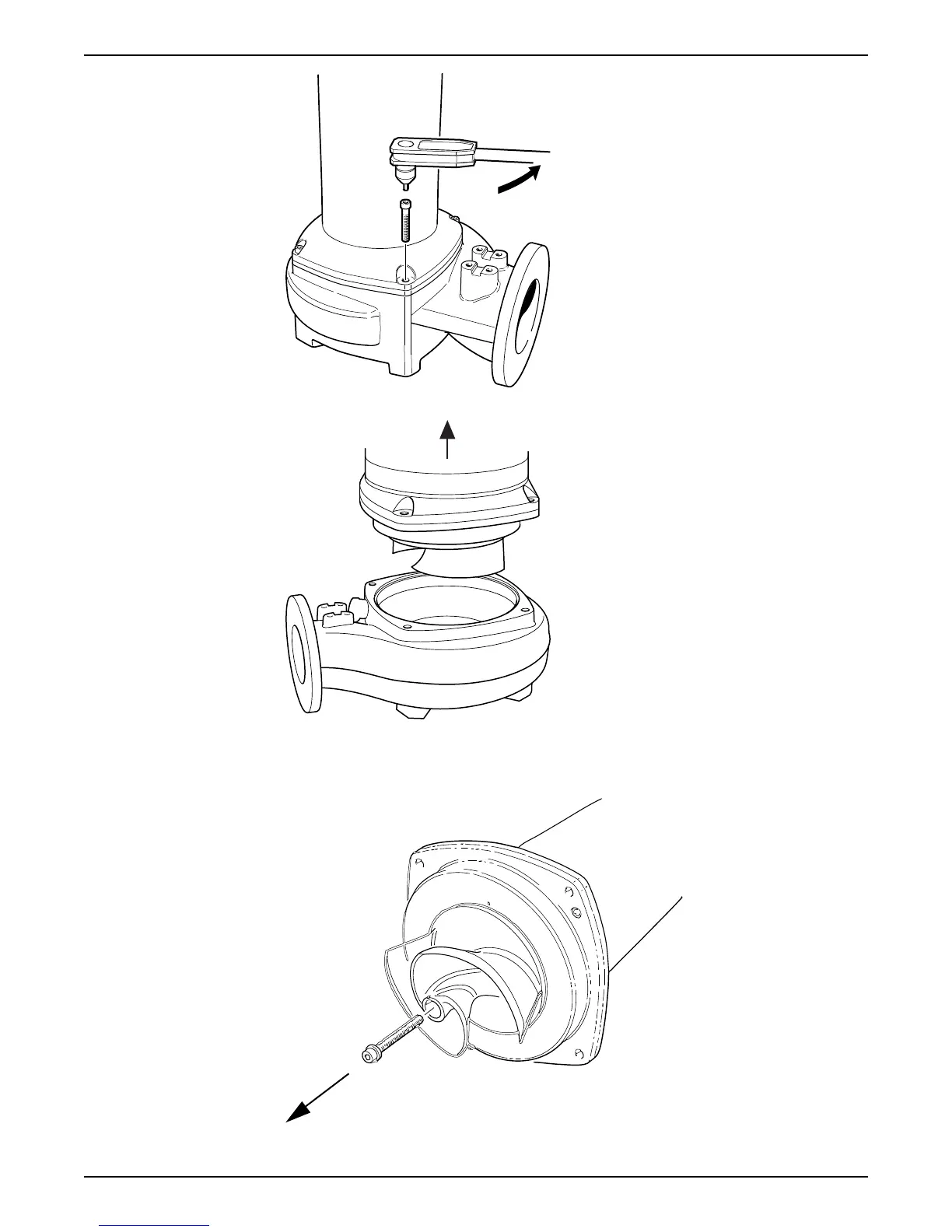

b) Remove the drive unit from the pump housing.
WS001477A
5. Remove the impeller:
a) Place the drive unit horizontally.
b) Remove the impeller screw.
WS006263A
c) Remove the impeller and the conical sleeve.
Maintenance
Flygt 3202 Installation, Operation, and Maintenance Manual 49
