FlyTech POS485 - 3-3. HD Replacement

7

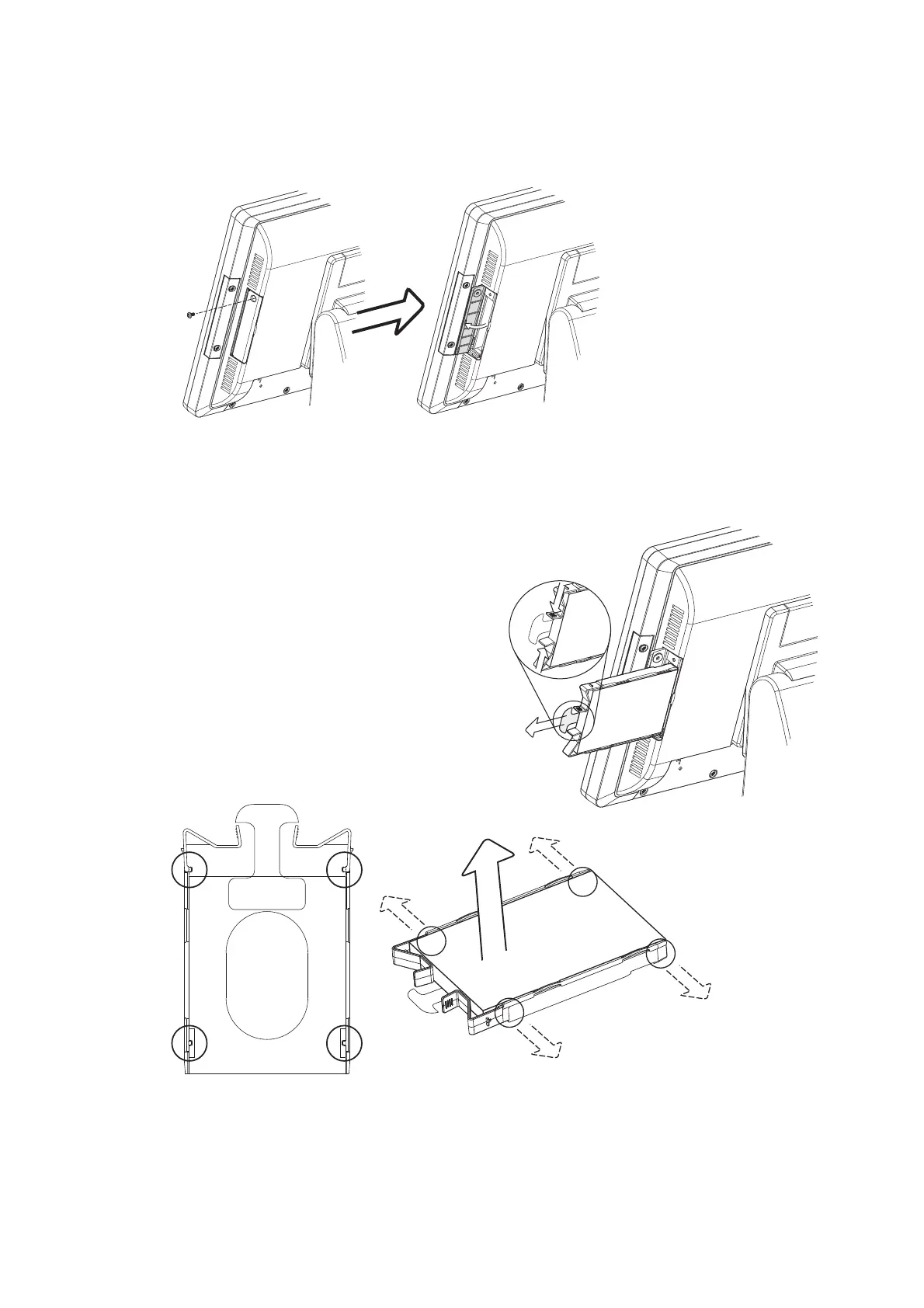

To remove the HDD from the System:
1. Power the system down.
2. Remove the screw(x1) from the HDD door.
3. Open the HDD door.
4. While pinching the HDD bracket tabs
pull the HDD from the system. For
easier removal pull the plastic puller
(see picture) at the same time.
3OHDVHUHPRYHWKHFXUUHQW+''ÀUVW
Disassemble HDD
1. To release the HDD from the bracket gently pull it open until the four pins are
removed.
3-3.
HD Replacement
