FlyTech POS485 - 4-7-1. For D36; D86 S Motherboard

16
4-7.
Cash Drawer Installation
You can install a cash drawer through the cash drawer port. Please verify the pin
assignment before installation.

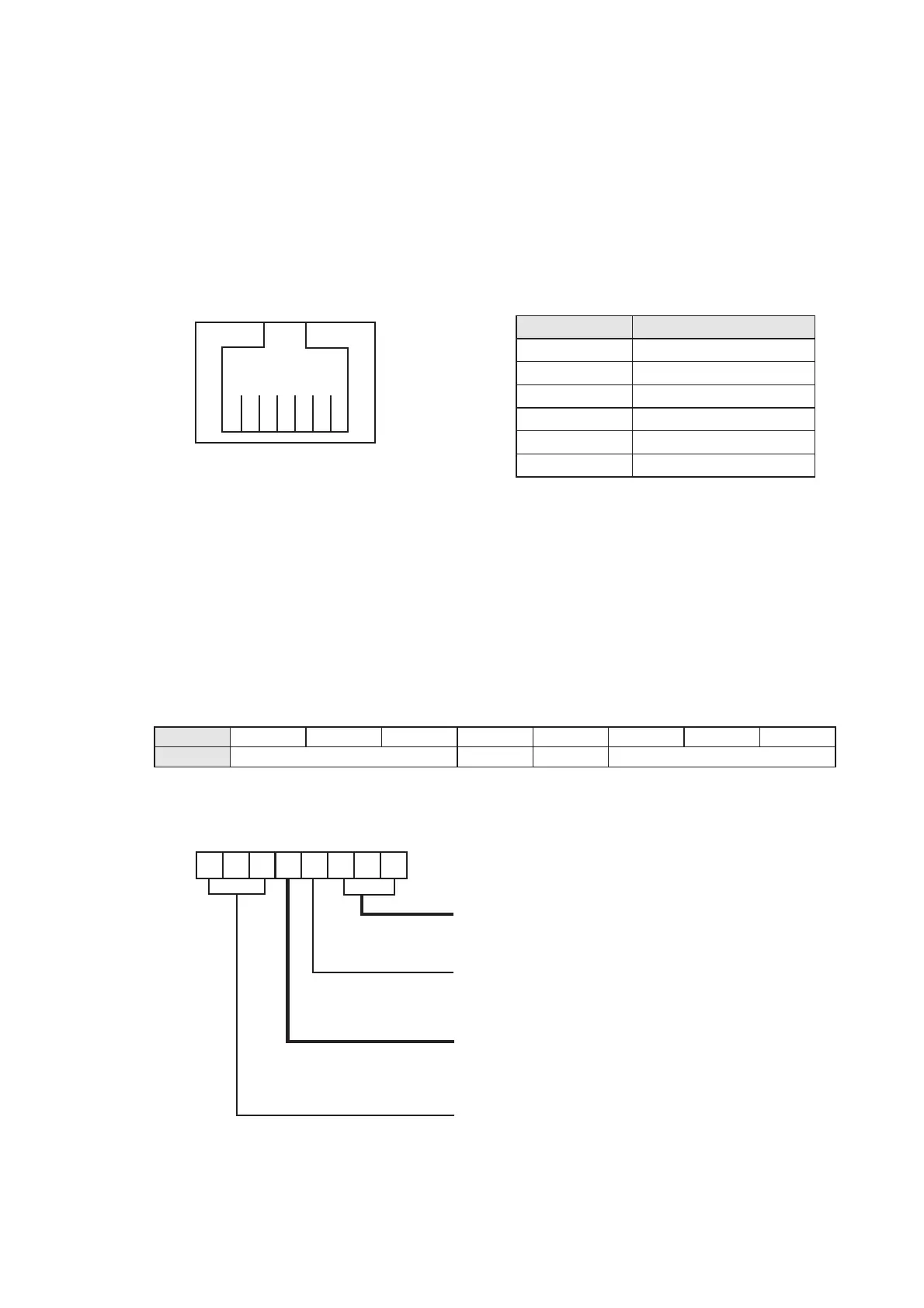

Cash Drawer Pin Assignment
Pin Signal
1 Cash drawer 2 In
2 Cash drawer 1 Out
3 Cash drawer 1 In
4 12V / 19V (or 24V)
5 Cash drawer 2 Out
6GND
1
6
Cash Drawer Controller Register
The Cash Drawer Controller use one I/O addresses to control the Cash Drawer.
Register Location: 0x482h
Attribute: Read / Write
Size: 8bit
BIT BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0
Attribute Reserved CD1 Out CD1 In Reserved
4-7-1.
For D36 / D86S Motherboard
43210
X
X X
Reserved
Cash Drawer 1 pin input control.
Cash Drawer 1 pin output control
Reserved
765
X
X
X
