9
Removing a RAM module
1. To remove the module pull the
ejector clips out of the side of the
module.
2. Slide the memory out of the slot.
3-5.
RAM Replacement
1. Follow the steps in Chapter 3-4 to
open the system.

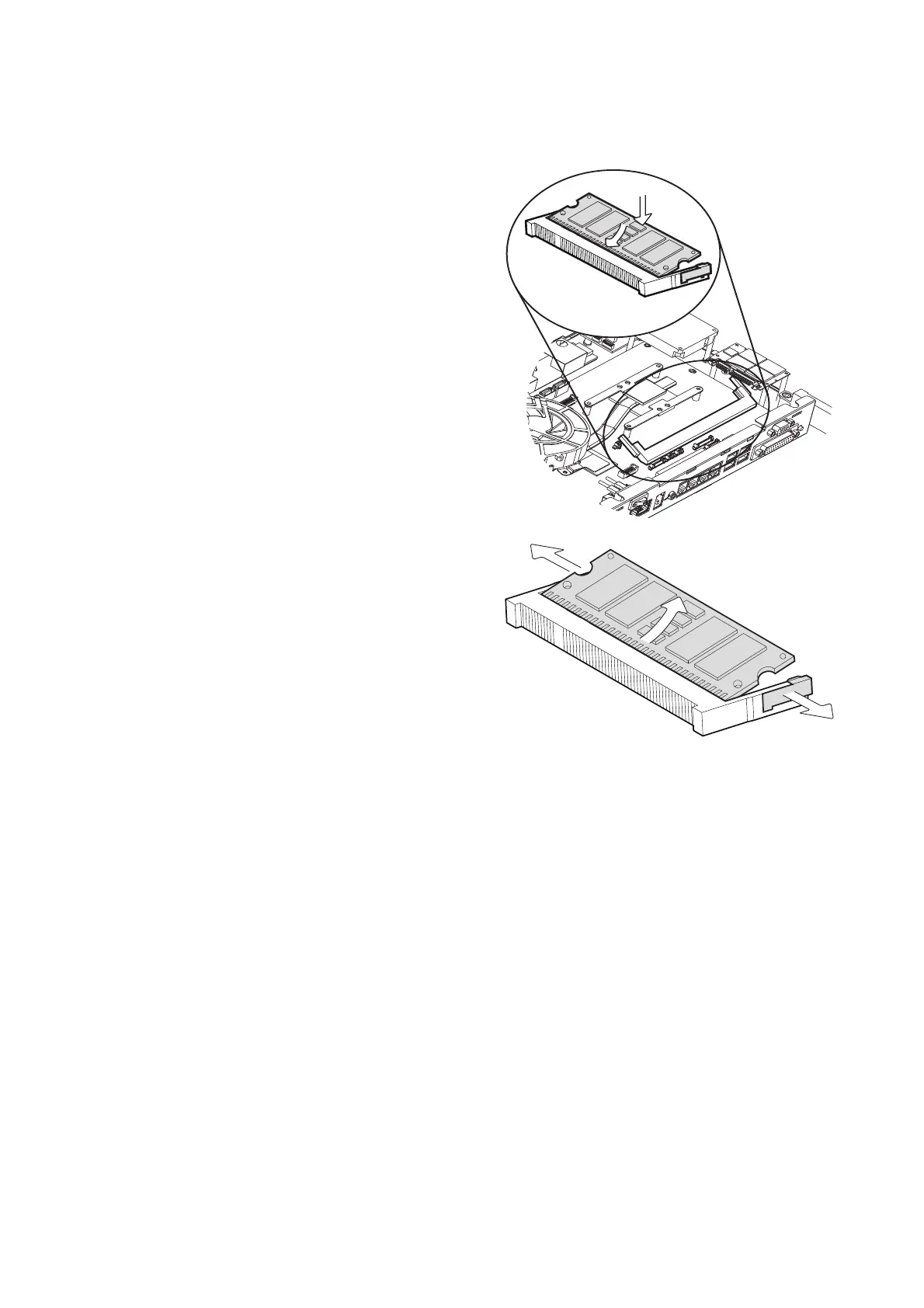

2. The RAM is located on the right side
of the system (see picture).
Installing a RAM module
3. Slide the memory module into the
memory slot and press down until it
locks in place.
