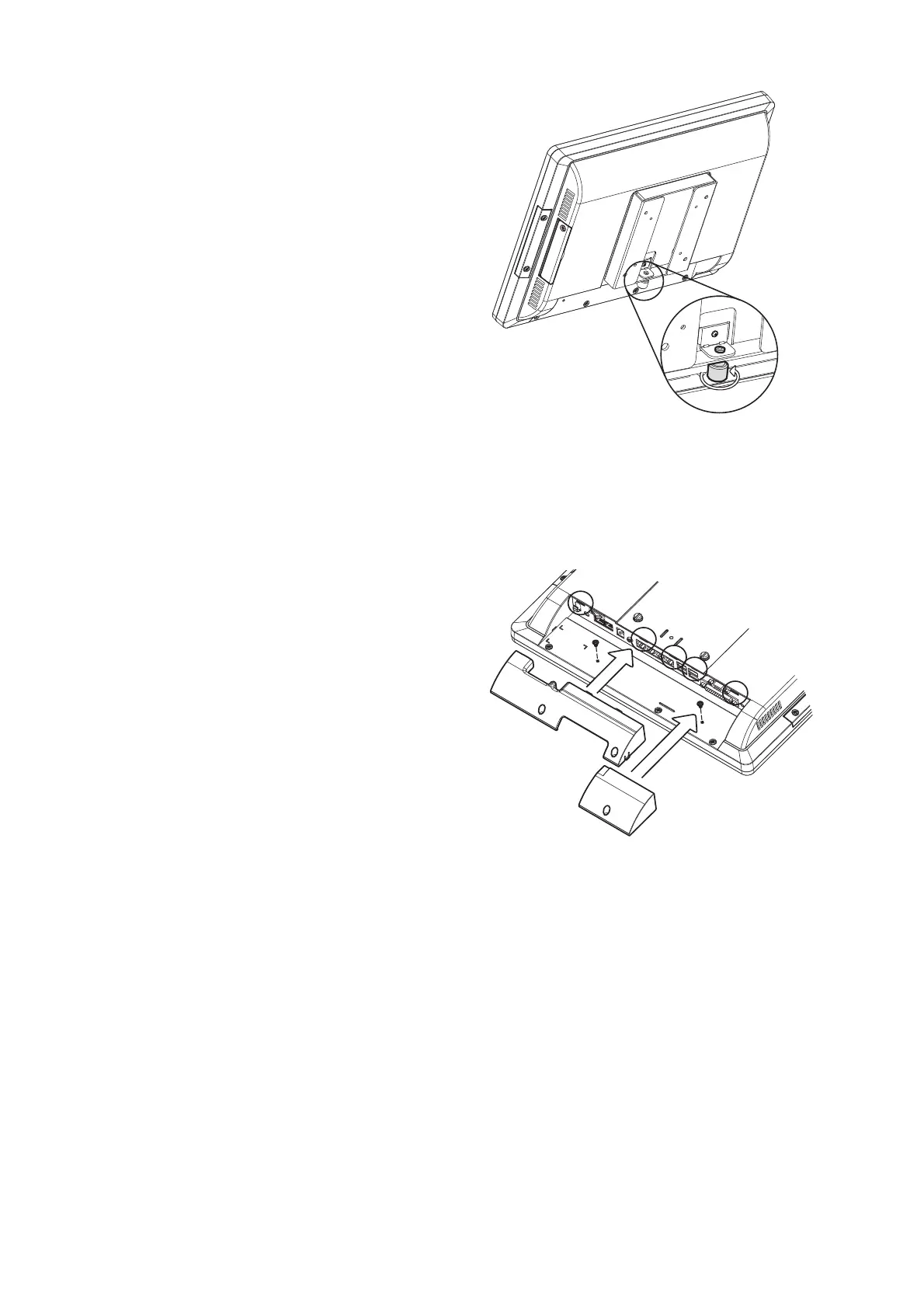

Cable Cover Installation
1. Slide the covers on the IO panel, if
using both covers the large cover
needs to be installed before the
smaller one.
2. Fasten the screws (x3, two for the
larger one and one for the smaller
one) to secure the covers.
There are two different cable covers. These can be utilized separately or together.
When both are needed, please take care that they are installed in the correct order.
4. Fasten the screw (x1) through the
metal bracket to secure the wall
mount kit.
