FlyTech POS485 - 4-3. VFD Installation

12
4-3.
VFD Installation

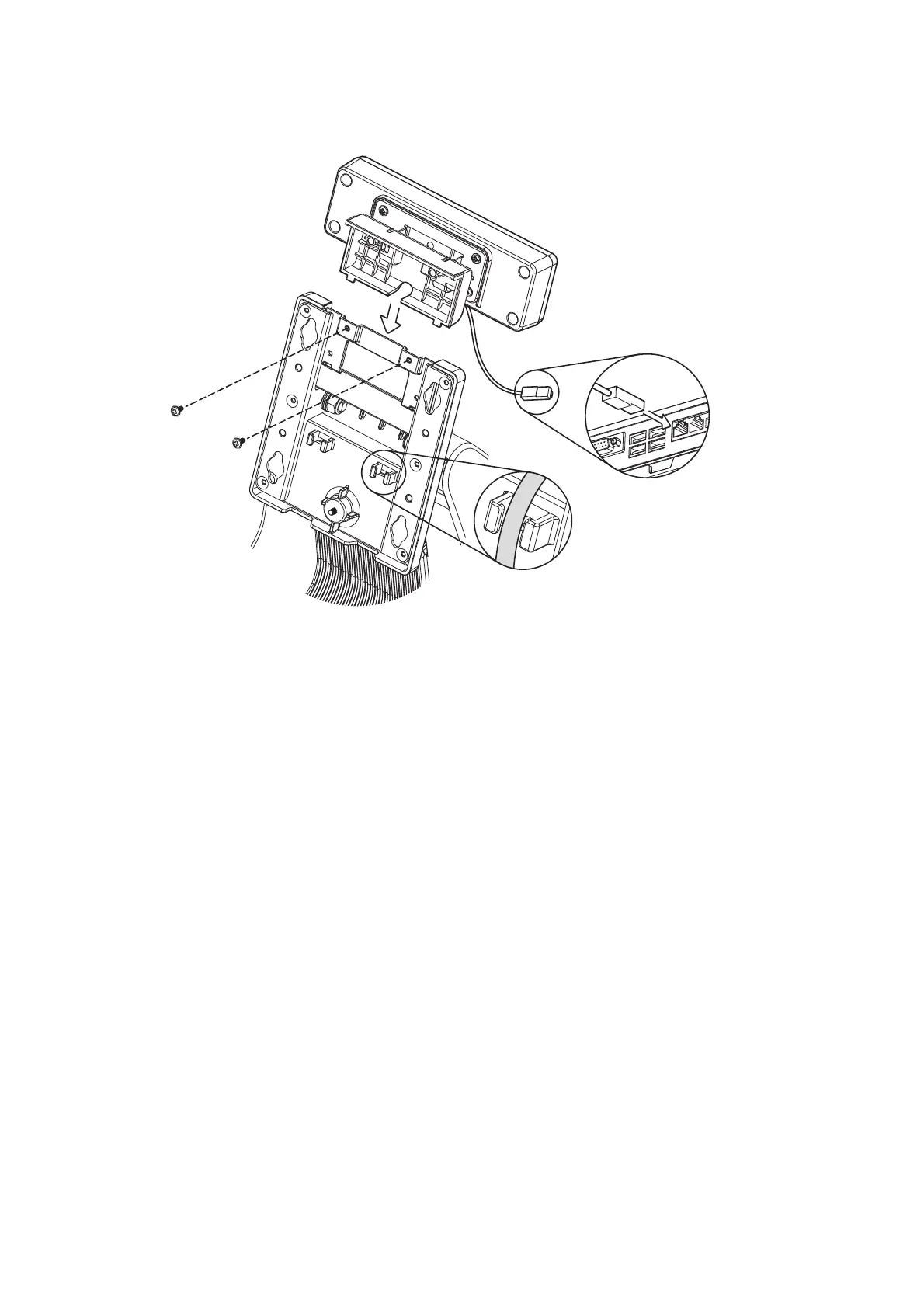

1. Follow steps in Chapter 3-1 to disassemble the system stand.
2. Attach the VFD module to system by fastening the screws (x2).
3. Route the cable through cable mangement on the system stand.
4. Connect the RJ-45 cable to COM port on the systems IO panel. Make sure the
system is powered off.
