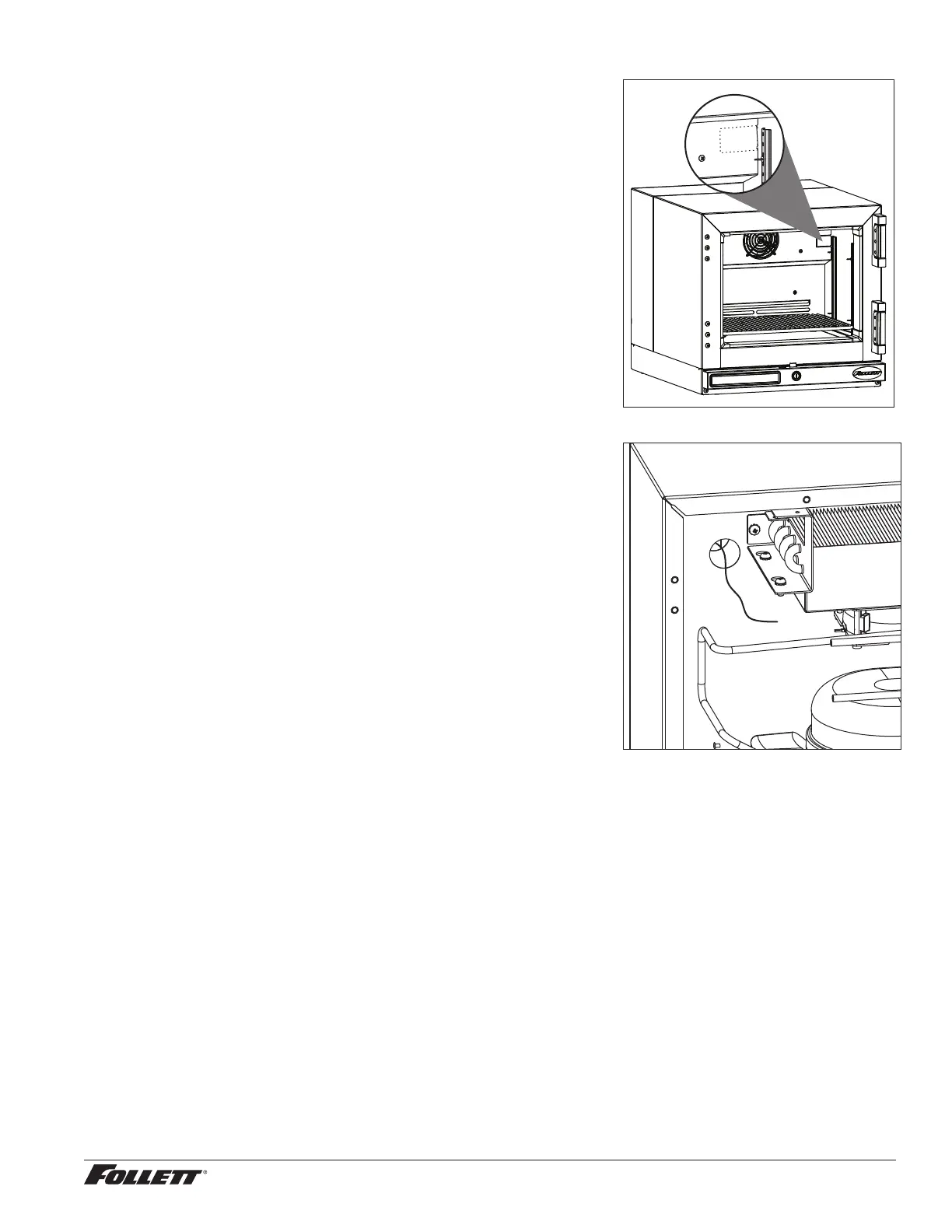

4. From inside the refrigerator, push and fold the perforated cut
out located on the inside, upper-right hand corner (Fig.18).
5. Use a long screwdriver or drill to create a hole (up to 1"
(25.4mm) diameter) through the exposed foam insulation.
6. From inside the refrigerator, feed non-probe end of wire through
opening (Fig. 19).
7. Secure probe to interior cabinet wall to avoid product
interference.
8. Gently pull on non-probe end of wire to remove slack from
inside of refrigerator.
9. Use Permagum* or equivalent sealant to replace foam
insulation (removed in Step 5) to ensure proper performance of
refrigerator.
10. Remove any debris that may have fallen into the drain pan or
condensor area.
11. Route non-probe end of wire through appropriate ventilation
hole in refrigerator rear panel.
12. Reinstall the rear panel.
13. Connect non-probe end of wiring to monitoring device.
14. Plug in the refrigerator and return the power switch to ON.
* Permagum is a registered trademark of the Presstite Engineering Company.
Fig. 18
Fig. 19
REF1/REF2 Compact Refrigerators 11
