Installation
Locating the Refrigerator

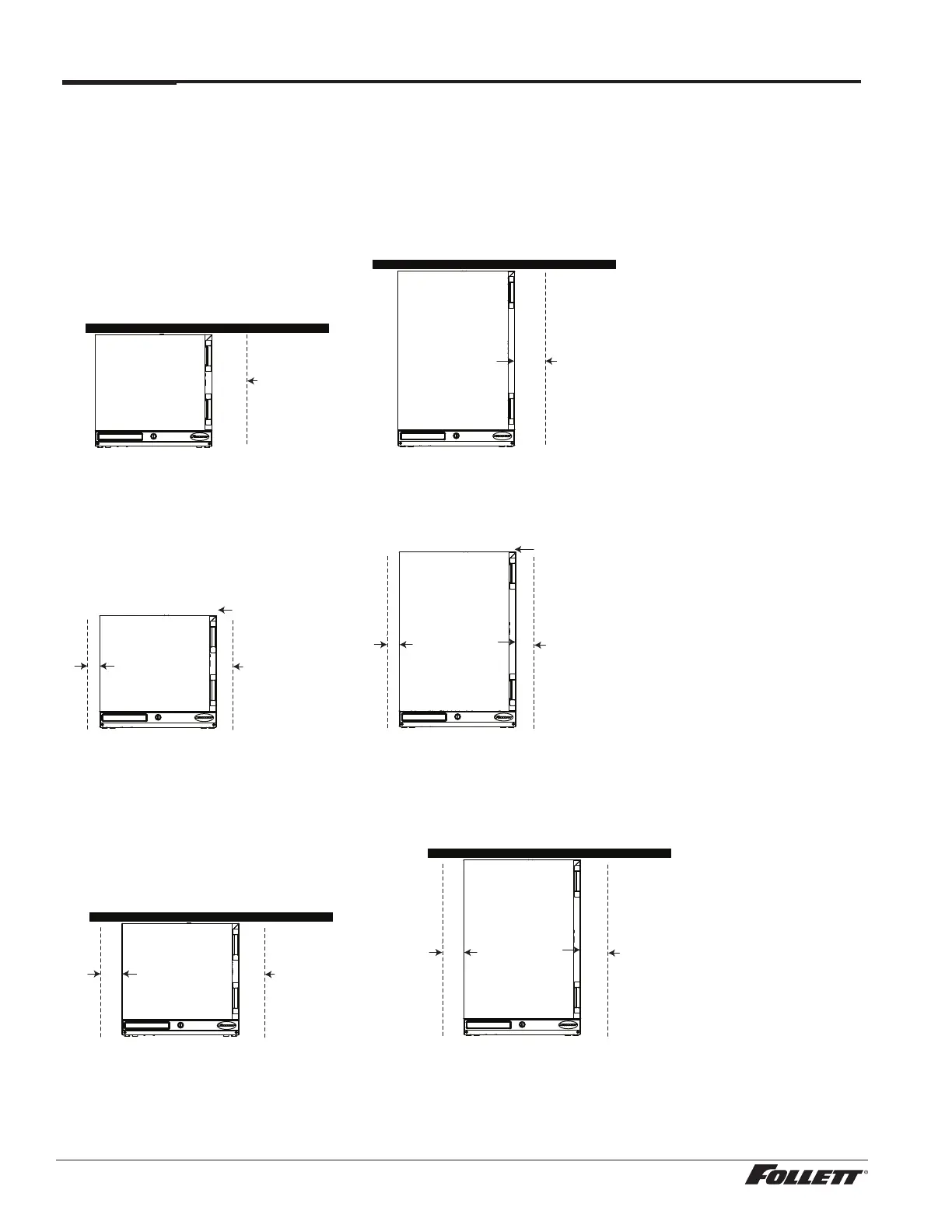

Performance of REF1 and REF2 is affected by ambient temperature and location. To ensure proper
performance, please refer to the following drawings and conrm that the clearance requirements are met. There
is no clearance requirement for the back of the refrigerator so it can be placed against the wall.
80 F (27 C) and 60% RH – located under overhanging cabinet or shelf with zero top clearance
Requires 6" (15.3 cm) clearance on either right or left side
SHELF
6" (15.3 cm) minimum air
clearance required right
or left side
6" (15.3 cm) minimum air
clearance required right
or left side
SHELF
80 F (27 C) and 60% RH – unrestricted topclearance location
Requires 2" (5.1 cm) clearance on both sides and unrestricted top clearance (12" (30.5 cm) min above unit)
UNRESTRICTED TOP
CLEARANCE
2" (5.1 cm) minimum air
clearance required on
both sides
2" (5.1 cm) minimum air
clearance required on
both sides
UNRESTRICTED TOP
CLEARANCE
100 F (38 C) – maximum temperature location with zero top clearance
Requires 6" (15.3 cm) clearance on both sides
6" (15.3 cm) minimum air
clearance required on
both sides
6" (15.3 cm) minimum air
clearance required on
both sides
SHELF
SHELF
4 REF1/REF2 Compact Refrigerators
