7. Remove screws holding lock strike-bracket at "bottom" inside of
door (Fig. 9.1).
8. Remove screws from inside of door "top" and install bracket.
9. Plug "bottom" holes with retained screws and install lock strike-
bracket to "top" inside of door (Fig. 9.2).

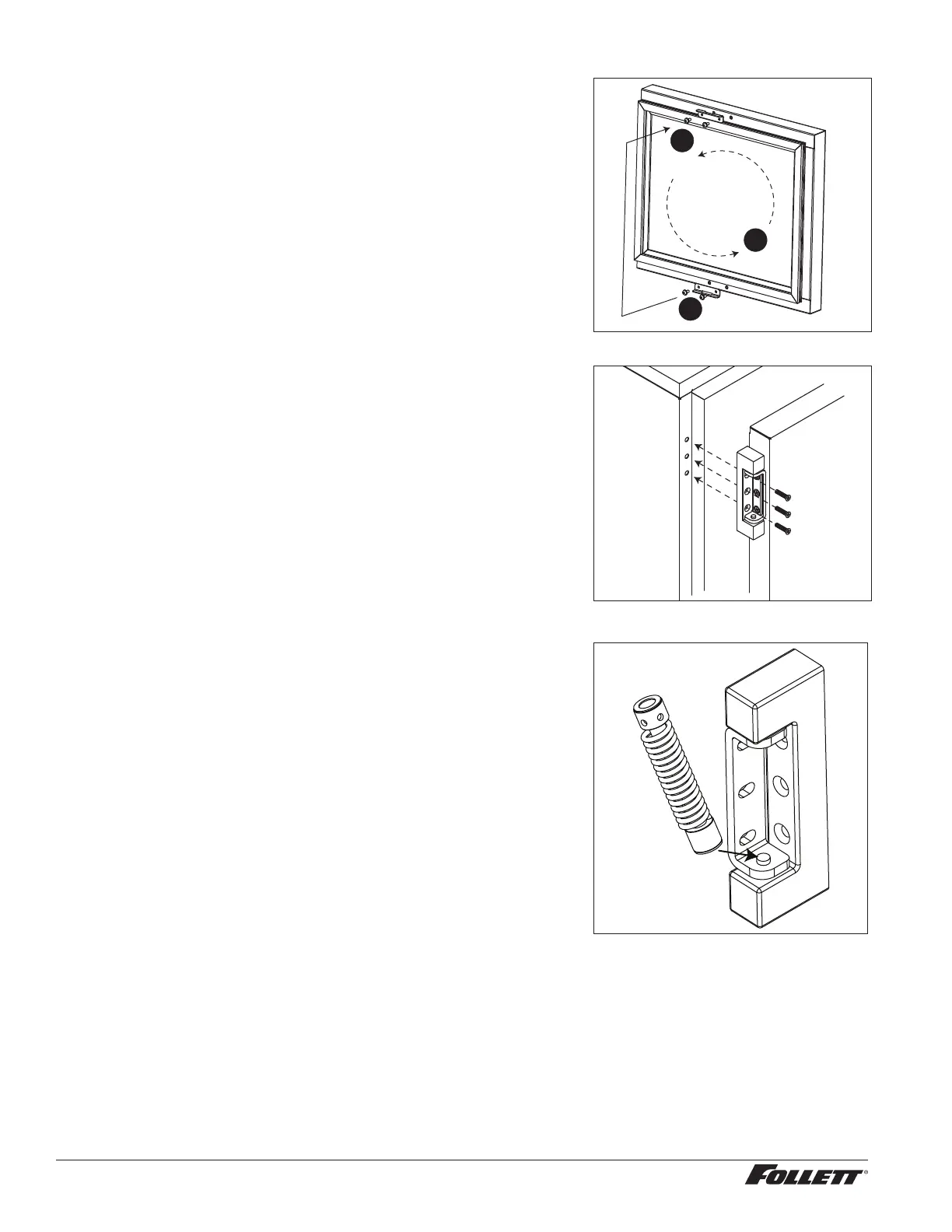

10. Reverse door 180° so that lock strike-bracket is on the bottom
inside of door (Fig. 9.3).
Fig. 9
1
2
3
11. Reinstall the door on the opposite side of the doorframe. Adjust
if needed.
12. Reinstall screws (torqued to 25 in-lbs) (Fig. 10).
Fig. 10
13. Insert bottom of spring kit onto bottom hinge pin (Fig.11). Fig. 11
