Forma Scientific, Inc.
_________________________________________________________________________
5-6
e. Pressure Low Indicating Lights
The two red indicating lights, labeled "Pressure Low," indicate when a supply tank is
depleted. If both tanks are depleted both red indicating lights will be lit.
f. Start-Up Procedure
1. Turn the CONTROL switch on.
2. Select the active tank using the SILENCE switch.
5.5 CO
2
MODULE (Refer to Figure 5-4)
a. CO
2
Power Switch
The CO
2
power switch controls the electrical power to the CO
2
system, and it must be
ON when the incubator is to be operated with CO
2
. The switch should be turned on as
soon as power is applied to the unit to allow the CO
2
system to warm up.

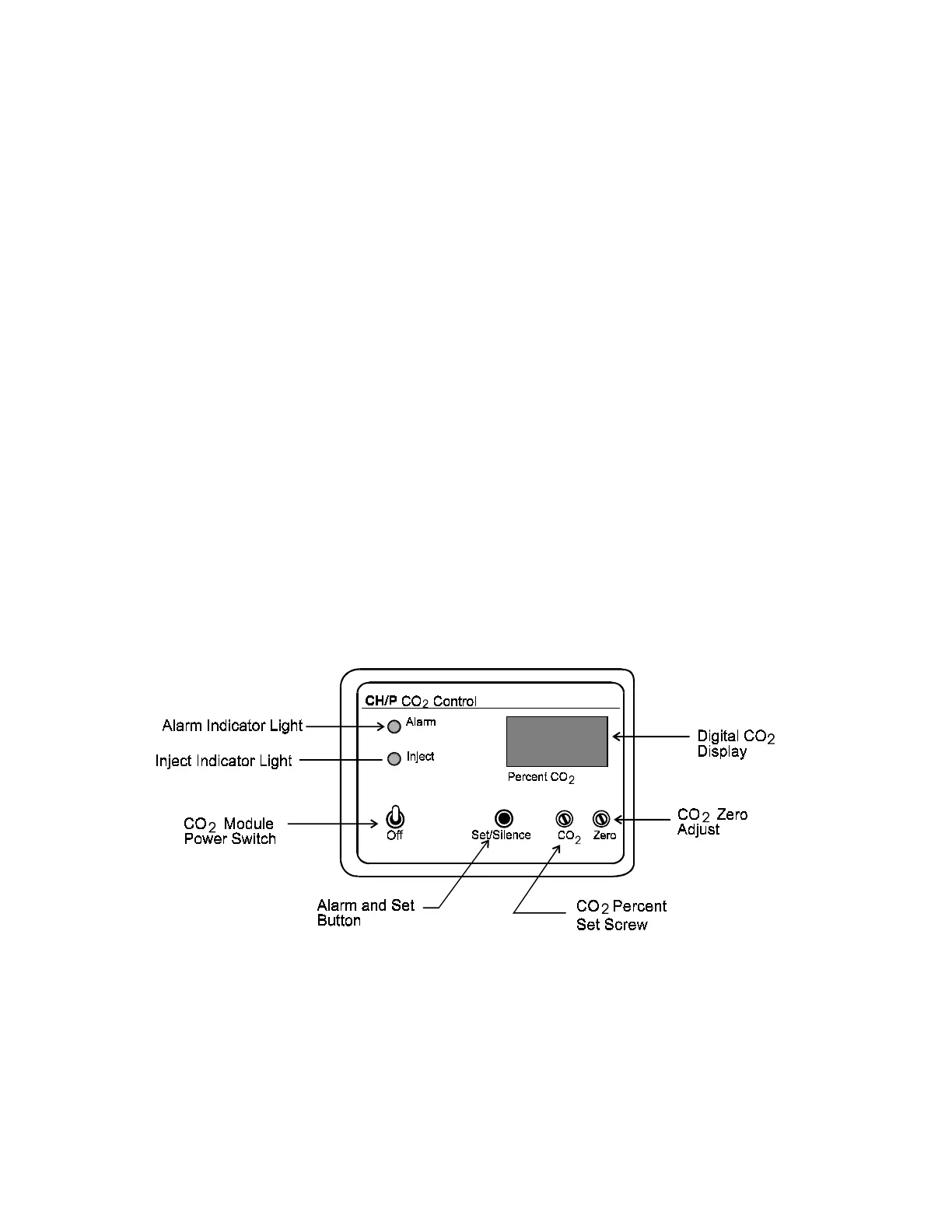

CO
2
Control Module, Figure 5-4
