Forma Scientific 3158 - Recorder Output

Forma Scientific, Inc.
_________________________________________________________________________
5-11

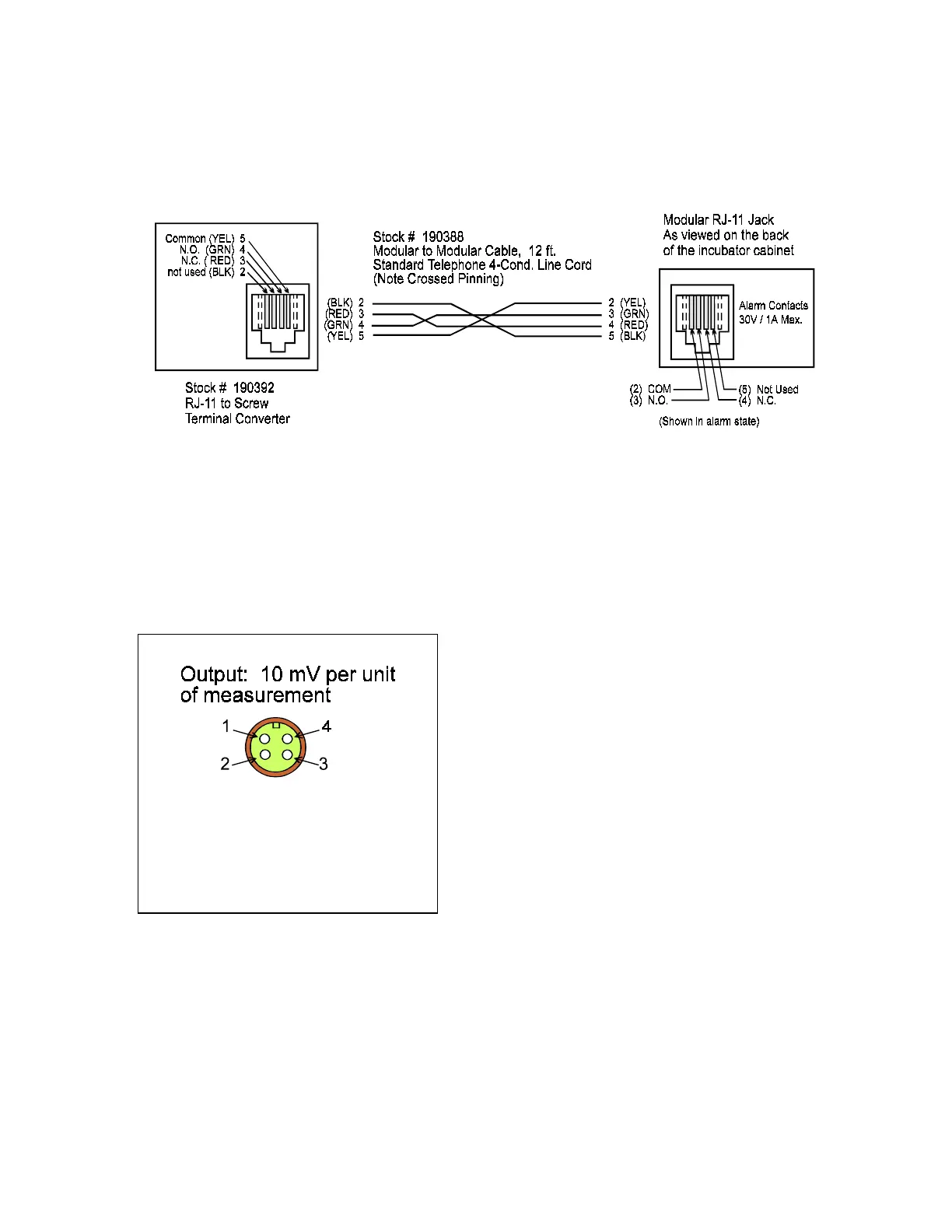

Remote Alarm Relay Wiring Diagram
Figure 5-7
5.8 RECORDER OUTPUT
1 = Common
2
3 = Temp
4 = CO
2
Incubator temperature and CO
2
information may be directed to a recorder or
other data storage device from a four-pin
connector located on the back of the control
panel. The connector pin numbers are
identified in Figure 5-8 and are arranged as
they would be seen looking at the back of the
cabinet.
Recorder Output Jack
Figure 5-8
