Premier Diagnostic Platform i70Pro User's Manual V1.01
To build Bluetooth connection:
1. Power up the tablet.
2. Go to VCI Manager and then Bluetooth. Click Connect and the VCI dongle
will connect to the tablet automatically.

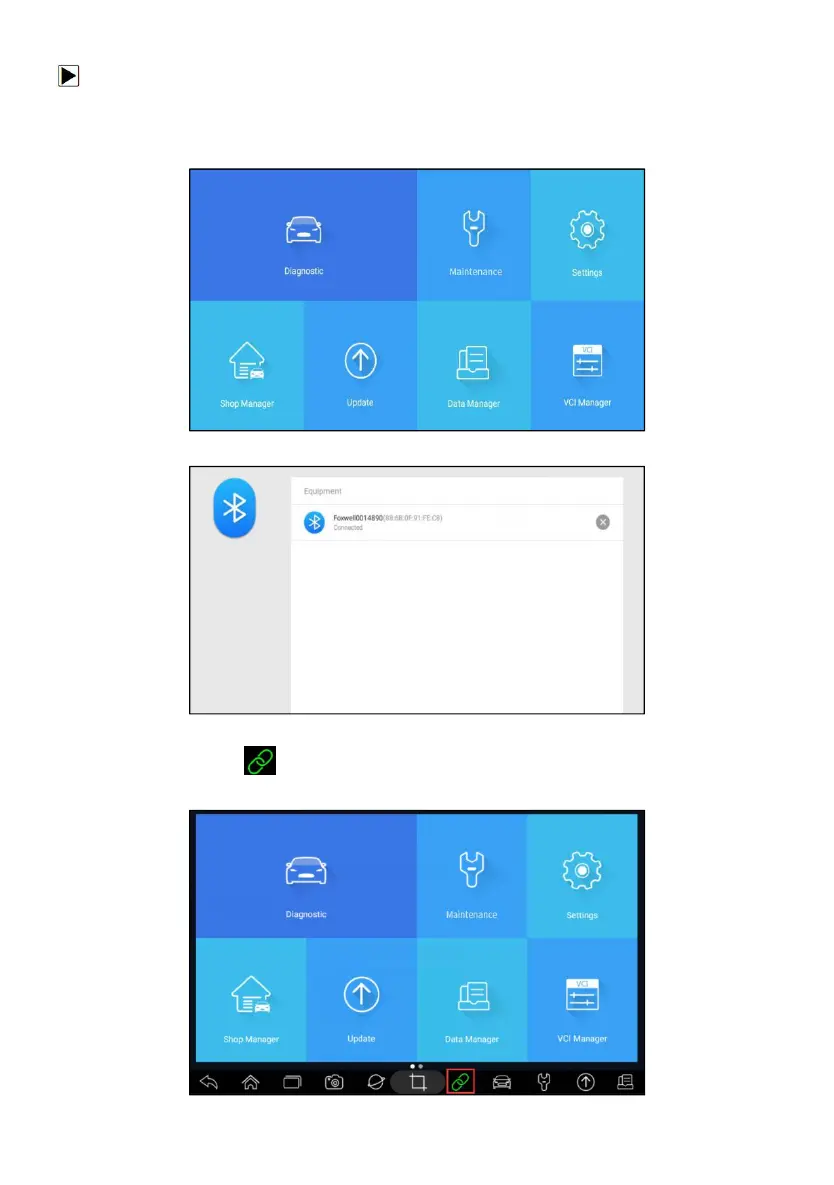

Figure 3-4 Sample VCI Manager Screen
Figure 3-5 Sample Bluetooth Connection Screen
3. Check if the button at the toolbar turns to green. If yes, it means it’s
ready to start diagnosis.
