F3D3 Series Service Manual - General Service Instructions / Section 2.1
Questions? Call Franke Technical Support Group For Your Area. -1- Copyright 2012 Franke, Inc. All rights reserved.

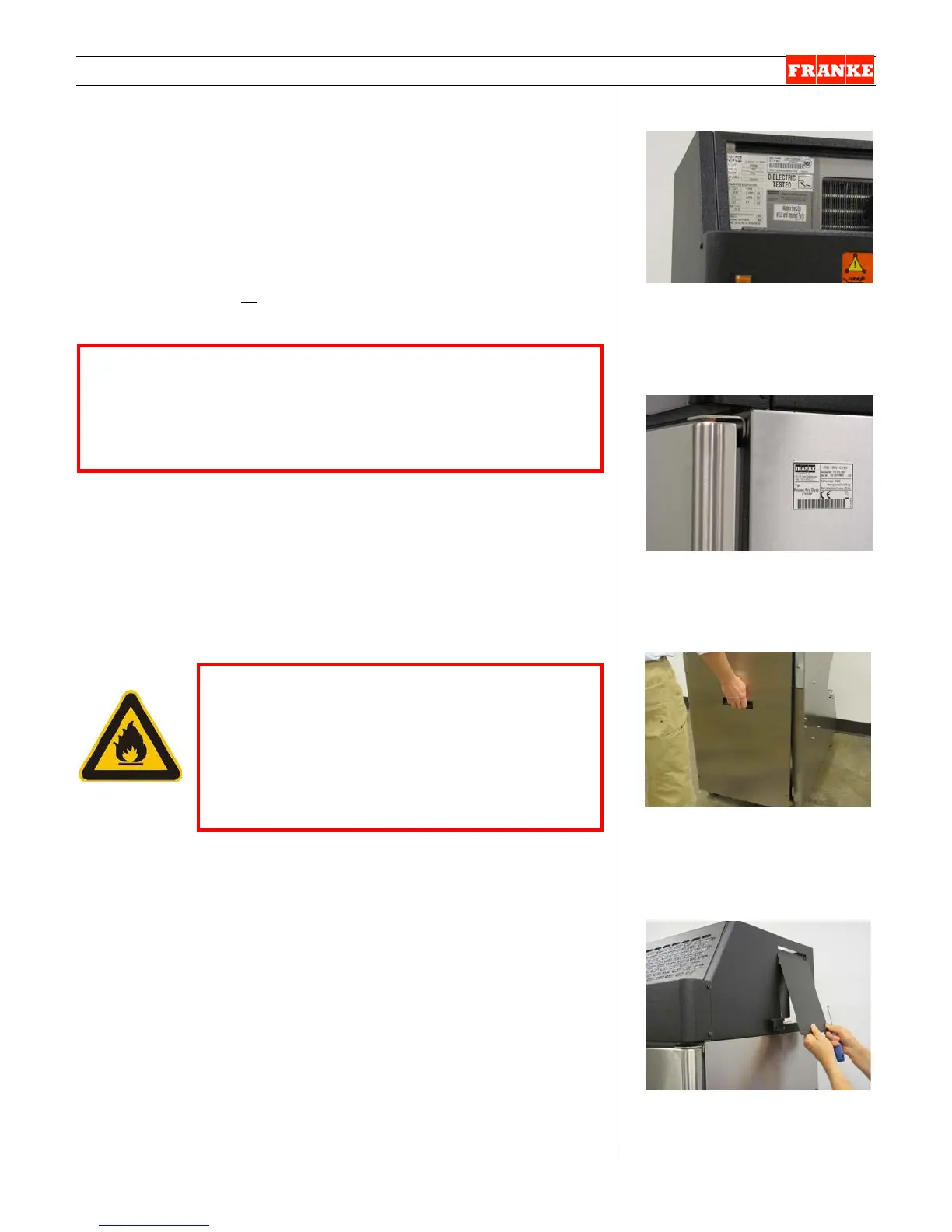

2.1 Introduction To F3D3 Series Field Service
The Basics:
1) Technicians should be authorized to work on Franke
Equipment and be qualified to diagnose and repair
refrigeration equipment.
2) The F3D3 Series Freezer/Dispensers operate on
120VAC/60Hz or 230VAC/50Hz power and are provide
with a grounded plug and 3-meter [10 foot] power cord.
3) F3D3/S Models refrigeration systems are charged with
ozone-safe R404A refrigerant. Only use R404A
refrigerant when recharging this unit.
4) F3D3P/SP Models refrigeration systems are charged
with R290 Propane refrigerant. It is strictly forbidden
to test or repair the F3D3P Refrigeration System.
5) Always verify proper removable component assembly,
proper unit cleaning and correct use of controls by unit
operators, before replacing or repairing components.
6) The F3D3 Series Compressor Package is top mounted;
and may require use of a sturdy ladder to access
components, check for leaks or replace compressor.
F3D3/S Unit Data Plates
F3D3/S Unit Serial Number is
located on data sticker mounted
left of condenser coil. Lift off
vented panel & remove filter.
F3D3P/SP Unit Data Plate
F3D3P Unit Serial Number is
located on data sticker mounted
top-left on right side panel.
Rear Service Access Panel
After removing the four Phillips
screws, lift panel up and out to
provide access to rear-mounted
components.
Right Service Access Panel
Service start relay & capacitor
via right-side access panel
Unplug unit from power source whenever servicing
electrical components or removing the rear service access
panel. Failure to unplug this unit may result in electric
shock, burns or death.
PROPANE IS HIGHLY FLAMMABLE. In the
event of refrigeration system problems,
contact Franke Technical Support. If
necessary, the F3D3P Fries Freezer
Dispenser will be picked up and taken to a
Franke authorized facility for repair.
