Franke F3D3SP Service Manual

F3D3 Series Service Manual Parts Replacement / Section 2.24
Questions? Call Franke Technical Support Group For Your Area. Copyright  2012 Franke, Inc. All rights reserved.

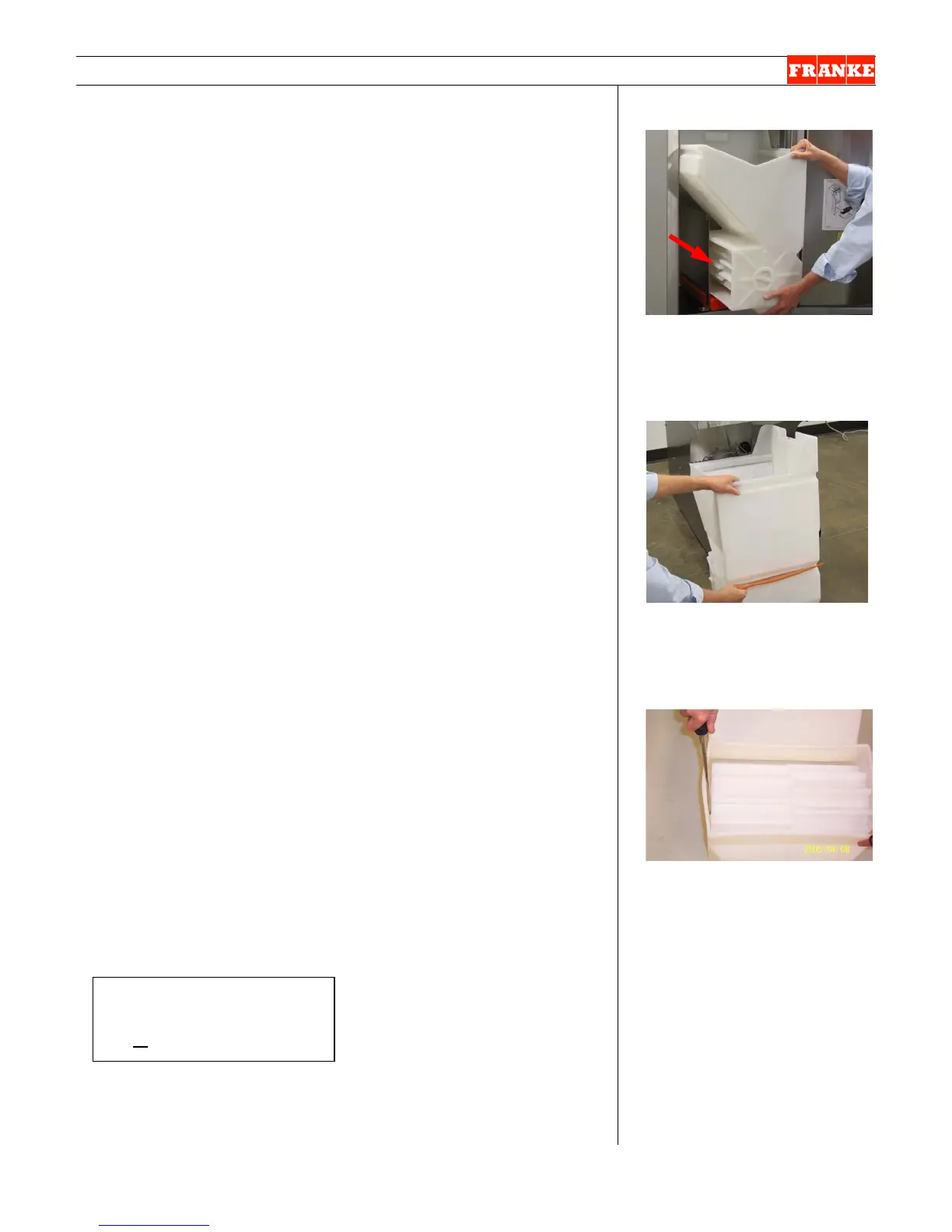

2.24 Hopper Rotor Replacement
[See Section 1.5 for Part Number]
1) The Dispenser should be OFF and the freezer
compartment fully defrosted before proceeding.
2) Open freezer door and remove the Hopper.
3) Remove the orange rubber deflector (baffle) from slot cut
in right side of hopper.
4) Place hopper on its side, with the bottom rectangular
opening for the rotor facing up.
5) Inspect rotor for damage or excessive wear. If the rotor
does not turn easily by hand, it may need to be replaced.
6) The rotor front can be identified by the manual rotor
handle molded into the rotation axle. The back support
axle doesn’t have this handle.
7) Remove the old rotor by gently prying out the plastic
Hopper side closest to the manual rotation handle. When
that handle clears the hole in the Hopper, pry out the
rear side of hopper so that hub clears that hole. NOTE:
the hopper plastic is thick and rigid. Take your time to
avoid damaging the hopper.
8) Pull up and carefully remove the rotor from the hopper.
9) Install the new Rotor by reversing this process. Make
sure the rotor end with the manual rotation handle faces
the front (with V-cut) of the Fry Hopper.
10) Test the replacement Rotor by:
11) Manually turn or spin the Rotor Handle. The rotor should
revolve easily, with little resistance.
12) Replace rubber deflector in cutout in right side of hopper.
13) Replace the Hopper in the freezer compartment and
return the unit to service.
[Photo 1] F3D3S shown
A finned rotor is mounted inside
Hopper to gently move fries to
the dispensing area.
[Photo 2]
Remove the orange rubber
deflector from right side of
hopper.
[Photo 3] Left side of hopper
When removing the Rotor, use a
large screwdriver or flat pry bar
to gently lever the sides of the
Hopper enough to free the rotor
hubs.
Rev. 1 6/2012

Tools Required:
 Large Flat Screwdriver
or small flat pry bar
