2.19 Control Relay Replacement
[See Section 1.5 for Part Number]
1) Unlock front casters and roll the unit out to allow access
to rear service panel.
2) Disconnect power at outlet. [Pull plug.]
3) Remove Phillips screws securing rear service access
panel. Lift panel up and out.
4) Locate the DIN rail mounted 24-volt power supply and
terminal block. The Control Relay mounts just right of the
terminal block.
5) Use pliers to remove the wire terminals:
F3D3/S F3D3P/S
Models Models
4-wires 6-wires
(2 capped)
6) Release relay by pushing up on bottom, then tilt top off
upper DIN rail flange.
7) Remove new Control Relay from any packaging.
8) Orient relay with four terminals on top, position rear slot
over upper edge of DIN rail and snap it down and into
place. Make sure it is firmly seated.
9) Reconnect the four wire terminals per terminal positions
described in Step 5 and shown in inset photo at right:
10) Plug in unit power cord to power supply.
Test the new Control Relay by:
11) Switch ON Main Power Switch.
12) After a short time you should hear the compressor come
on to begin freezer compartment chilling.
13) Replace and secure rear service access panel, return
Dispenser to normal operating position and lock front
casters.
Rev. 1 6/2012

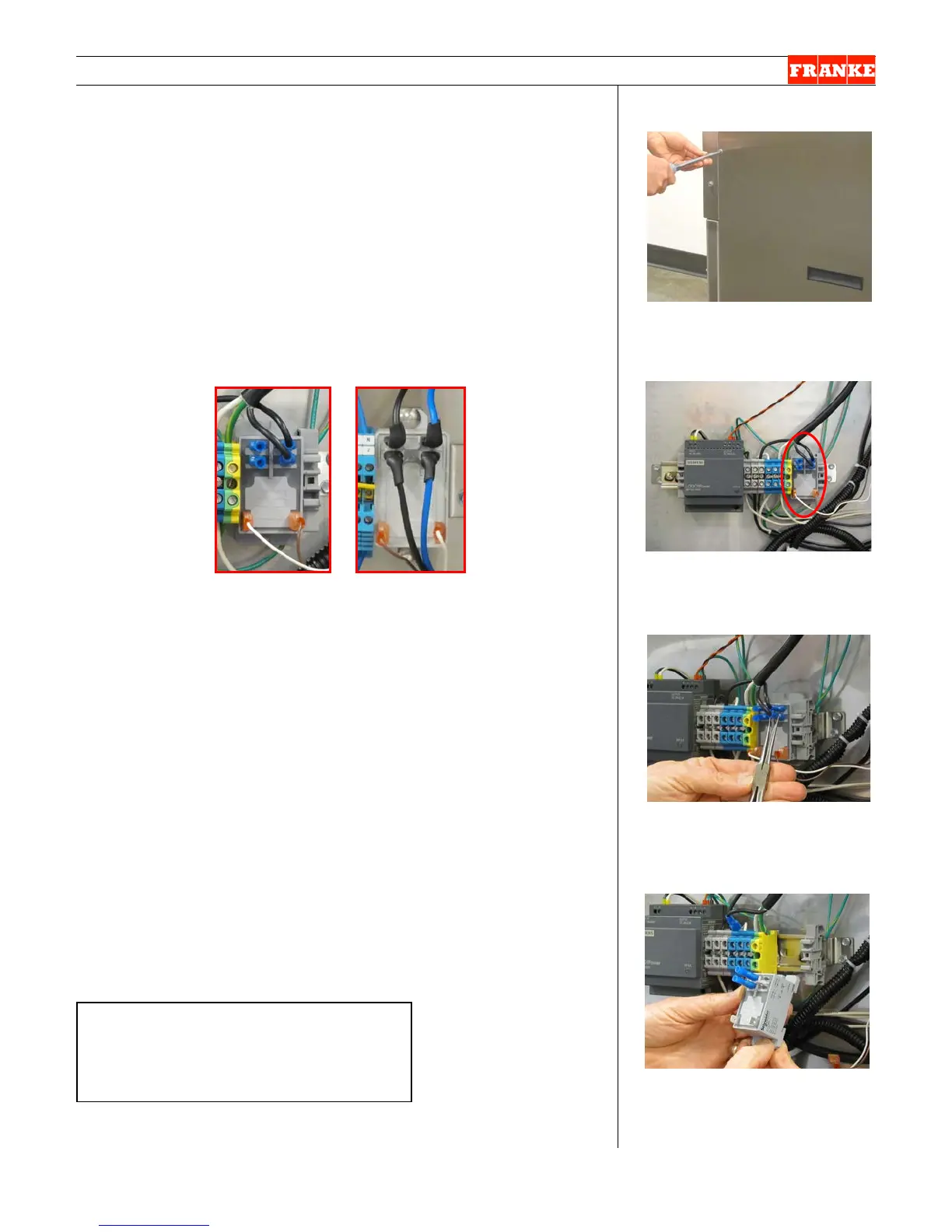

[Photo 1]
Remove four screws & lift off
rear service access panel.
[Photo 2] A F3D3S Model
Relay is mounted right of DIN
rail-mounted terminal block.
[Photo 3
]
Remove wire terminals from
Control Relay.
[Photo 4]
Push up on bottom of relay,
angle top off upper rail flange to
release.
Medium Phillips screwdriver
6-7 mm [1/4”] flat blade screwdriver
Needle nose pliers
To Next Page
