2.4 Door Lift Slide Replacement…Continued
[See Section 1.5 for Part Number]
21) Reposition the sub-assembly back though the cabinet
penetrations.
22) Align the assembly and reinstall the four mounting bolts.
23) Reinstall hole covers, gaskets, fries bucket and doors on
door shafts.
24) Install Door Open Motor assembly starting with the two
bottom [shorter] mounting screws. Remount Door Open
Sensor & bracket using the two upper [longer] motor
mount screws.
25) Reconnect the two motor electric power connections:
[Red = positive; Black = negative].
26) Replace plastic Door Cam Link, with Stop Screw to the
right side and attach retainer clip to right side Door
Rotation Block pin.
28) From rear of unit – extend spring to the Door Rotation
Block Pin and slide end/bushing over the pin. Insert
cotter pin through hole in pin and bend cotter pin legs
around pin. Make sure bronze bushing remains in place.
29) Position Door Lift Shaft in the Slide Bearing Assembly.
30) Reinstall the Door Lift Motor Assembly. Make sure the
gear box output shaft fits into the slot in the lift cam.
31) Replace and tighten the four motor mounting screws
using your 4 mm [5/32”] Allen wrench.
32) IMPORTANT - Check the gap of the load cell [weighs
basket contents] under the motor by inserting a .50 mm
[.020”] feeler or gap gauge between set post on left
[open] side of load cell. [See Photo 6]
33) If load cell gap is larger or smaller than .50 mm/.020”,
adjust gap set nut located below left side of load cell.
34) Attach power service wires to Door Lift Motor. [Red to
positive, Black to negative]
Test the replacement Door Slide Lift as follows:
27) Plug in unit power cord to power supply.
28) Turn on main power switch and press LANE-POWER
touch pad on front control overlay.
29) If word: Ready is in display and basket graphic lights are
on, position empty fry basket under hopper and press
against basket bumper switch to initiate fry loading. If
Lane properly dispenses fries, the Automation Assembly
is working properly.
30) Re-hang and secure rear service access panel and
return Dispenser to normal operating location.

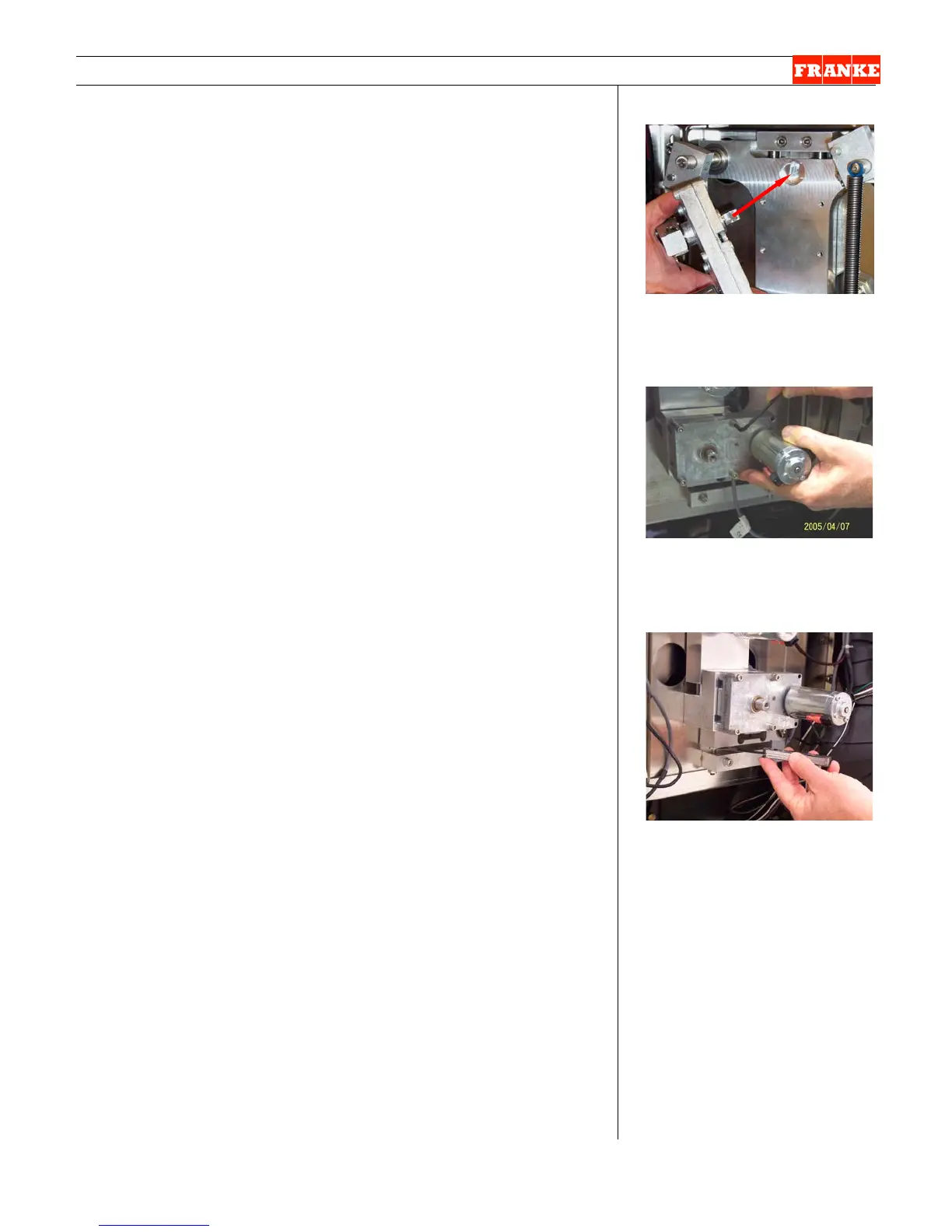

[Photo 4] For Assembly:
Ensure door lift motor drive
aligns with the slot in the slide
plate counter bore.
[Photo 5]
Insert & tighten the four (door lift)
motor mounting screws.
[Photo 6]
After replacing this motor, check
the gap on the load cell using a
.50 mm [.020] feeler or gap
gauge.
