9.0 – Servicing – Removal and Replacement
This section will cover the details of how to remove, refit and replace all serviceable parts to the
Hoist. The step by step process is to be followed in sequence to perform a successful service on the
Hoist. Unless stated otherwise, all images refer to a Freeway S180.
NOTE: Before carrying out any work on a Freeway S180 Hoists, remember to remove the charger
lead and remove any external power source.
Prior to any servicing the Emergency Stop Button on the Control Box must be activated to remove
any power to the product.
9.1 - Battery
This section will instruct the correct procedure on how to remove and replace the Battery.
Removal

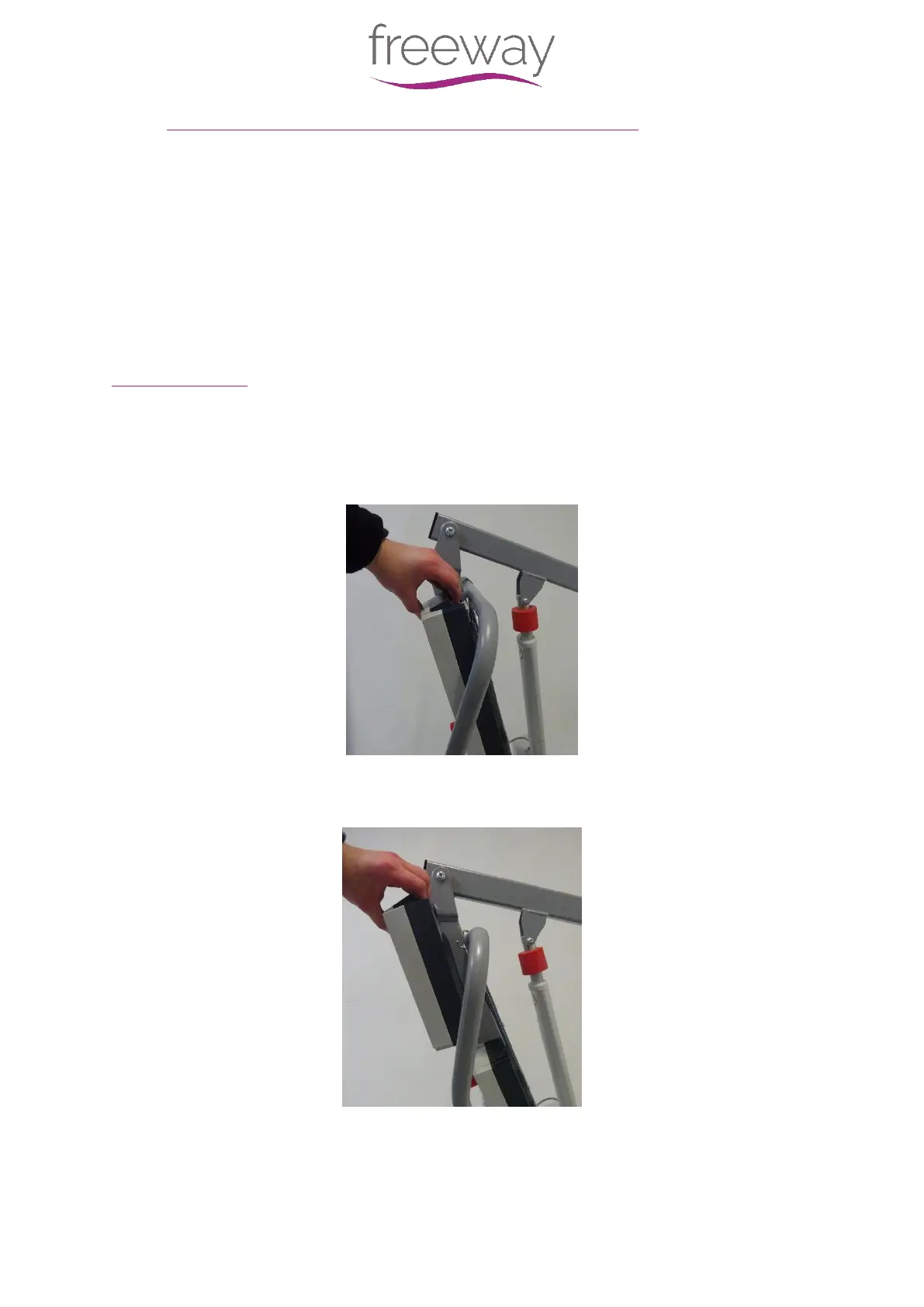

Step 1 – Grab the Battery in the same fashion as shown in the image below.
Step 2 – Press the leaver on the battery at the top end of the battery and lift away from its
location.
Refitting / Replacement
Step 3 – Refitting is a reversal of the removal process noting the following points:
