Refitting / Replacement
Step 4 - Refitting is a reversal of the removal process noting the following point:
A) Ensure the Nuts are tight and secure the Carry Bar, do not over tighten as this will
bend the framework and will affect the pivoting function of the Carry Bar.
B) Ensure the Circlips are fitted correctly into the Pins grove and that a nylon washer is
placed either side.
C) Apply Loctite 243 to the thread of the Pin.
9.8 – Leg Actuator Cover
Within this section it will explain the correct procedure on removing and reinstalling the Leg
Actuator Cover for servicing procedures or replacement.
Removal
Step 1 – Follow steps 1-4 from section 9.12 (Base Removal) to detach the Mast and Base
correctly.
Step 2 - Place the Base on its side for easier service – Gently rest the Base on its side to avoid
damage such as paint scratching.

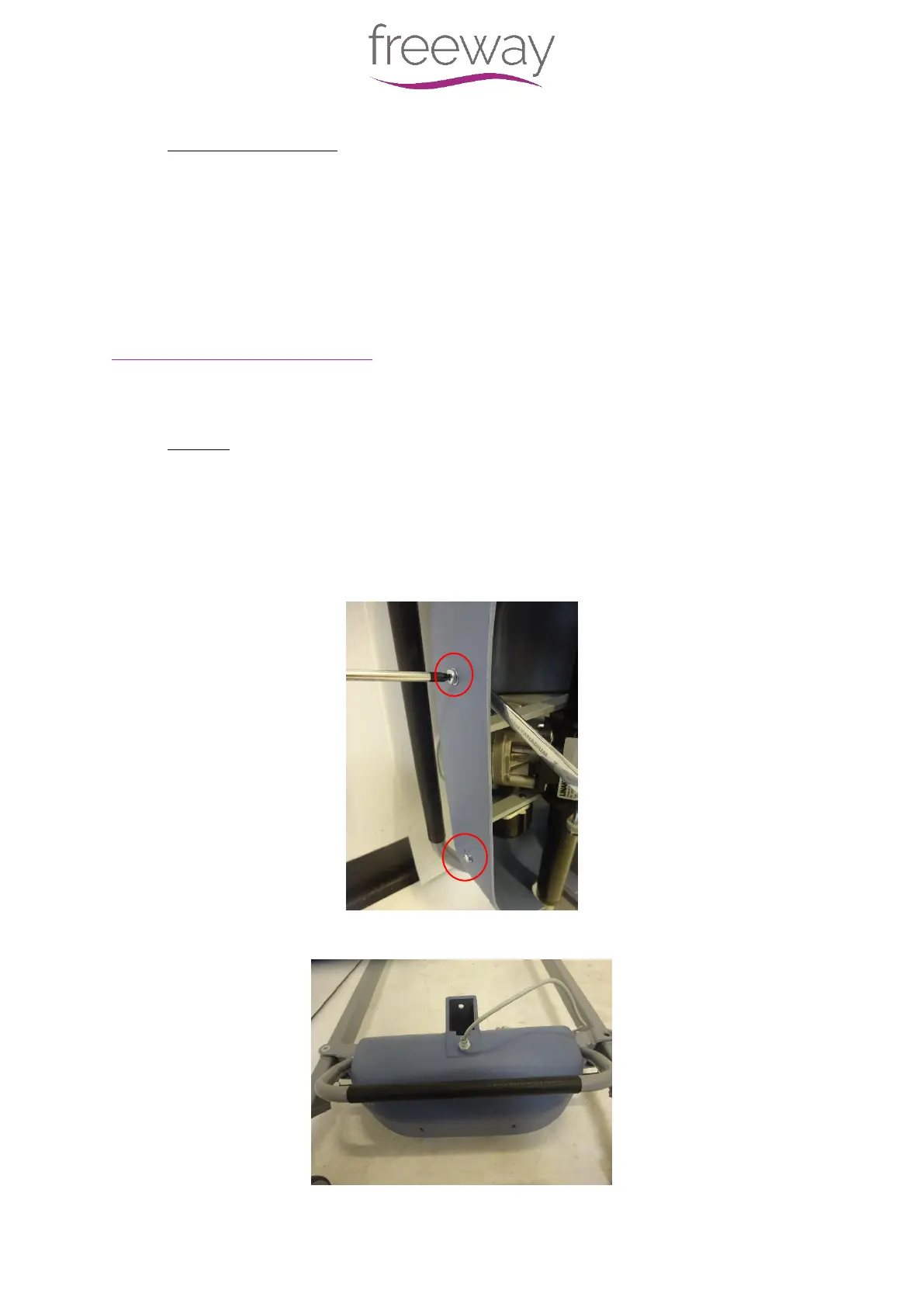

Step 3 – Using a positive head screwdriver and a 7mm Spanner, remove the two screws, nuts
and washers shown to release the Leg Actuator Cover.
Step 4 – Place the Base back onto its castors.
To Next Page
