995367 – Revision A Page 16 of 39

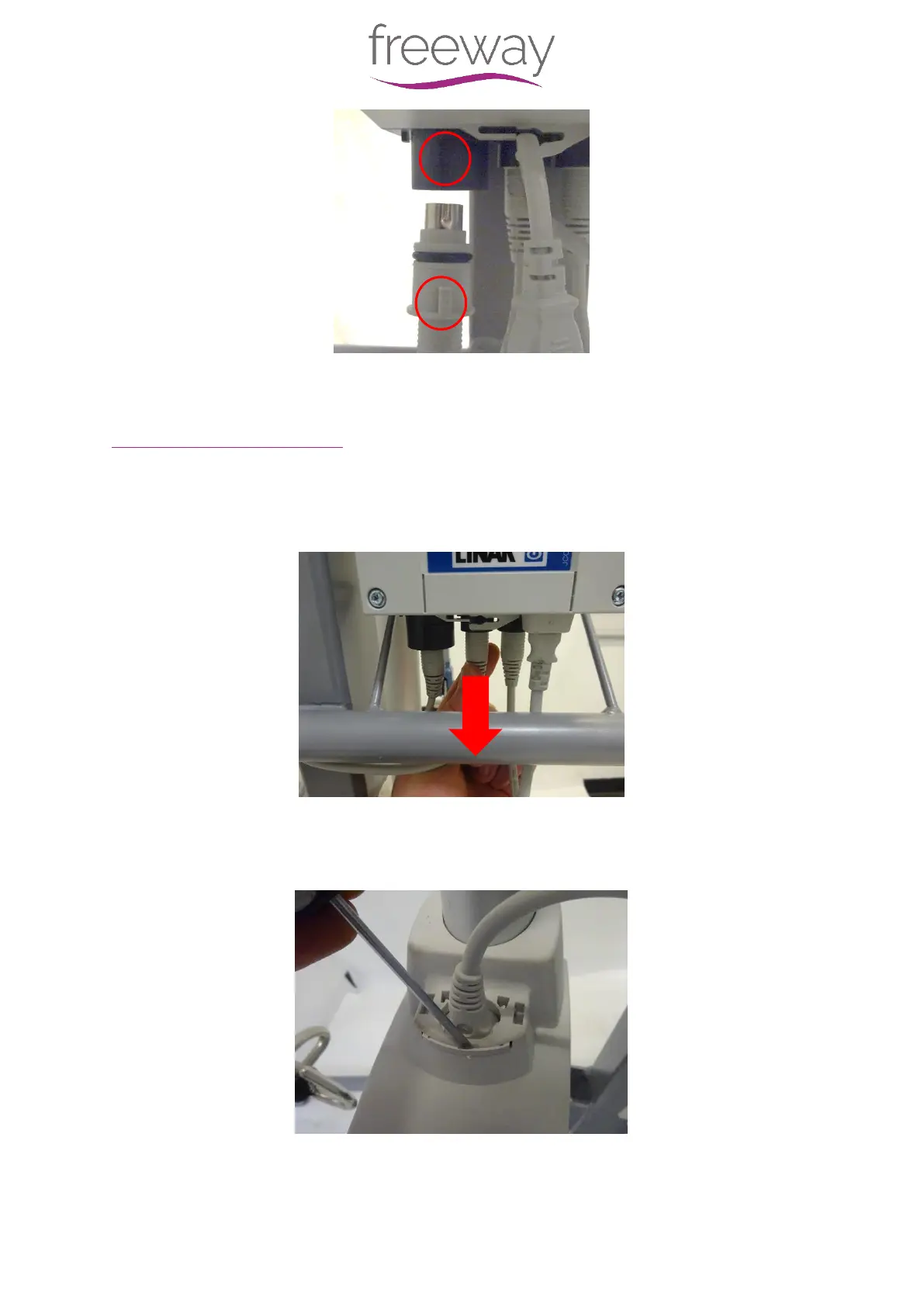

9.2.2 – Cable – Lift Actuator
Removal
Step 1 – Remove the Jack End of the Cable which ports the Control Box by pulling
downward. (This is the middle Control Box Port as shown in the image)
Step 2 – Release the cable from the Actuator by lifting the locking device upward, it is
recommended a flat head screwdriver is used.
Step 3 – Pull the cable outward away from the Actuator to remove.
