995367 – Revision A Page 38 of 39

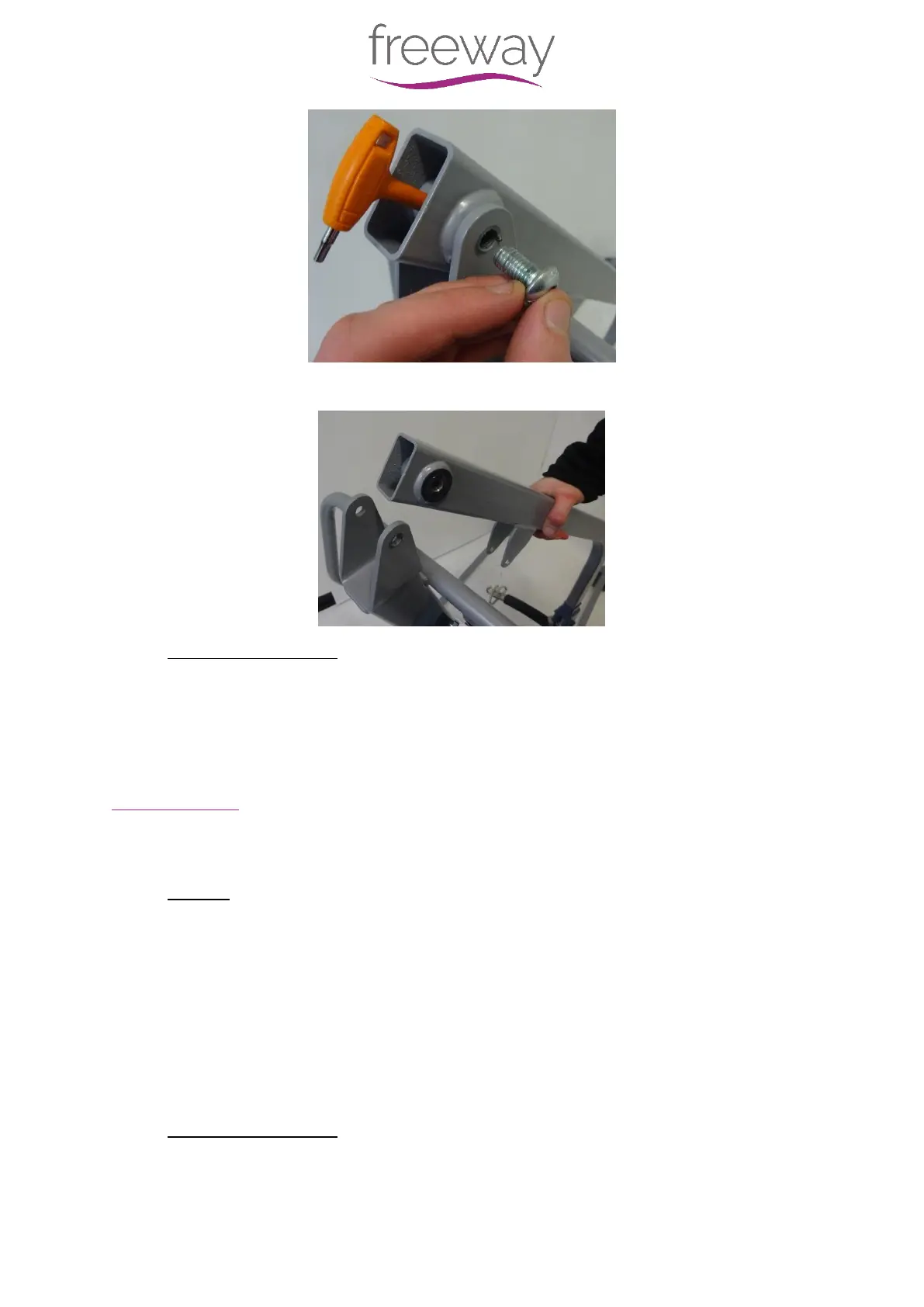

Step 8 – The Boom can be removed from the Mast.
Refitting / Replacement
Step 9 - Refitting is a reversal of the removal process noting the following point:
A) Ensure when tightening the Boom to the Mast the Boom is able to move freely along
with no to little play between the two mating parts.
B) Apply Loctite 243 to the bolts when refitting.
9.14 – Mast
Within this section it will explain the correct procedure on removing and reinstalling the
Mast for servicing procedures or replacement.
Removal
Step 1 – Remove Battery from the Hoist. (Refer to section 9.1)
Step 2 – Remove all the Cabling/leads from the Control Box. (Refer to section 9.2)
Step 3 – Remove the Control Box from the Hoist. (Refer to section 9.3)
Step 4 – Remove the Lift Actuator from the Hoist. (Refer to section 9.5)
Step 5 - Remove the Boom from the Hoist. (Refer to section 9.13) – The Carry Bar will not
need to be removed when following section 9.13.
Step 5 – Remove the Base Assembly from the Hoist (Refer to section 9.12) – The Leg
Actuator Cover, Leg Actuator and Legs do not need to be removed while following section
9.12.
Refitting / Replacement
Step 6 - Refitting is a reversal of the removal process.
