995367 – Revision A Page 18 of 39
Step 2 – To detach the Leg Actuator Cable from the Base. See section 9.8 (Leg Actuator
Cover Removal). These guidelines will also instruct on the Cable removal. As they are
removed through the same process.
Refitting / Replacement
Step 5 - Refitting is a reversal of the removal process noting the following points:
A) See section 9.8 (Leg Actuator Cover Removal) for correct refitting and replacement.
9.2.4 – Cable – Charger
Removal
Step 1 – Where Applicable, turn the charger off at the wall plug and remove.

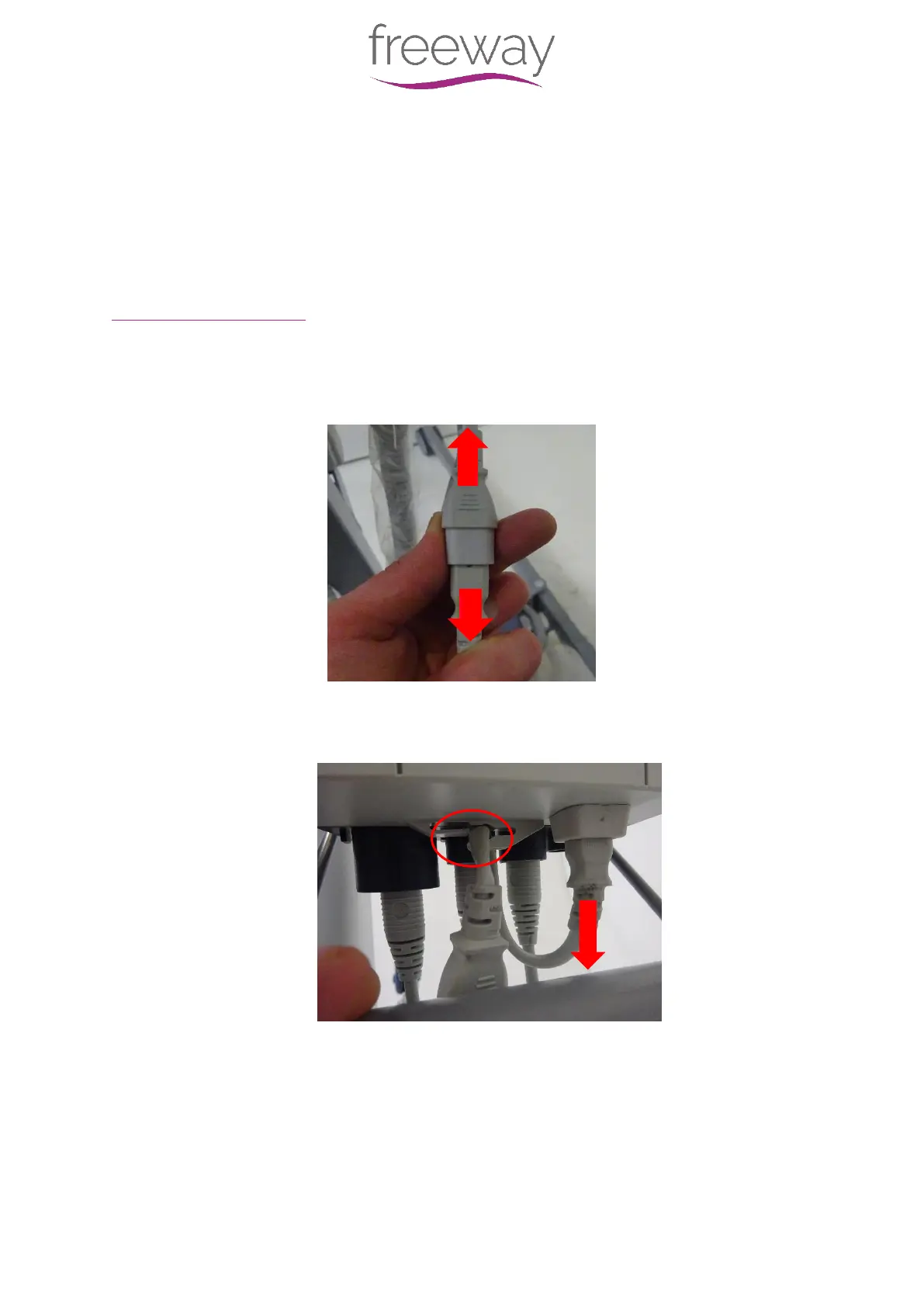

Step 2 – Detach the Charger lead from the Snap Lead by pulling them apart as shown.
Step 3 – Detach the Snap Lead from its latch circled in the image below and pull the lead
connecter from the Control Box as arrowed.
Step 4 – If the Plug has not already been removed from the wall socket, detach the plug
from its fixing to the Hoist.
Refitting / Replacement
Step 5 - Refitting is a reversal of the removal process noting the following points:
