9.7 – Carry Bar
Within this section it will explain the correct procedure on removing and reinstalling the
Carry Bar for servicing procedures or replacement.

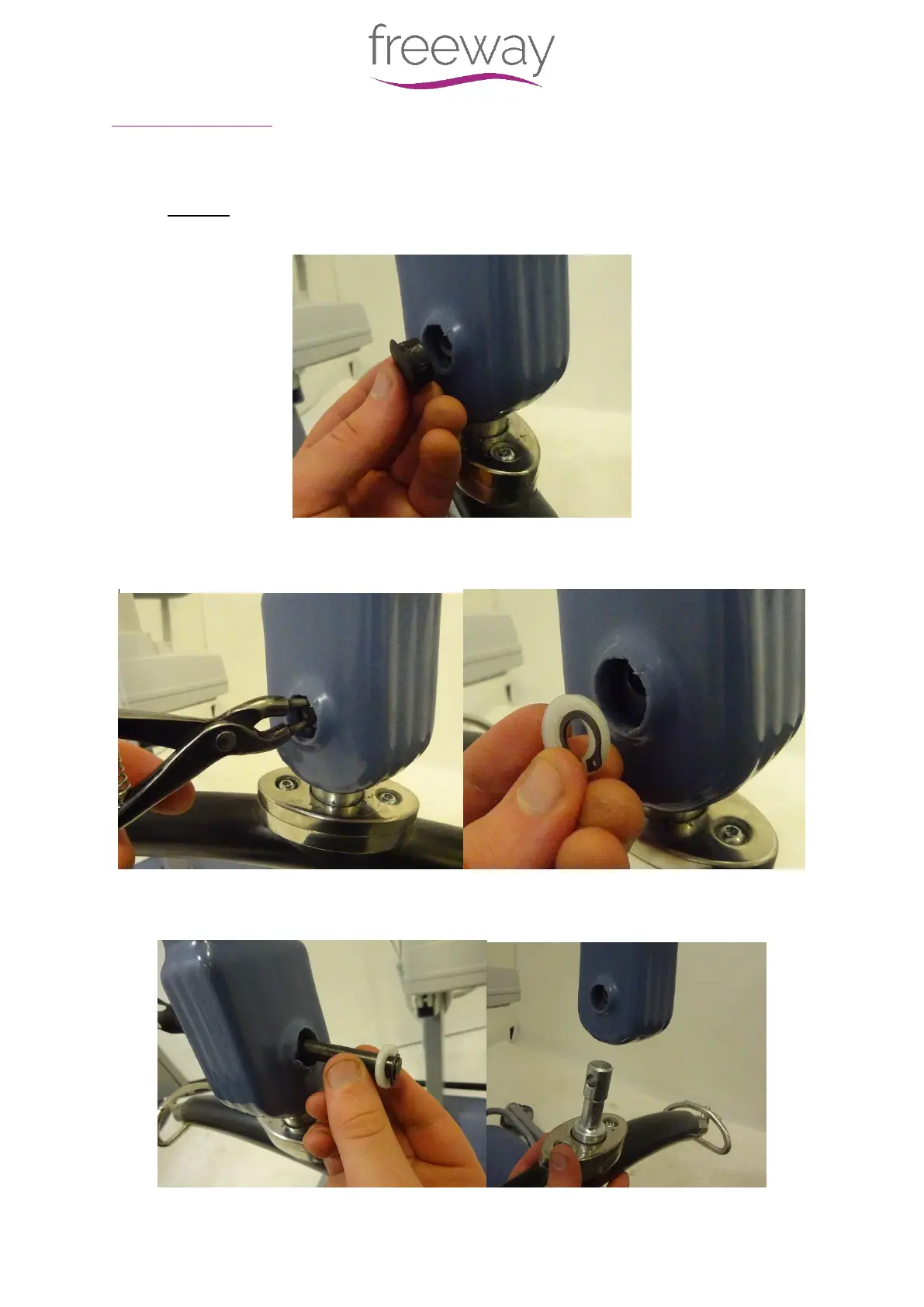

Removal
Step 1 – Remove the two Black Caps from the Carry Bar Bumper Cover.
Step 2 – Using circlip pliers, remove the circlip from one end of the Carry Bar retaining pin.
Ensure to grab the nylon washer.
Step 3 – Pull the Pin out from the Boom to release the Carry Bar.
